Home >> Chevy Truck >> 2006 >> Express 3500 V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> Heating, Ventilation and Air Conditioning

Heating, Ventilation and Air Conditioning

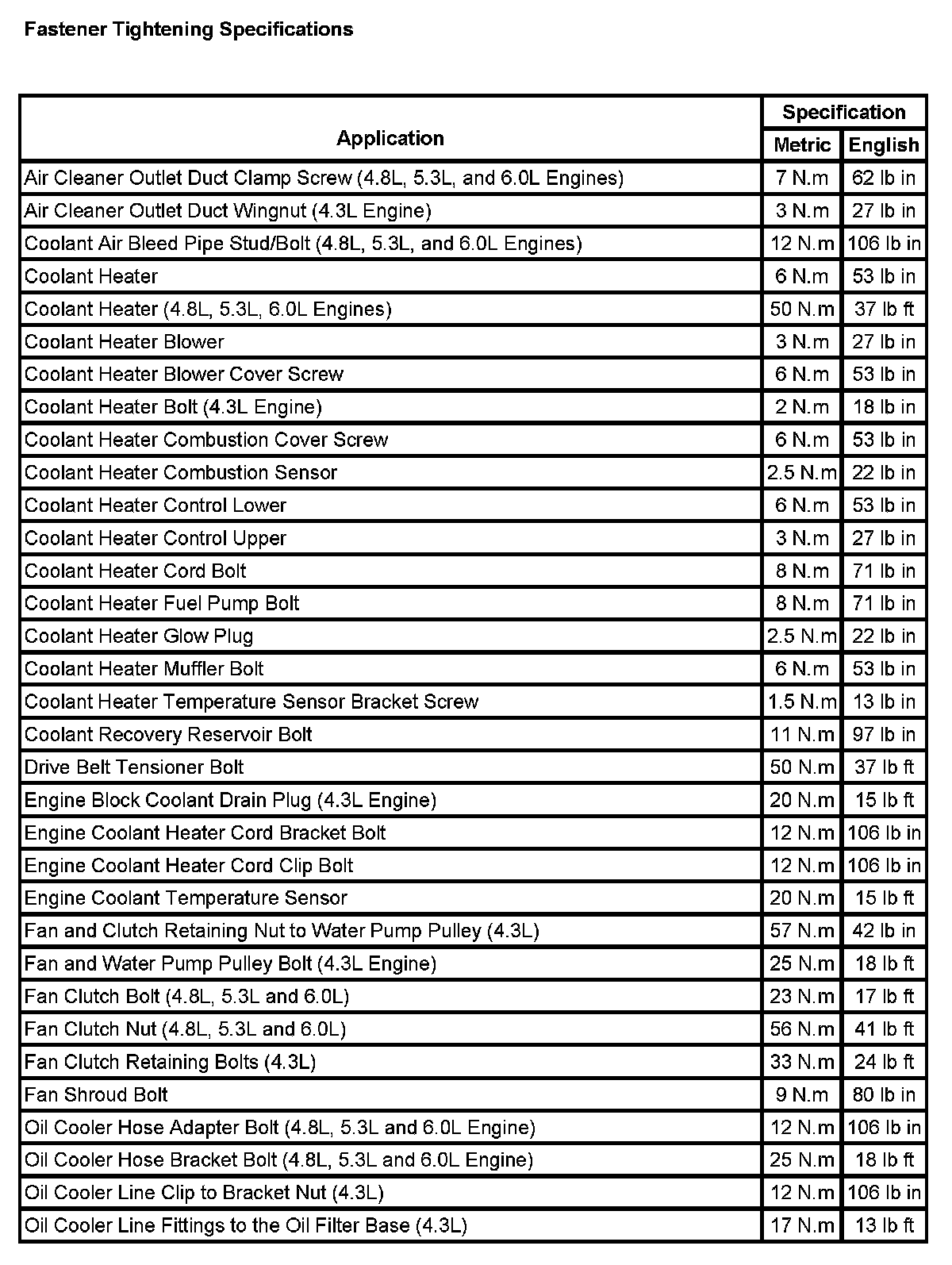

Fastener Tightening Specifications (Part 1):

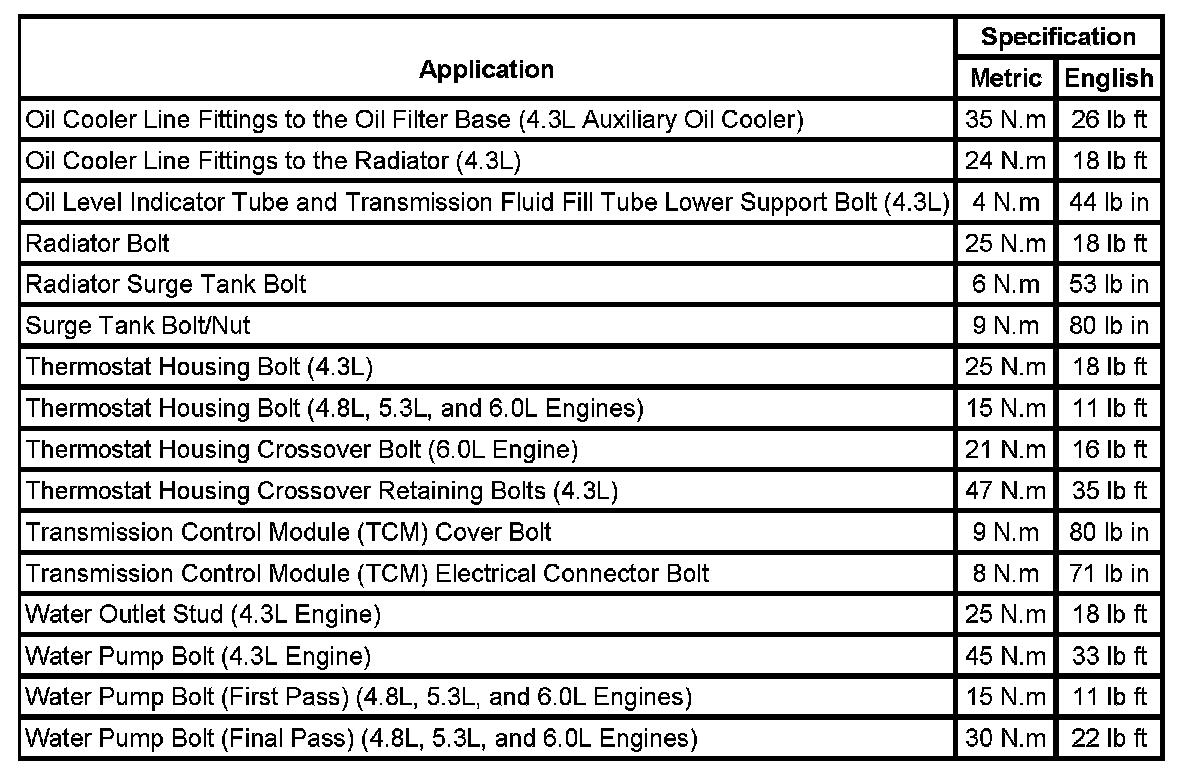

Fastener Tightening Specifications (Part 2):
