Home >> Chevy Truck >> 2006 >> Express 3500 V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4L60-E/4L65-E/4L70-E Automatic Transmission >> Fastener Tightening Specifications (M33 Only)

Fastener Tightening Specifications (M33 Only)

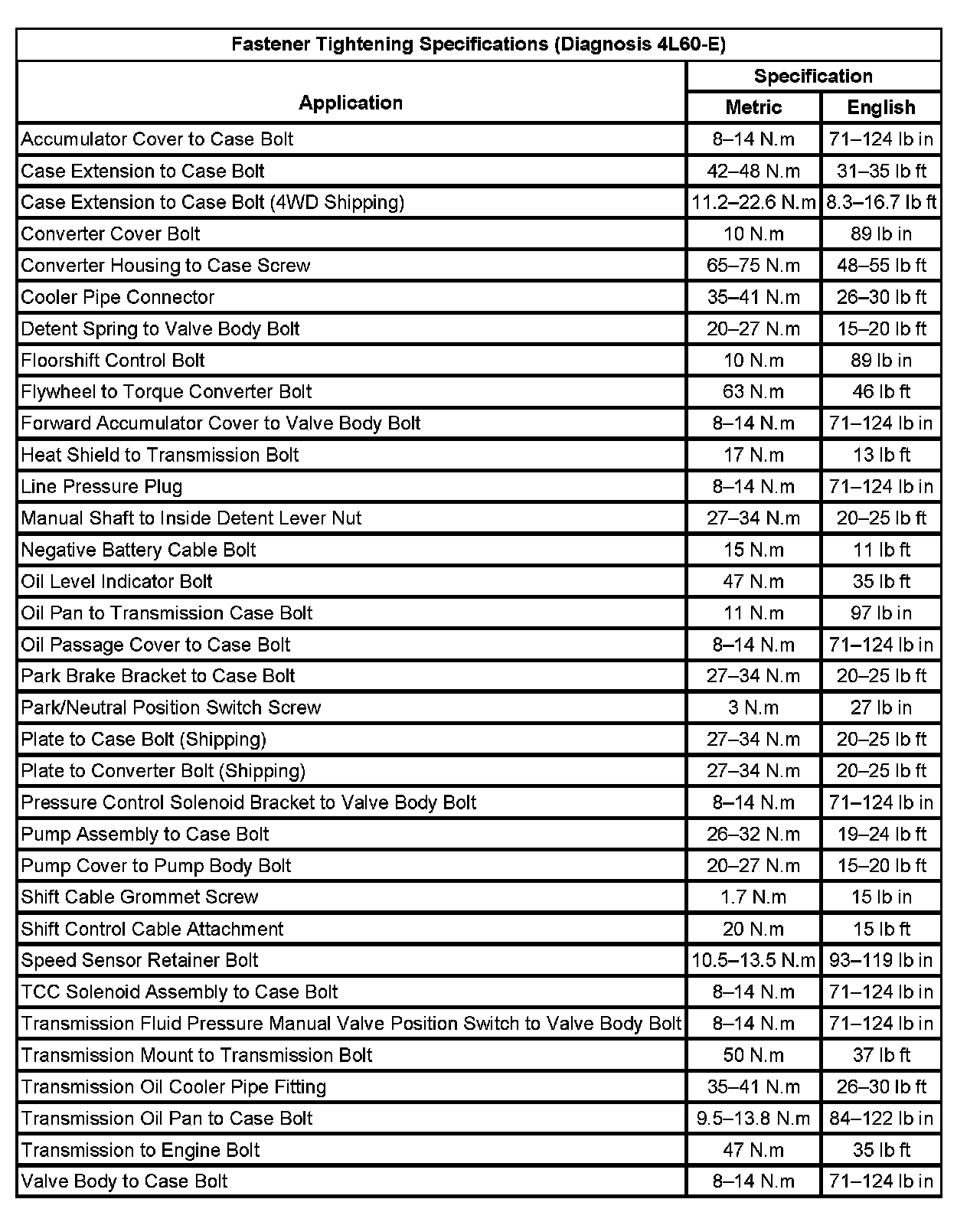

Fastener Tightening Specifications (4L60-E):
