Wheel Speed Sensor: Locations

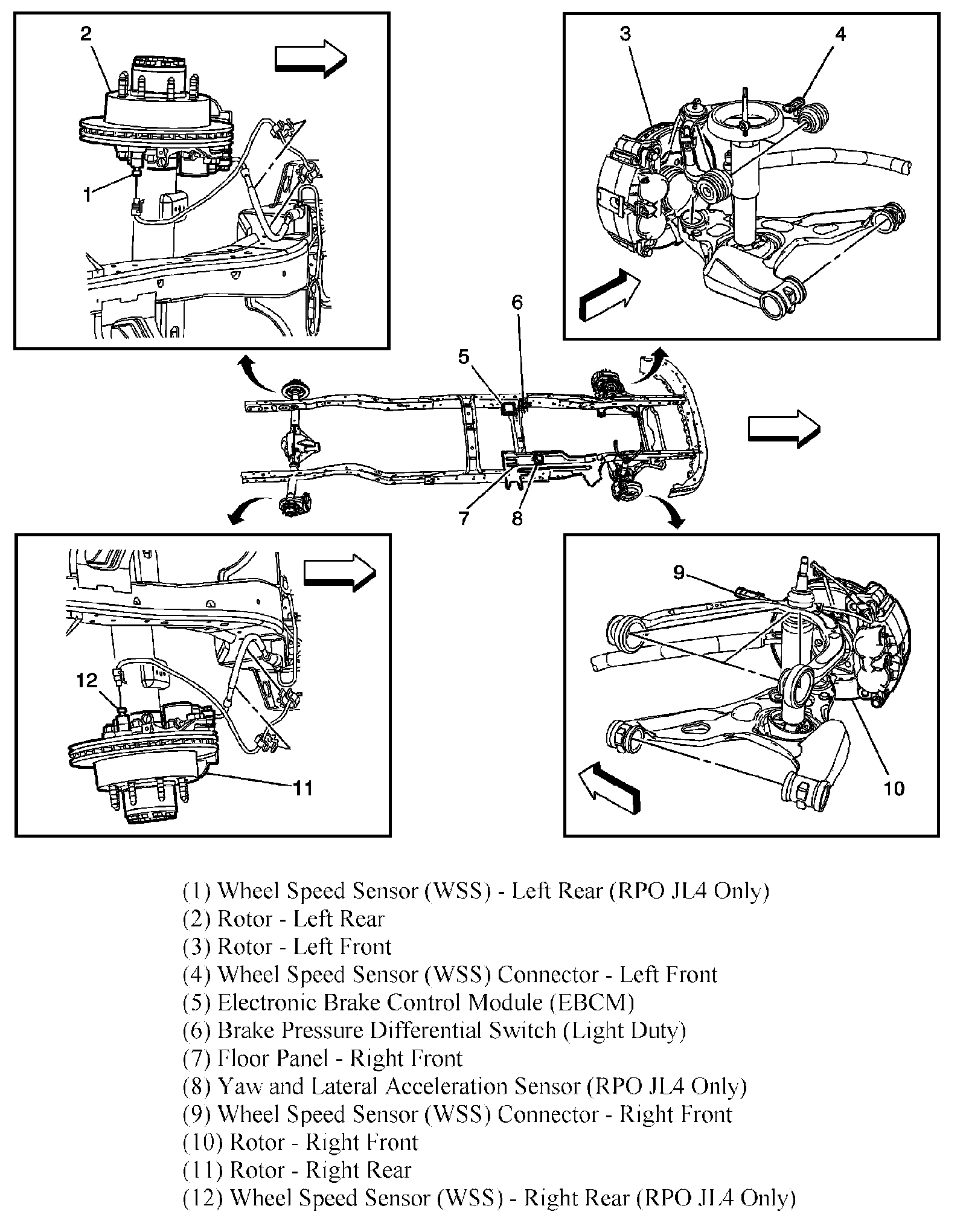

FRAME AND UNDERBODY






1. Wheel Speed Sensor (WSS) - Left Rear (RPO JL4 Only)
2. Rotor - Left Rear
3. Rotor - Left Front
4. Wheel Speed Sensor (WSS) Connector - Left Front
5. Electronic Brake Control Module (EBCM)
6. Brake Pressure Differential Switch (Light Duty)
7. Floor Panel - Right Front
8. Yaw and Lateral Acceleration Sensor (RPO JL4 Only)
9. Wheel Speed Sensor (WSS) Connector - Right Front
10. Rotor - Right Front
11. Rotor - Right Rear
12. Wheel Speed Sensor (WSS) - Right Rear (RPO JL4 Only)

RPO JL4 - Active Brake Control
