Home >> Chevy Truck >> 2006 >> Express 3500 V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Seat Belt Indicator Circuit Malfunction - Passenger

Seat Belt Indicator Circuit Malfunction - Passenger

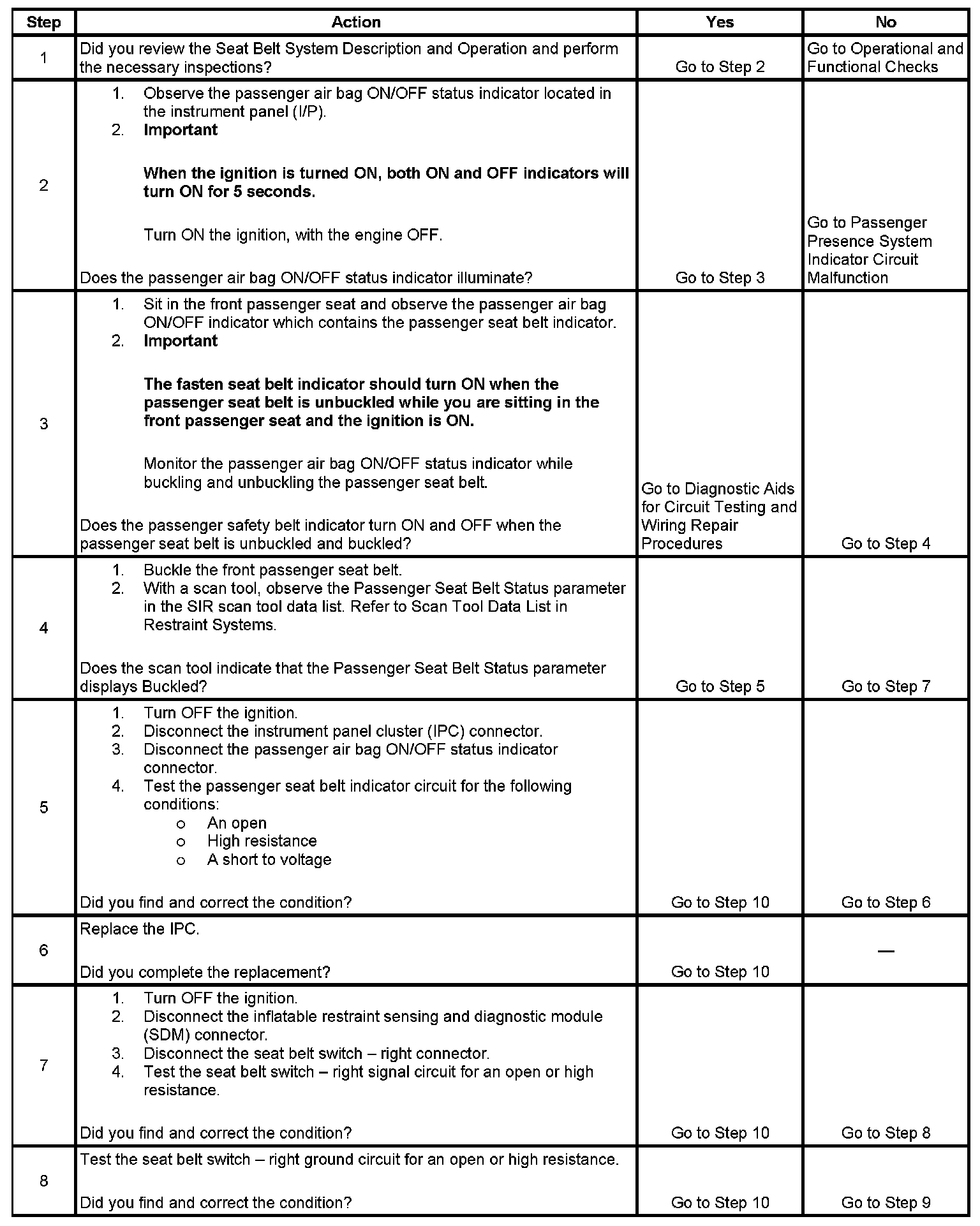

Step 1 - Step 8:

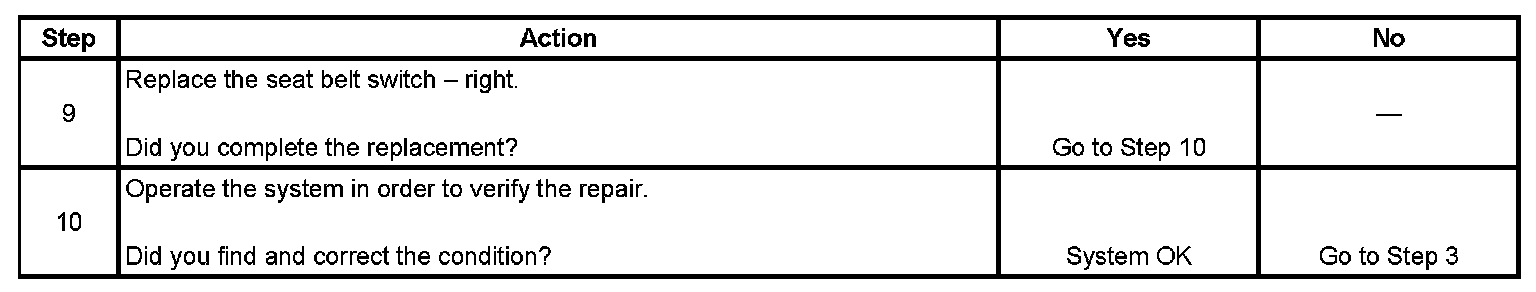

Step 9 - Step 10:
