No. 5 Left Rear

SEAT BELT RETRACTOR REPLACEMENT - NO. 5 LEFT REAR

REMOVAL PROCEDURE




1. Remove the rear corner garnish molding.

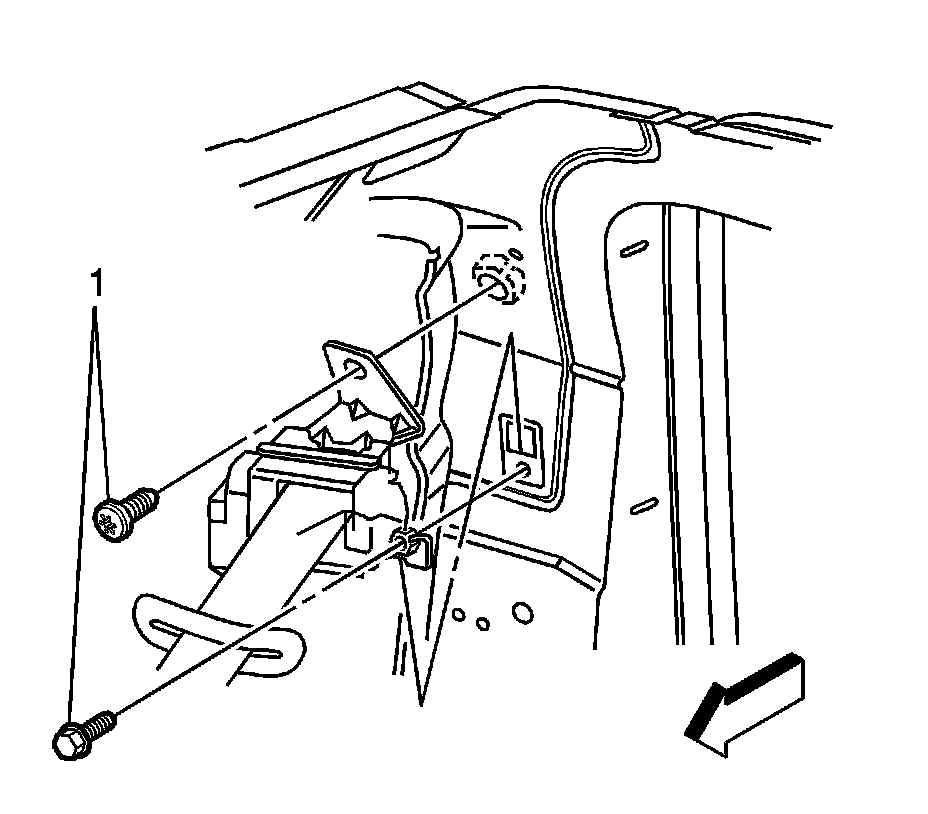

2. Remove the seat belt retractor bolts (1) from the seat belt retractor.
3. Remove the seat belt retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat belt retractor to the vehicle.
2. Install the seat belt retractor bolts (1) to the vehicle.

Tighten the seat belt retractor bolt to 52 N.m (38 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the rear corner garnish molding.
