No. 2 Right Rear

SEAT BELT RETRACTOR REPLACEMENT - NO. 2 RIGHT REAR

REMOVAL PROCEDURE




1. Remove the upper seat belt trim cover.
2. Remove the body side trim panel.

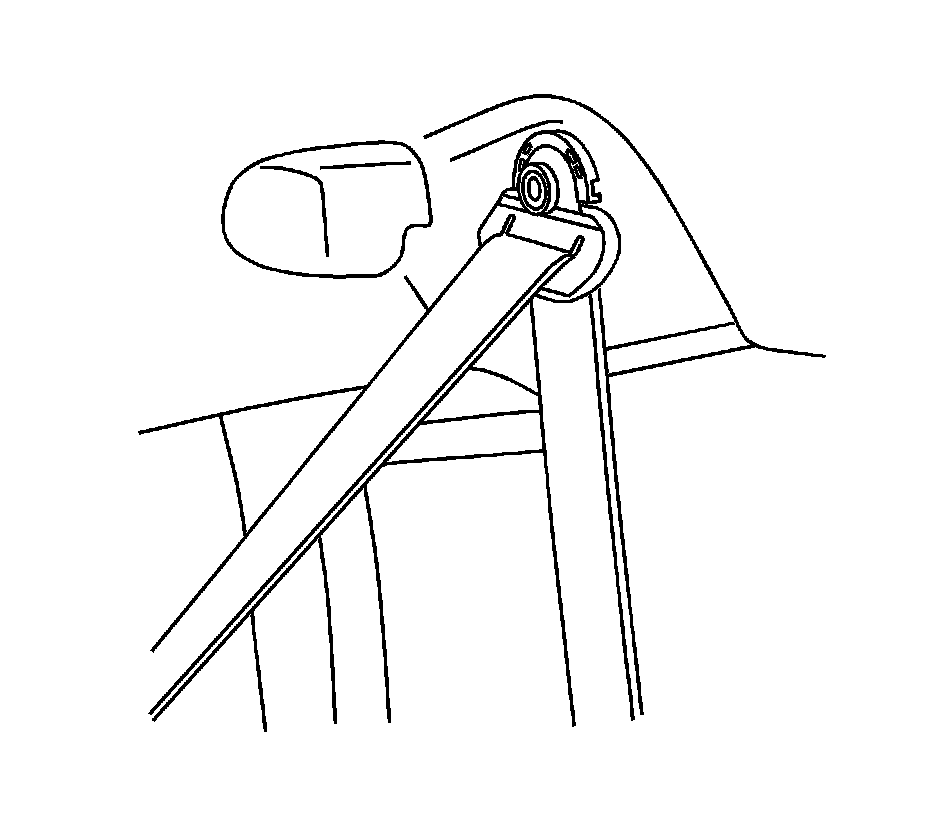

3. Remove the upper seat belt guide retaining bolt from the seat belt guide.
4. Remove the upper seat belt guide from the vehicle.




5. Remove the seat belt retractor retaining bolt from the vehicle.
6. Remove the seat belt retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat belt retractor to the vehicle.
2. Install the seat belt retractor retaining bolt to the vehicle.

Tighten the seat belt retractor retaining bolt to 52 N.m (38 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the seat belt guide to the vehicle.
4. Install the seat belt guide retaining bolt to the vehicle.

Tighten the seat belt guide retaining bolt to 52 N.m (38 lb ft).

5. Install the body side trim panel.




6. Install the upper seat belt trim cover.
