Seat Belt Height Adjuster: Service and Repair

SEAT BELT HEIGHT ADJUSTER REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Using a flat bladed tool, remove the shoulder/seat belt guide to the guide trim cover (1).




2. Remove the bolt retaining the shoulder/seat belt guide to the guide adjuster.
3. Remove the shoulder/seat belt guide from the guide adjuster.
4. Remove the front door upper pillar garnish molding.

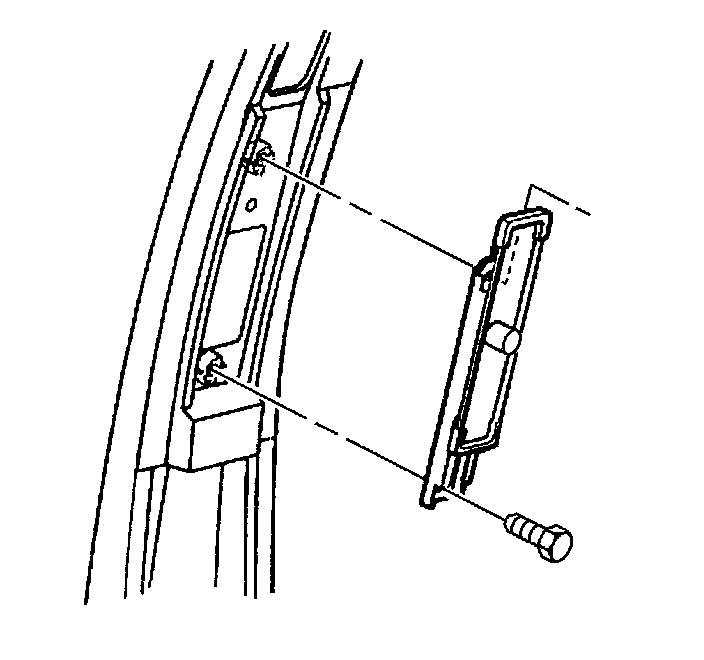

5. Remove the shoulder/seat belt guide adjuster retaining bolts from the pillar.
6. Remove the shoulder/seat belt guide adjuster from the vehicle.

INSTALLATION PROCEDURE




1. Install the shoulder/seat belt guide adjuster to the vehicle.
2. Install the shoulder/seat belt guide adjuster retaining bolts to the pillar.

Tighten the shoulder/seat belt guide adjuster retaining bolts to 26 N.m (19 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the shoulder/seat belt guide to the guide adjuster.
4. Install the shoulder/seat belt guide retaining bolt to the guide adjuster.

Tighten the shoulder/seat belt guide retaining bolt to 52 N.m (38 lb ft).

5. Install the front door upper pillar garnish molding.




6. Install the shoulder/seat belt guide to the guide adjuster cover (1).
