4L80-E/4L85-E Automatic Transmission

Automatic Transmission Controls Diagrams (6.6L)

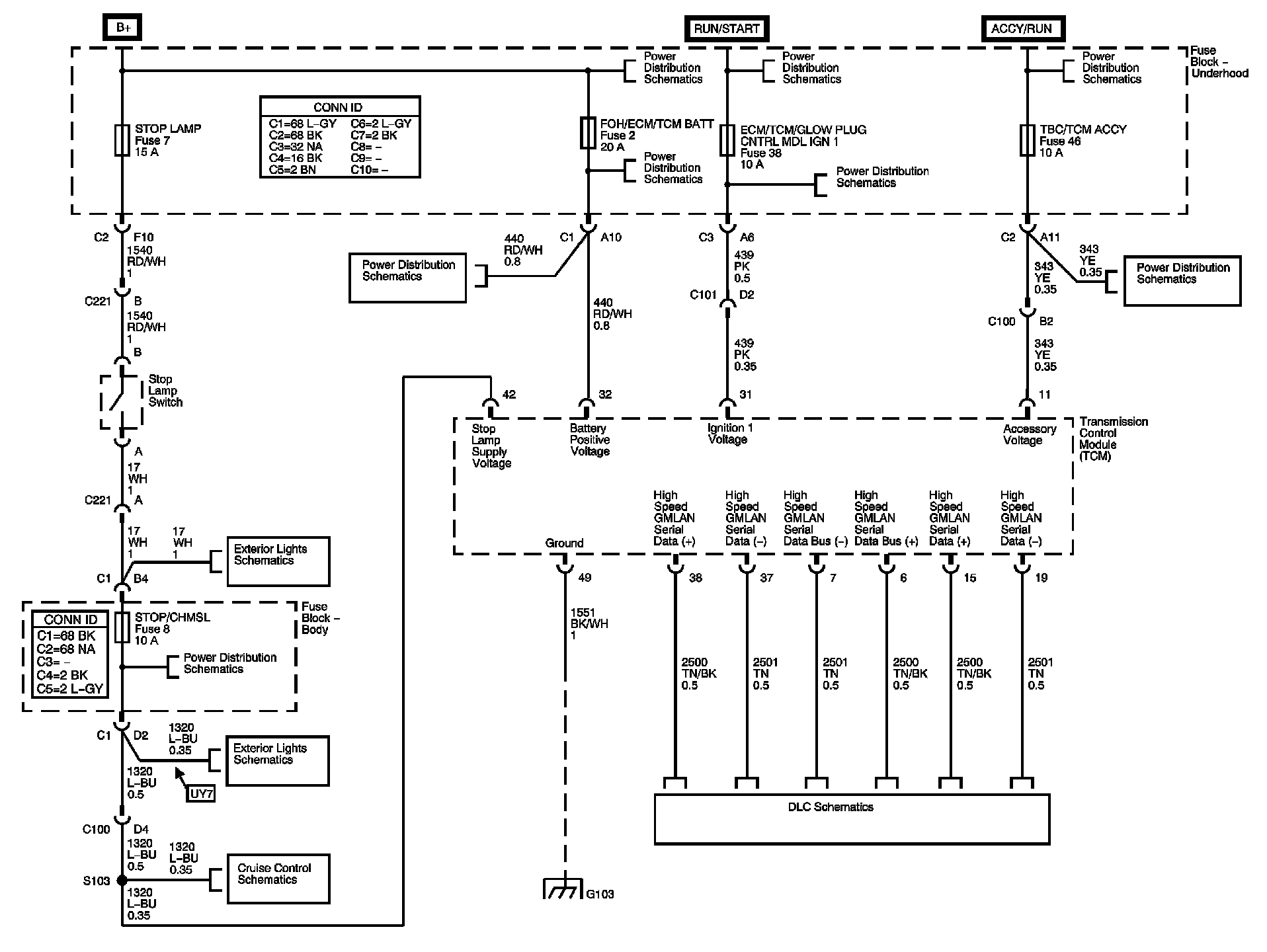

Automatic Transmission Controls Diagrams 1 (6.6L):

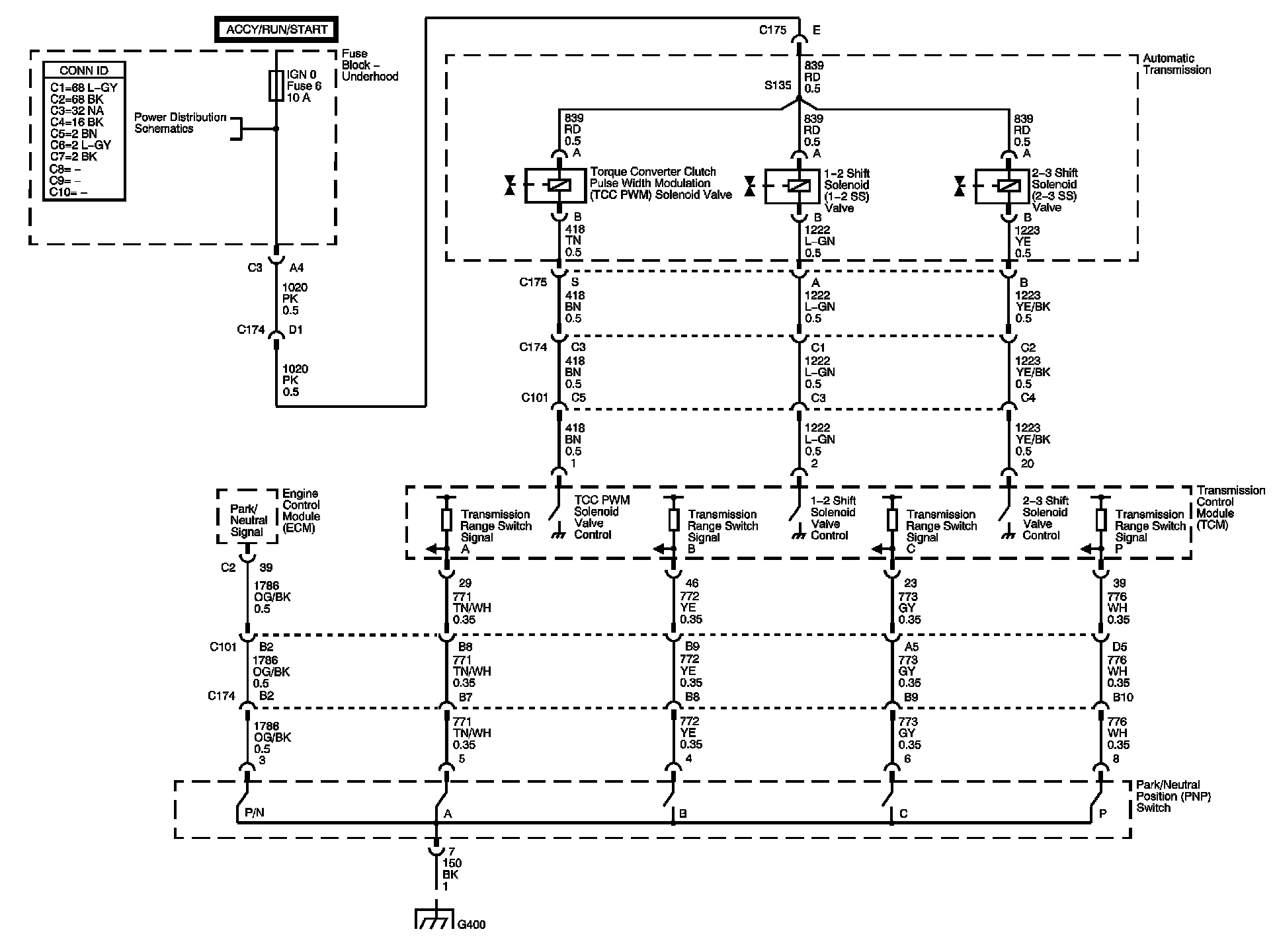

Automatic Transmission Controls Diagrams 2 (6.6L):

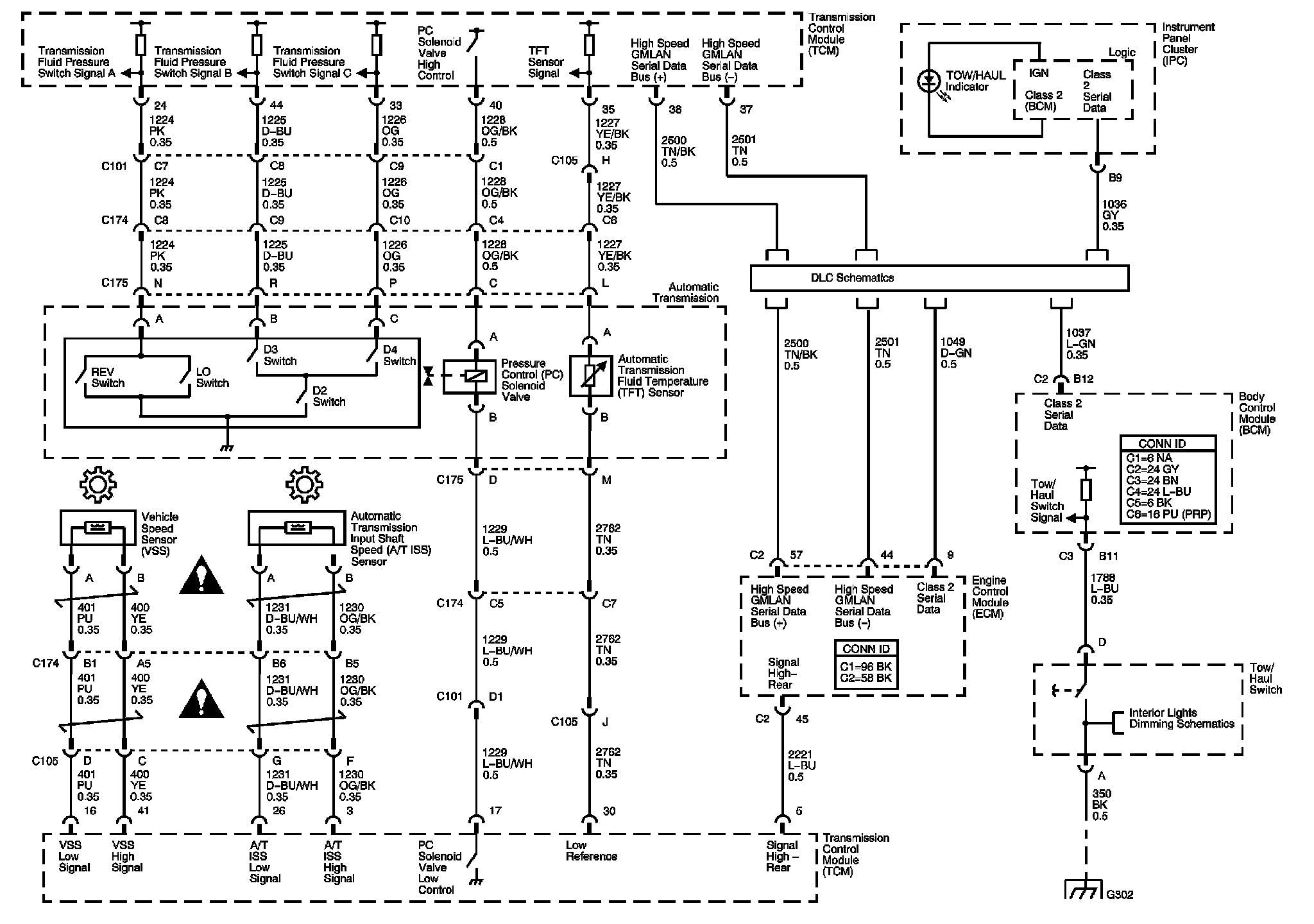

Automatic Transmission Controls Diagrams 3 (6.6L):

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
