Fuel Rail Fuel Feed Pipe Replacement - Right

FUEL RAIL FUEL FEED PIPE REPLACEMENT - RIGHT

REMOVAL PROCEDURE




1. Remove the engine cover.
2. Remove the engine wiring harness.
3. Remove the water outlet bolts.
4. Remove the water outlet to thermostat housing crossover.
5. Remove the exhaust gas recirculation (EGR) cooler tube.

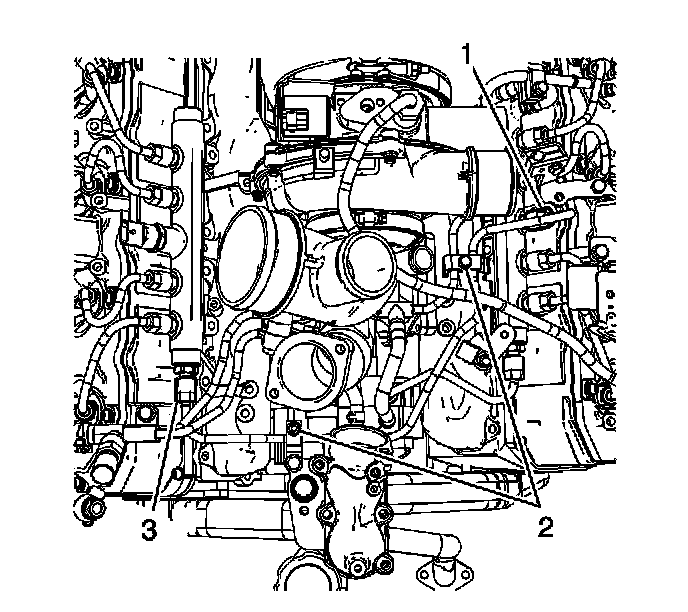

6. Disconnect the right fuel rail feed pipe fittings (1, 3).
7. Remove the fuel rail pipe clamp bolts (2).




8. Remove the right fuel rail feed pipe.

INSTALLATION PROCEDURE




1. Install the right fuel rail feed pipe.




2. Install the fuel rail pipe clamp bolts (2).

NOTE: Refer to Fastener Notice.

Tighten the bolts to 25 N.m (18 lb ft).

3. Connect the right fuel rail feed pipe fittings (1, 3).

Tighten the fittings to 41 N.m (30 lb ft).

4. Install the EGR cooler tube.
5. Install the water outlet to thermostat housing crossover.
6. Install the water outlet bolts.
7. Install the engine wiring harness.
8. Prime the fuel system. Refer to Fuel System Priming.
9. Start the engine. If the engine stalls, repeat the above step.
10. Once the engine starts, inspect for fuel leaks.
11. Install the engine cover.
