Fuel Rail Fuel Feed Pipe Replacement - Left

FUEL RAIL FUEL FEED PIPE REPLACEMENT - LEFT

REMOVAL PROCEDURE




1. Remove the engine cover.
2. Remove the water outlet bolts.
3. Remove the water outlet to thermostat housing crossover.
4. Reposition the return line hose clamps at the return line and injection pump.
5. Remove the hose (3) from the return line and injection pump.

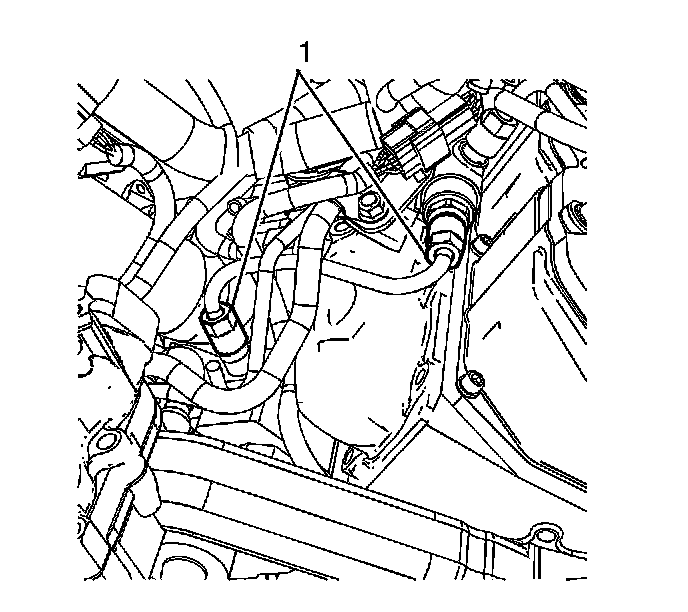

6. Disconnect the left fuel rail feed pipe fittings (1).




7. Remove the left fuel rail feed pipe.

INSTALLATION PROCEDURE




1. Install the left fuel rail feed pipe.




2. Connect the left fuel rail feed pipe fittings (1).

NOTE: Refer to Fastener Notice.

Tighten the fittings to 41 N.m (30 lb ft).




3. Install the hose (3) to the return line and injection pump.
4. Position the return line hose clamps at the return line and injection pump.
5. Install the water outlet to thermostat housing crossover.
6. Install the water outlet bolts.
7. Prime the fuel system. Refer to Fuel System Priming.
8. Start the engine. If the engine stalls, repeat the above step.
9. Install the engine cover.
10. Once the engine starts, inspect for fuel leaks.
