Home >> Chevy Truck >> 2006 >> Express 3500 V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Body Control Module (BCM)

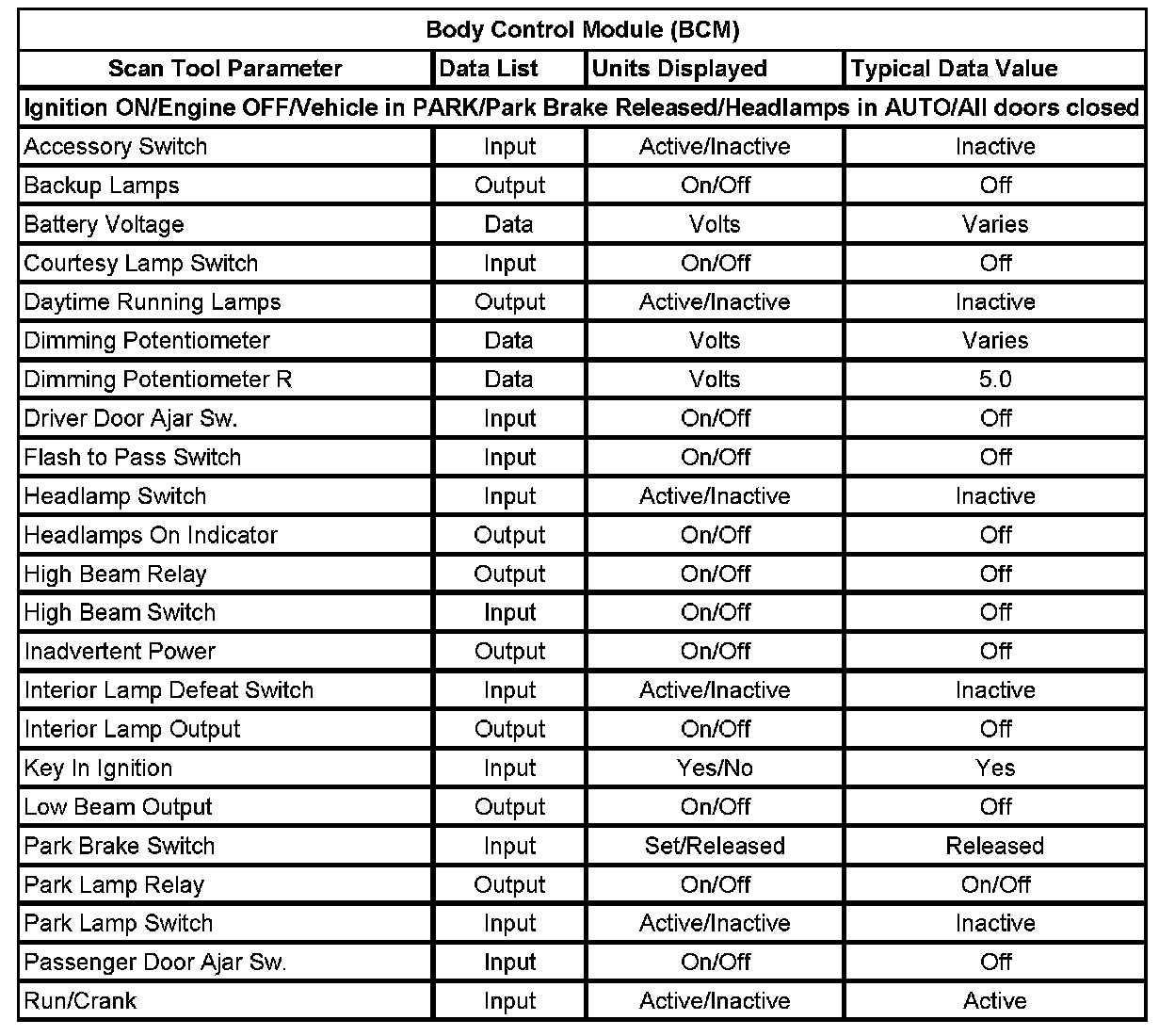

Body Control Module (BCM)

Body Conrol Module (BCM):
