Too Hot In Vehicle - Auxiliary (Passenger Van With Aux)

TOO HOT IN VEHICLE - AUXILIARY (PASSENGER VAN WITH AUX)

TEST DESCRIPTION

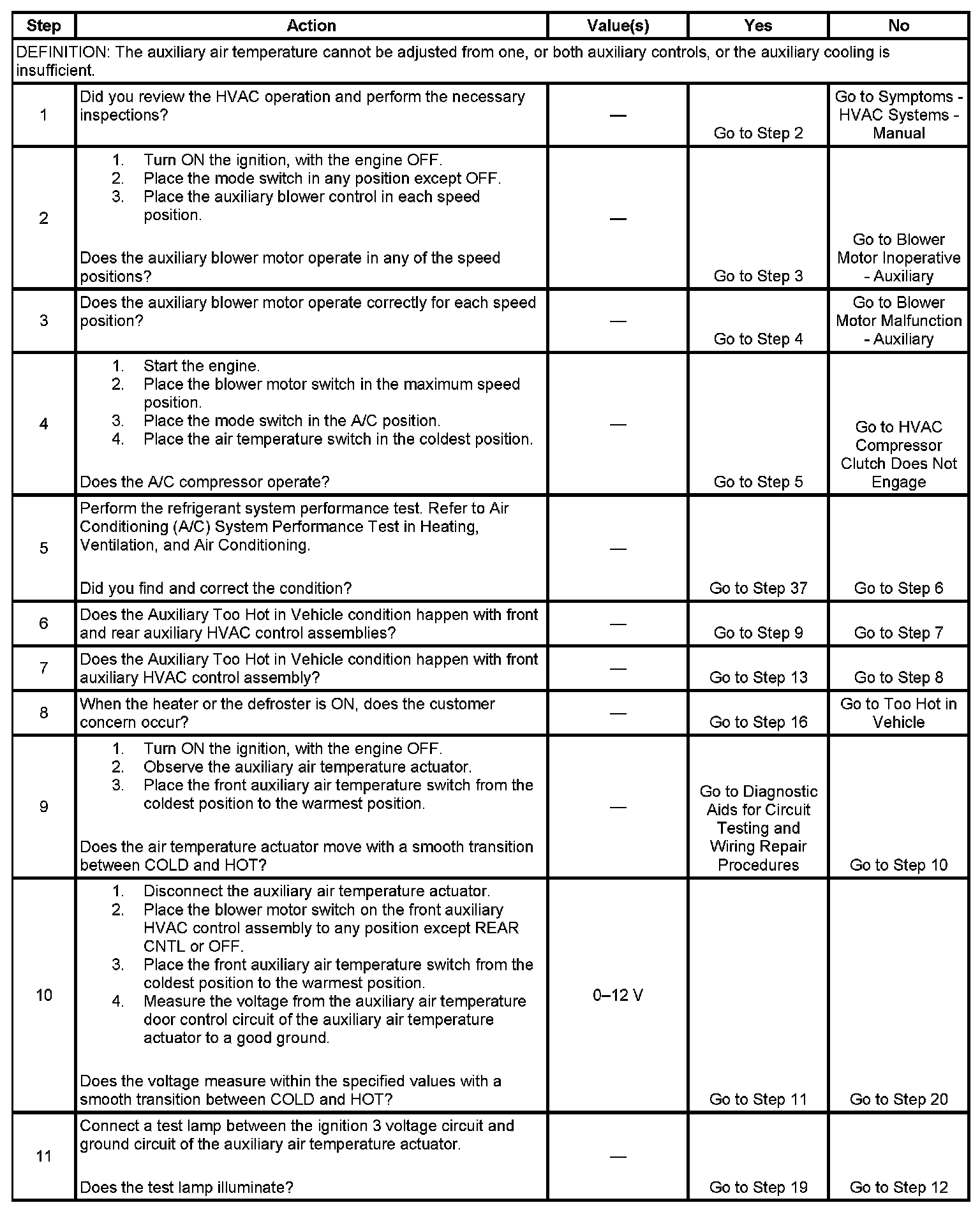

Step 1 - Step 11:

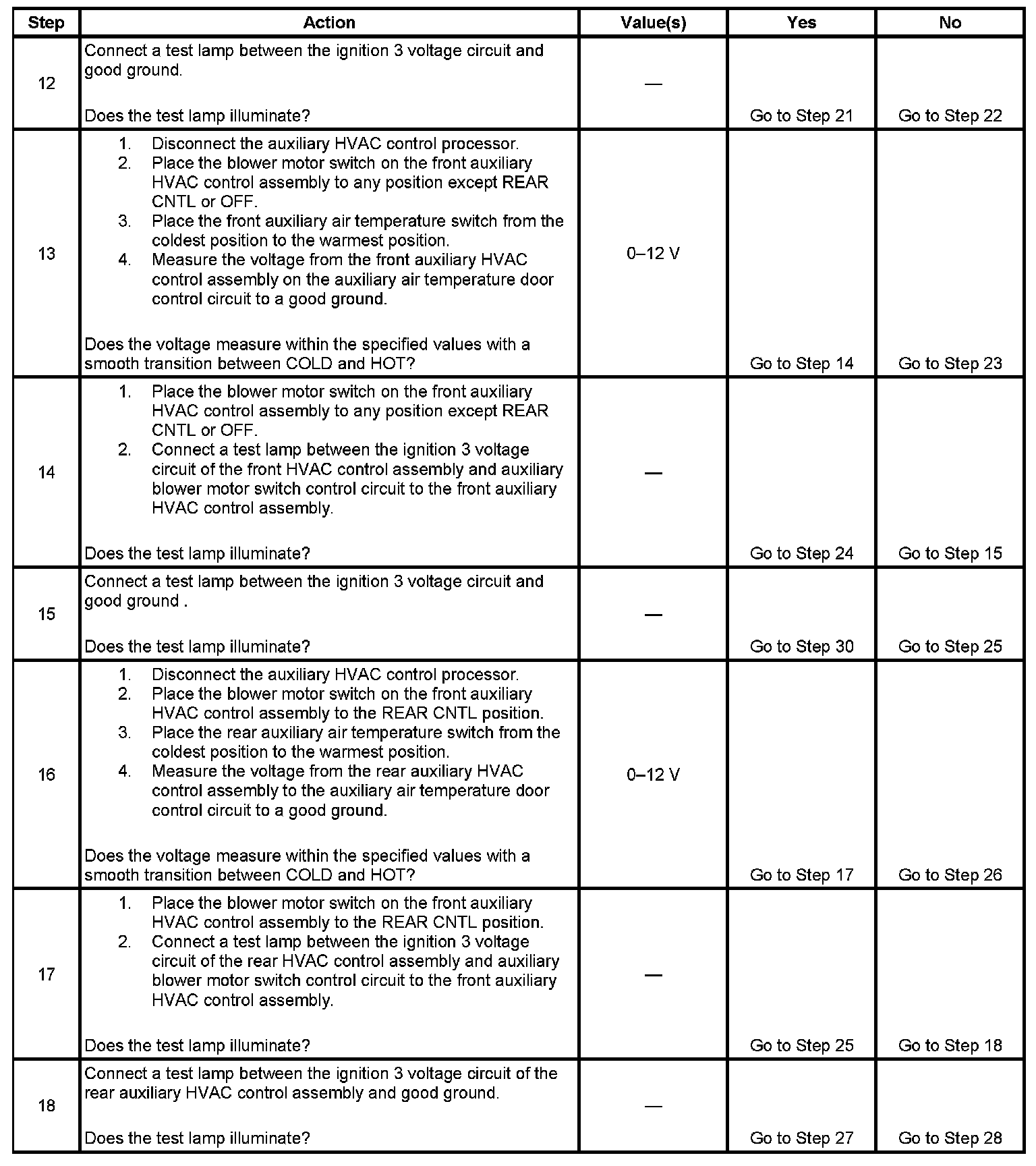

Step 12 - Step 18:

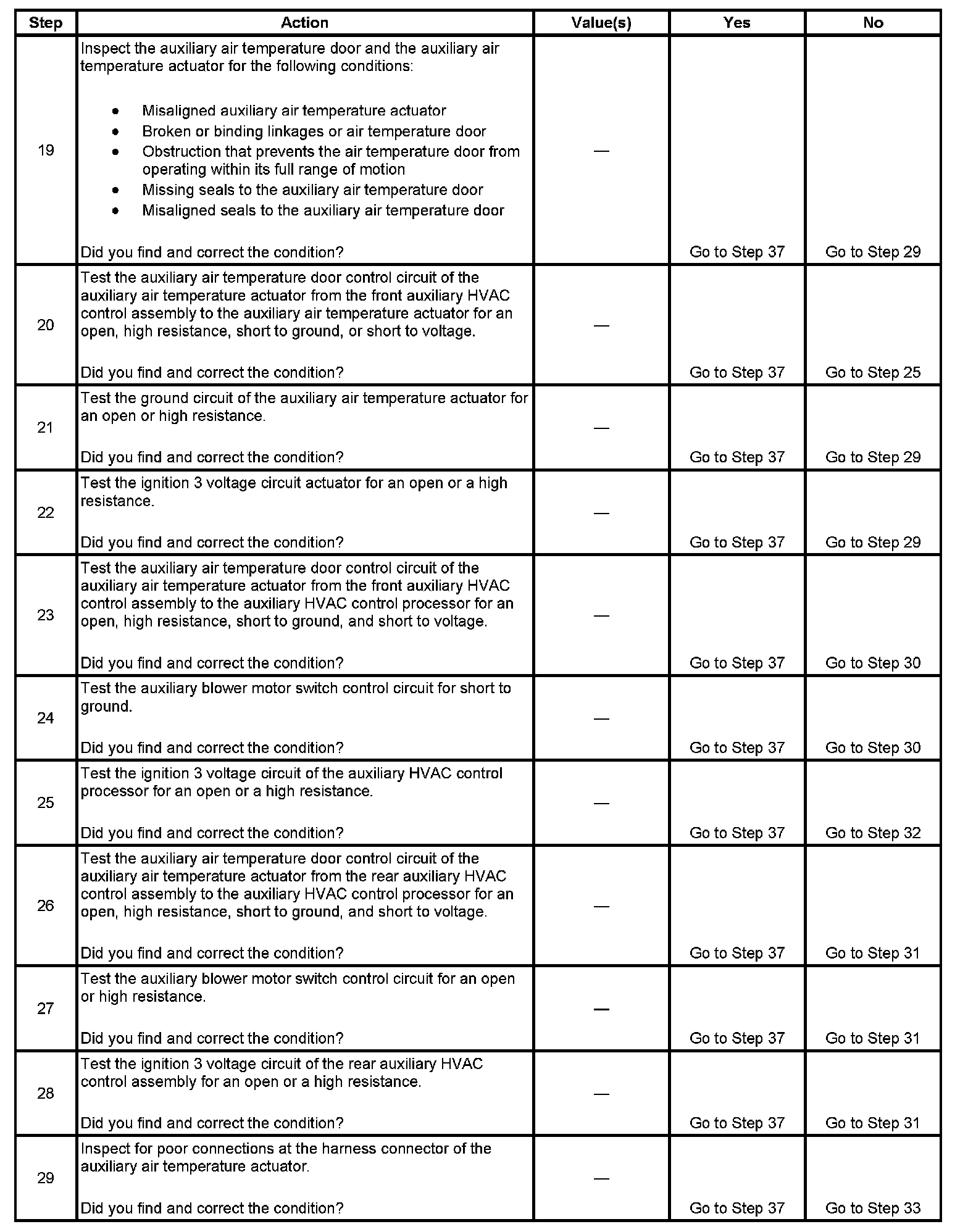

Step 19 - Step 29:

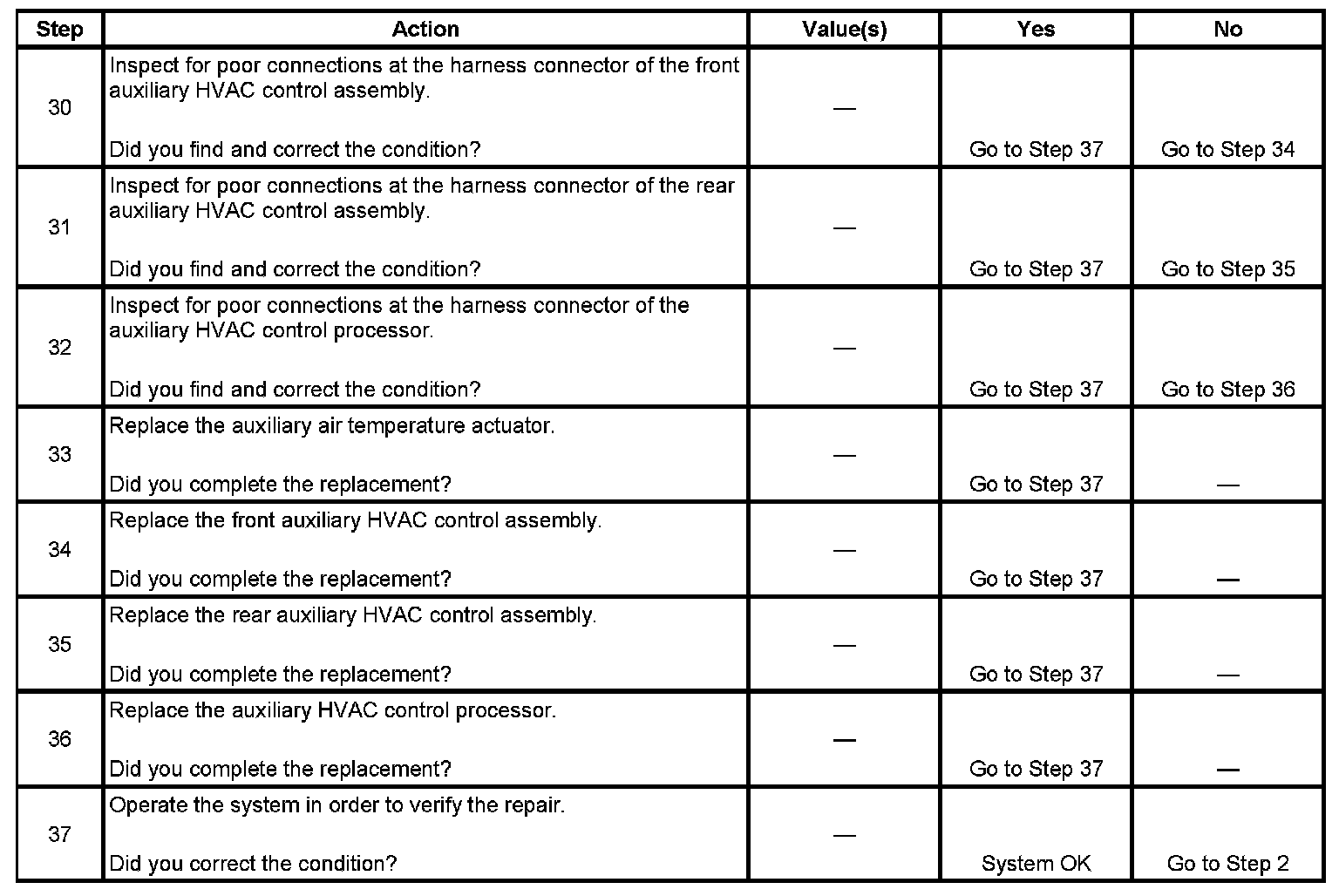

Step 30 - Step 37:

The numbers below refer to the step numbers on the diagnostic table.
5. The specified values are from the A/C System Performance Test.
9. This step checks for proper air temperature actuator movement.
10. The voltage will vary between 0-12 volts during normal operation. The front auxiliary HVAC control assembly connector must be connected during this step. This checks for proper operation of the air temperature actuator door control circuit and the front auxiliary HVAC control assembly.
13. The voltage will vary between 0-12 volts during normal operation. The front auxiliary HVAC control assembly connector must be connected during this step. This checks for proper operation of the air temperature actuator door control circuit and the front auxiliary HVAC control assembly.
14. The auxiliary blower motor switch control circuit should not have continuity to ground when the front auxiliary HVAC control assembly is in any position except REAR CNTL.
16. The voltage will vary between 0-12 volts during normal operation. The rear auxiliary HVAC control assembly connector must be connected during this step. This checks for proper operation of the air temperature actuator door control circuit and the rear auxiliary HVAC control assembly.
20. This step checks the complete auxiliary air temperature door control circuit, from the front HVAC control assembly, through the auxiliary HVAC control processor to the auxiliary air temperature actuator.
