Blower Motor Always On - Auxiliary (Passenger Van With Aux)

BLOWER MOTOR ALWAYS ON - AUXILIARY (PASSENGER VAN WITH AUX)

TEST DESCRIPTION

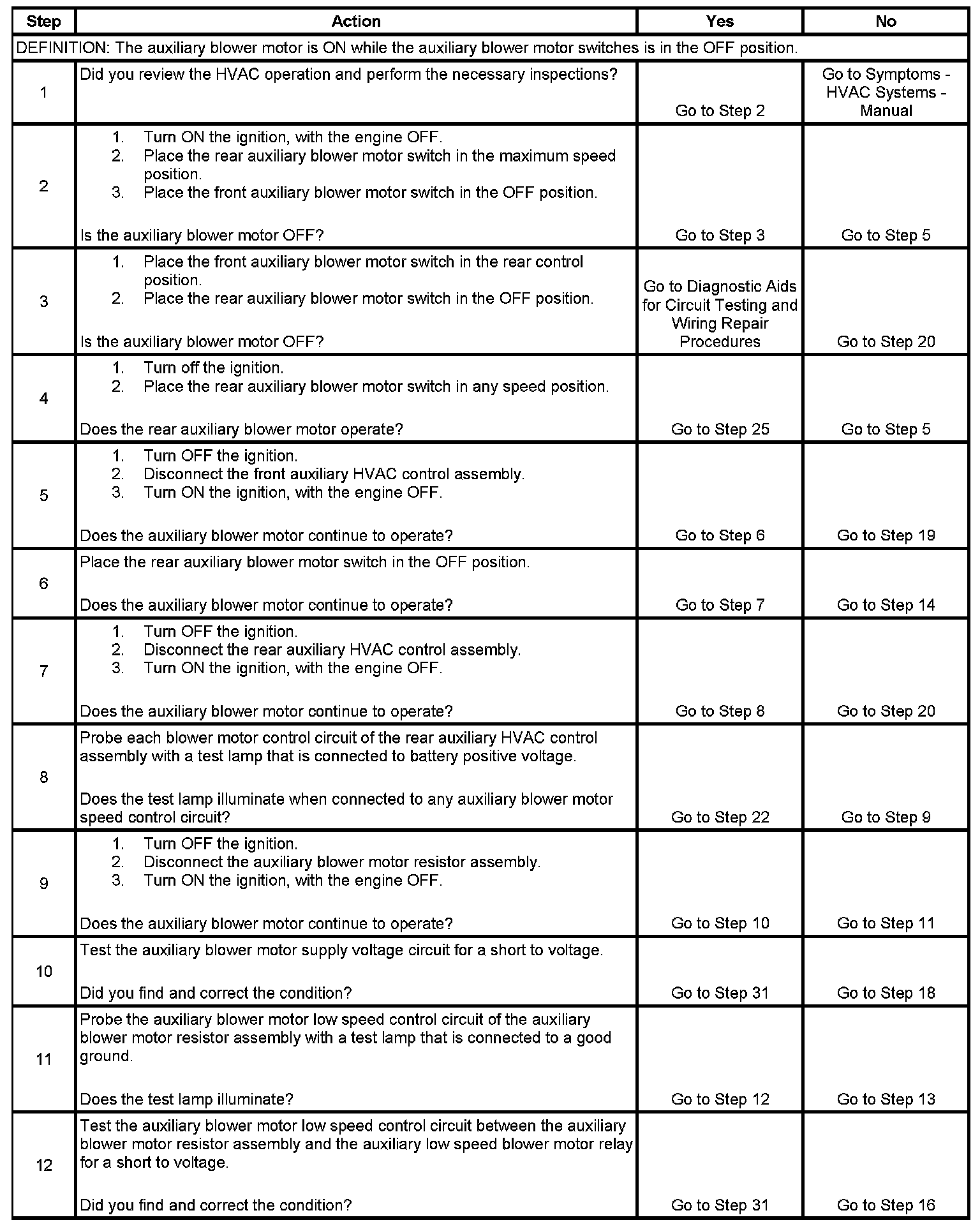

Step 1 - Step 12:

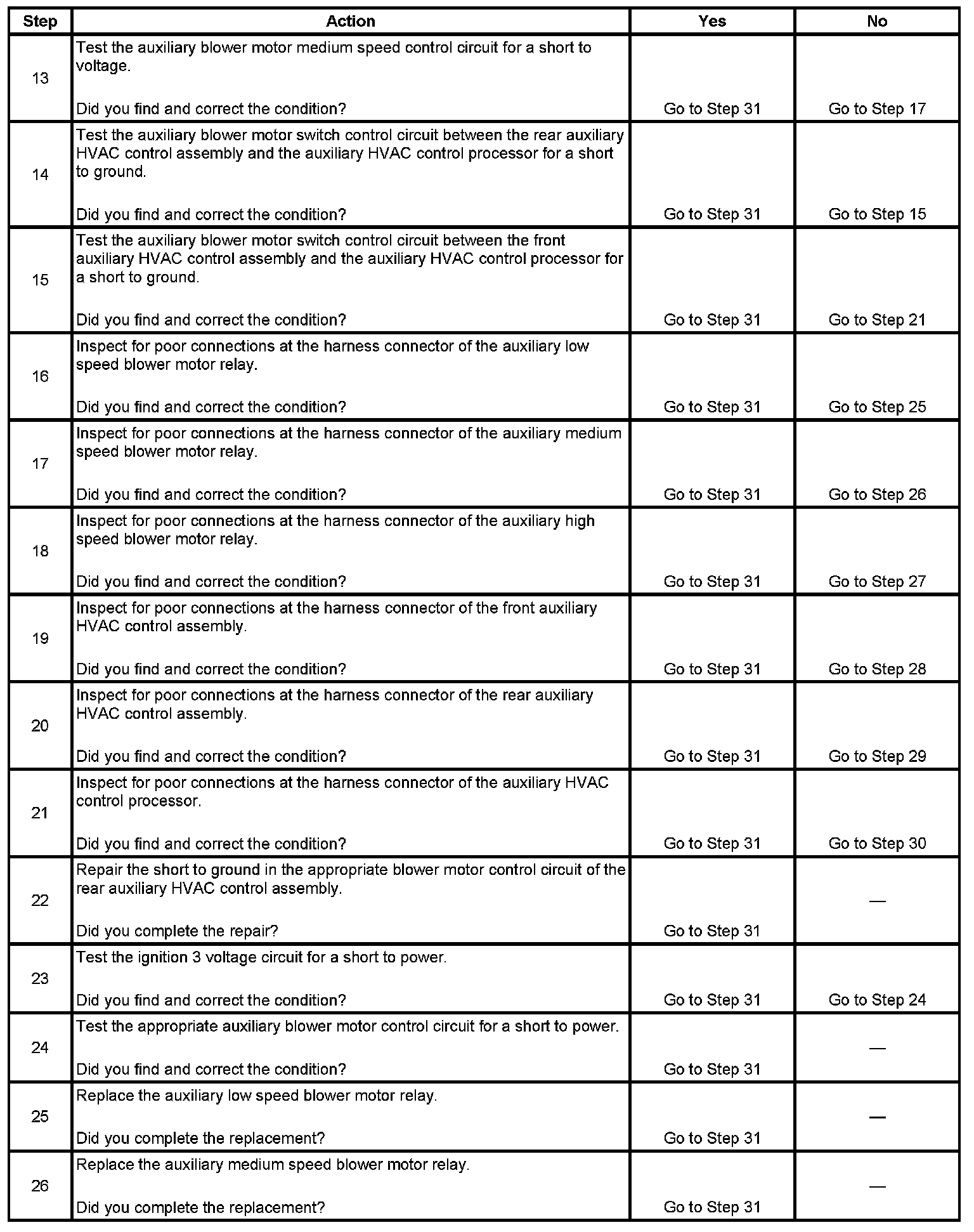

Step 13 - Step 26:

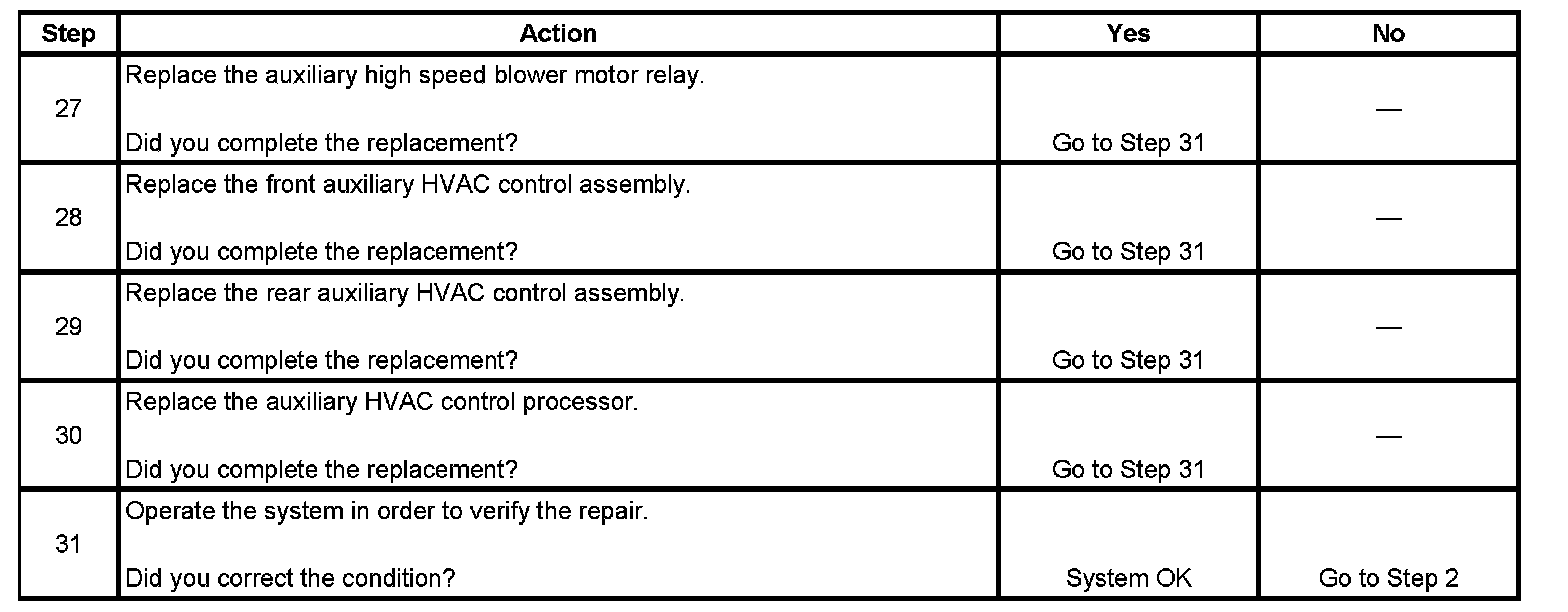

Step 27 - Step 31:

The numbers below refer to the step numbers on the diagnostic table.
15. The auxiliary blower motor switch control circuit is the circuit that enables the rear auxiliary HVAC control assembly when the front auxiliary blower motor switch is placed in the rear control position.
16. The auxiliary blower motor switch control circuit is the circuit that enables the rear auxiliary HVAC control assembly when the front auxiliary blower motor switch is placed in the rear control position.
