HVAC Control Assembly

HVAC CONTROL ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE
1. Remove the I/P cluster trim plate.

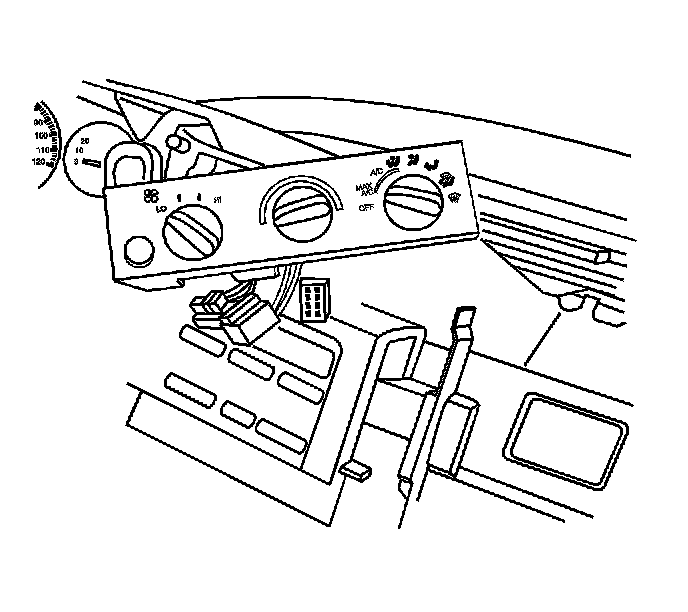

2. Remove the retaining screw from the HVAC control assembly.
3. Pivot the HVAC control assembly to disengage the locking tab on the right side.

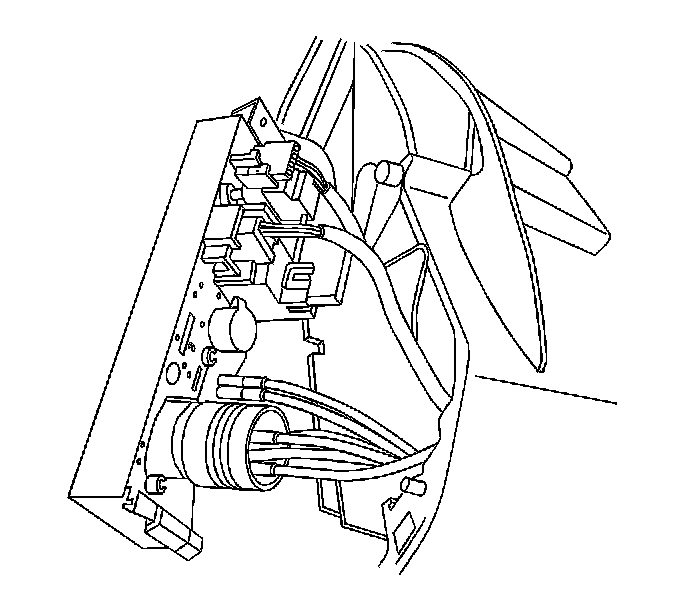

4. Disconnect the electrical connectors.
5. Disconnect the vacuum connector.




6. Remove the HVAC control assembly.

INSTALLATION PROCEDURE




1. Connect the vacuum connector.
2. Connect the electrical connectors.
3. Install the HVAC control assembly.
4. Install the retaining screw to the HVAC control assembly.

Tighten the screw to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

5. Install the I/P cluster trim plate.
