Air Cleaner Fresh Air Duct/Hose: Service and Repair

AIR CLEANER OUTLET DUCT REPLACEMENT

REMOVAL PROCEDURE
1. Remove the air cleaner assembly.

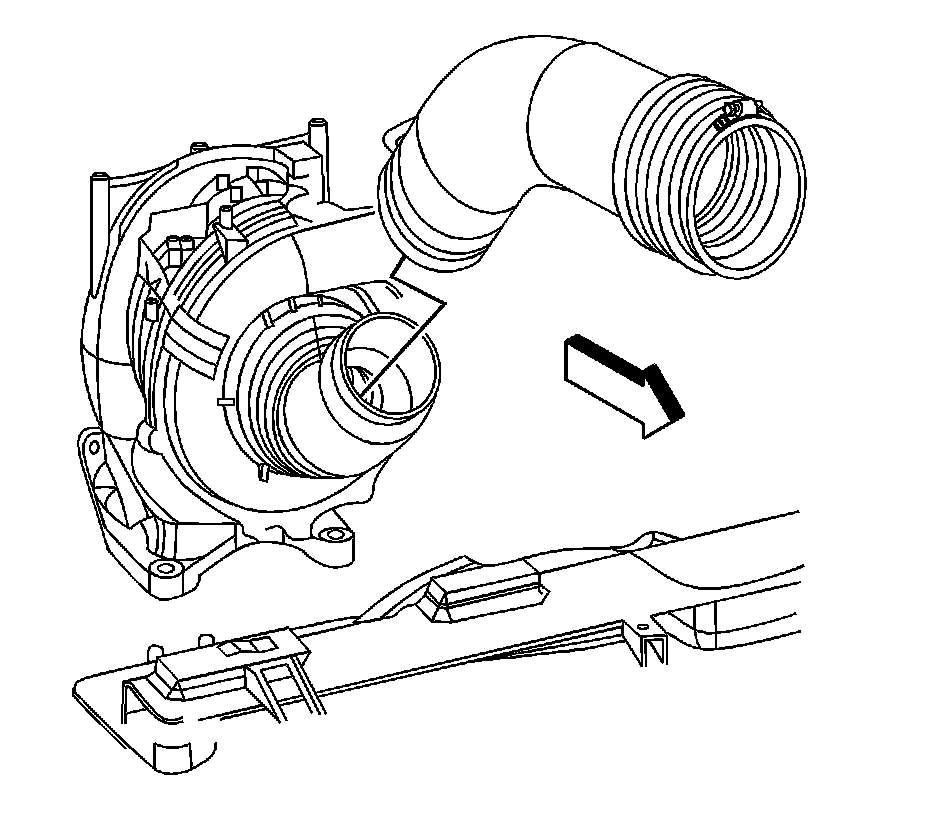

2. Loosen the air intake duct to turbo clamp.
3. Remove the intake air duct.

INSTALLATION PROCEDURE




1. Install the intake air duct.
2. Tighten the intake air duct to turbo clamp.

NOTE: Refer to Fastener Notice.

3. Install the air cleaner assembly.
