92. Fuel Injection Pump Installation

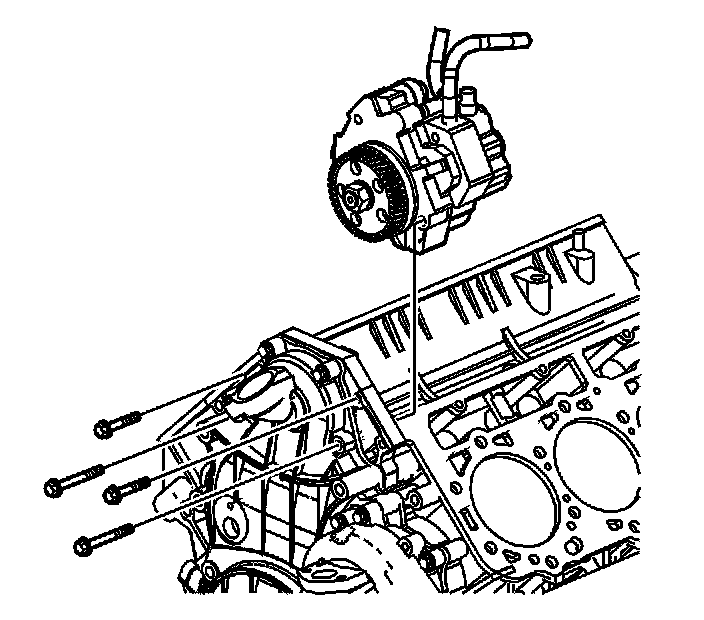

Fuel Injection Pump Installation





1. Lubricate the O-ring on the fuel injection pump adapter with engine oil.
2. Install the fuel injection pump and adapter assembly.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the fuel injection pump bolts.
Tighten the fuel injection pump bolts to 25 Nm (18 ft. lbs.).
