28. Intake Manifold Removal - Left Side

Intake Manifold Removal - Left

Tools Required
^ J37228 Seal Cutter

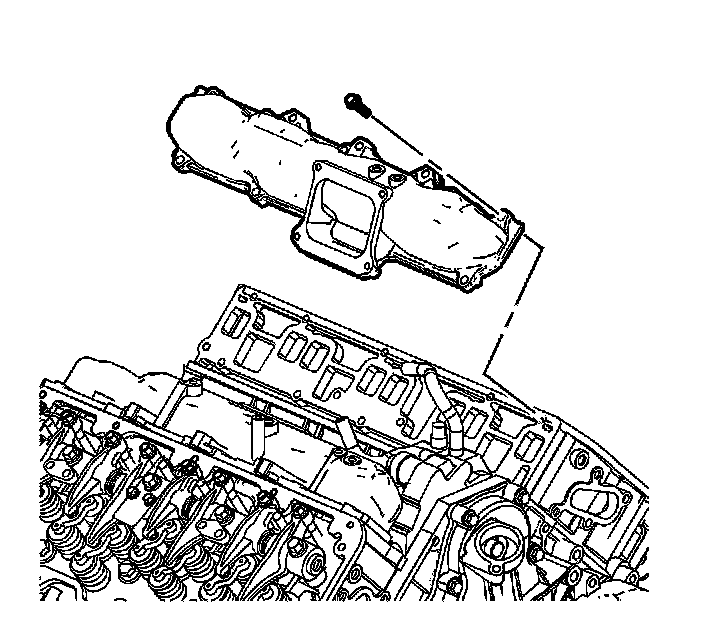

1. Remove the left intake manifold bolts. Do not forget to remove the bolt inside the intake manifold tube.
2. Separate the intake manifold from the cylinder head using J37228.
3. Remove the left intake manifold.
