120. Lower Oil Pan Installation

Oil Pan Installation - Lower





1. Apply a 2 - 3 mm wide by 0.5 - 1.5 mm high bead of GM P/N 12378521 (Canadian P/N 88901148) sealant to the lower oil pan mating surface.

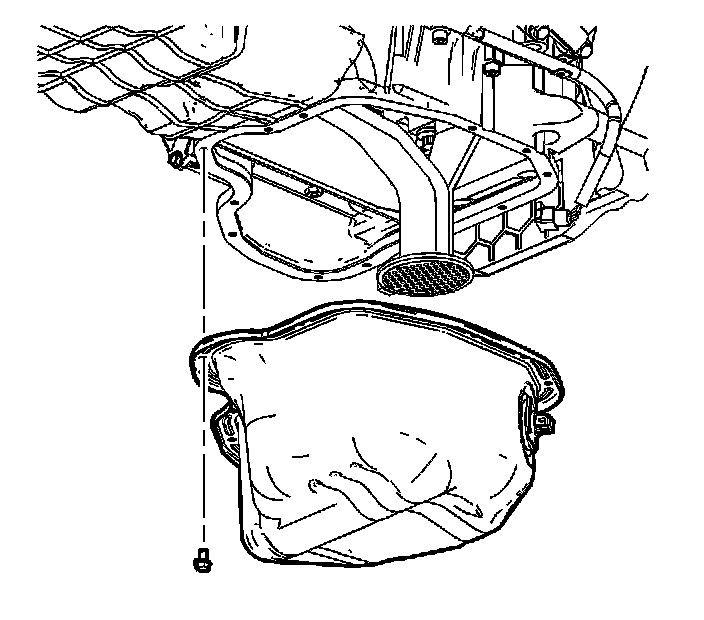

2. Install the lower oil pan.





Notice: Refer to Fastener Notice in Service Precautions.

3. Install the lower oil pan bolts and nuts.

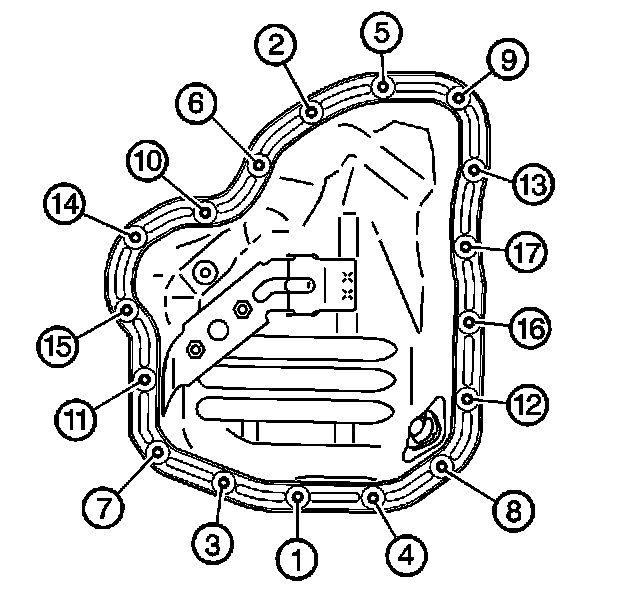

Tighten the lower oil pan bolts and nuts in sequence to 10 Nm (89 inch lbs.).

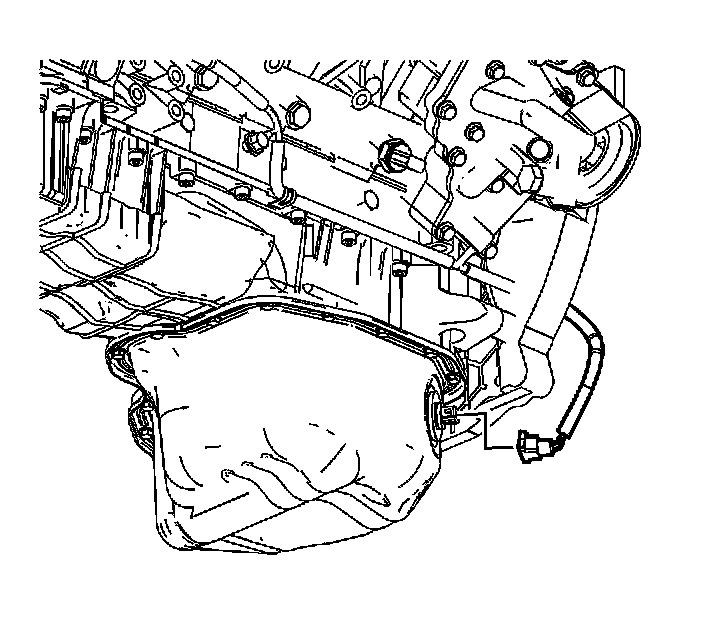

4. Connect the oil level sensor.
