10. Upper Oil Pan Removal

Oil Pan Removal - Upper

Tools Required
^ J37228 Seal Cutter

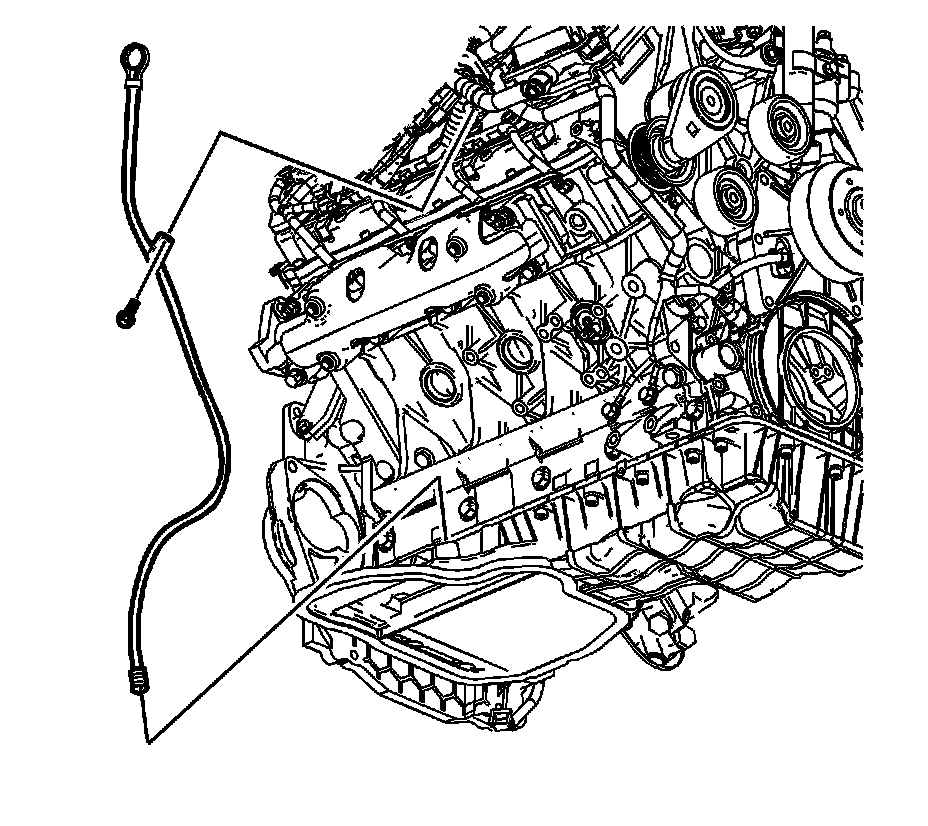

1. Remove the oil level indicator tube bracket bolt.
2. Remove the oil level indicator tube.

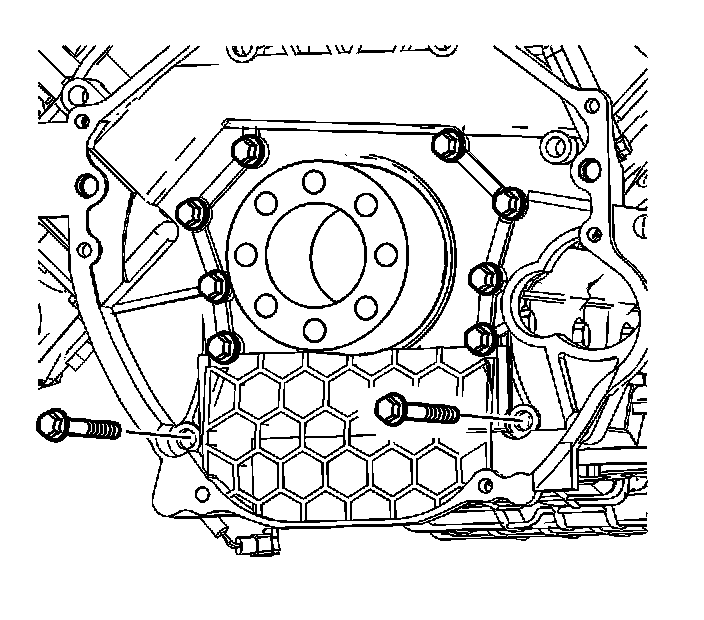

3. Remove the two oil pan to flywheel housing bolts.

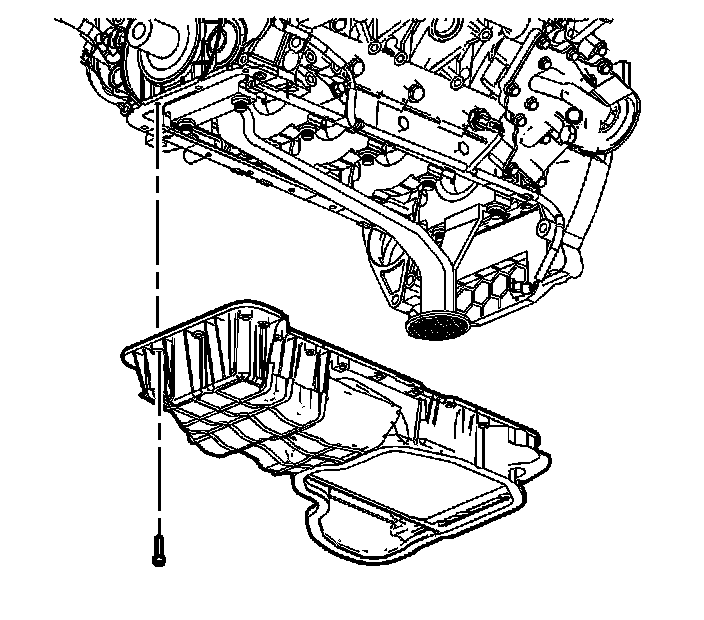

4. Remove the 24 upper oil pan bolts using a long bit 6 mm hex driver.
5. Separate the upper oil pan from the engine block using J37228.
6. Remove the upper oil pan.
