Engine Mount Replacement - Right

Engine Mount Replacement - Right
Removal Procedure





1. Raise the vehicle to a height to work through the front wheelhouse opening. Refer to Lifting and Jacking the Vehicle.
2. Remove the right front tire and wheel, if necessary.
3. Remove the pushpins holding the right front fender wheelhouse inner panel (1).
4. Remove the wheelhouse inner panel.





Notice: Refer to Engine Mounting Notice In Service Precautions.

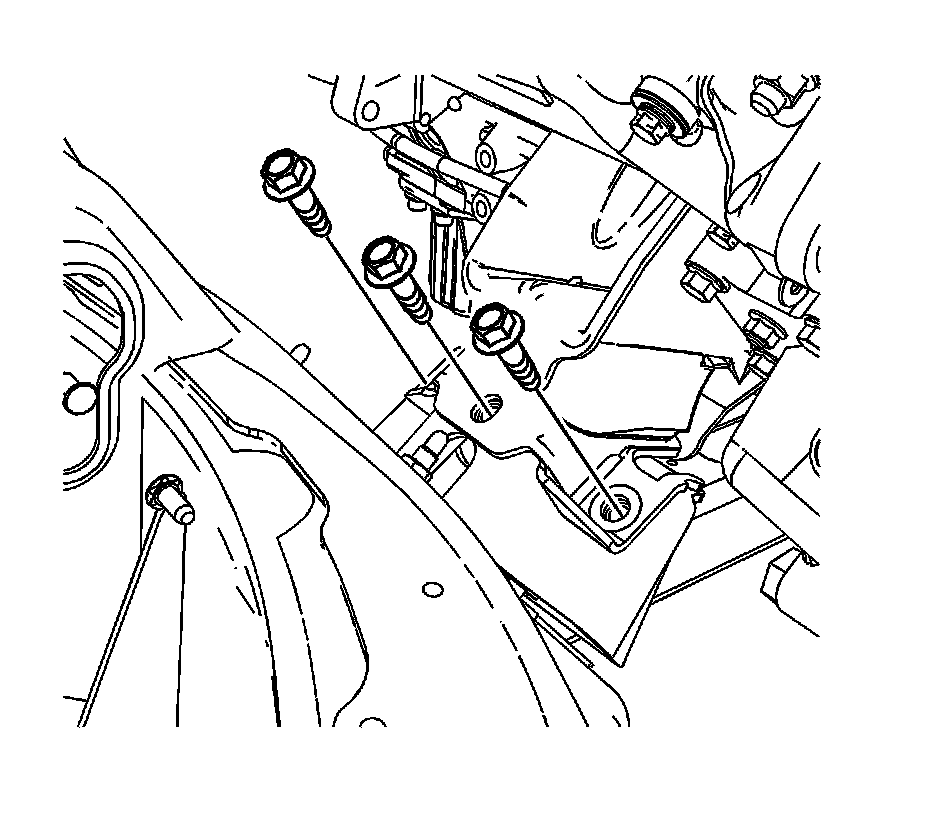

5. Working through the wheelhouse opening remove the 3 bolts retaining the engine mount to the engine mount frame bracket.





6. Remove the bracket bolt for the transmission oil cooler lines to the engine.
7. Move the transmission oil cooler lines aside.

Notice: Refer to Engine Lifting Notice In Service Precautions.

Important: When raising the engine only raise enough to separate the engine mount from the engine mount bracket. Raising any further the fan shroud or the exhaust pipe will require removal.

8. Using a suitable jack on the ground wire bolt bosses, raise the engine. Only raise the engine enough to separate the engine mount to engine mount bracket.

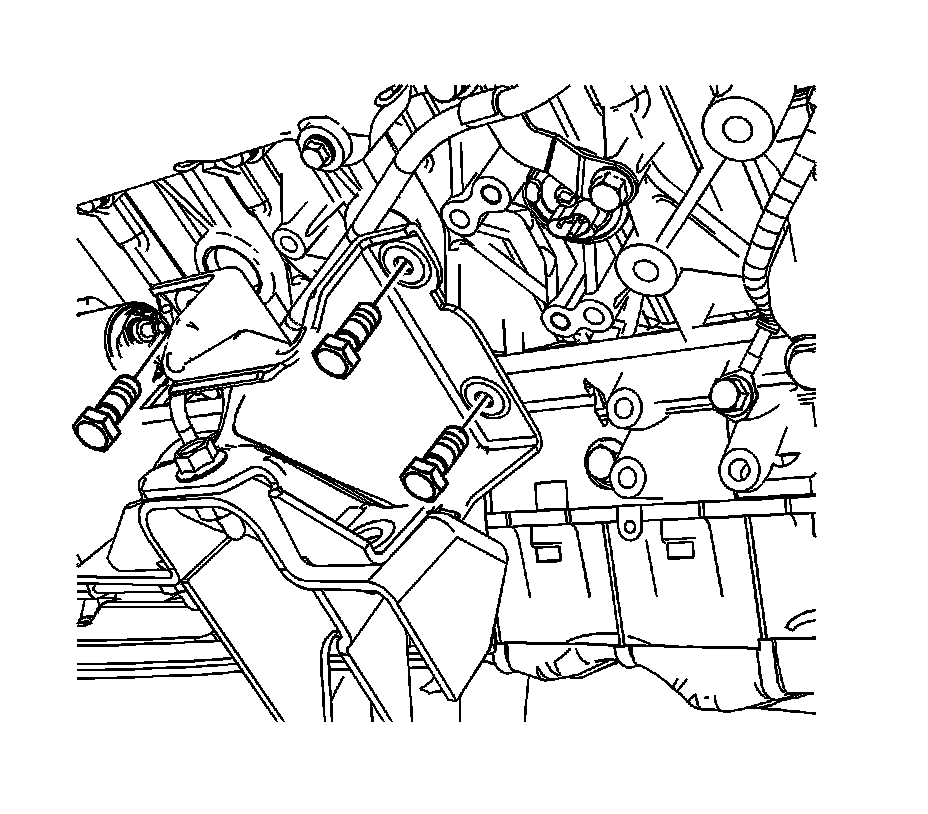

9. Remove the bolts holding the engine mount to the engine.
10. Remove the engine mount.

Installation Procedure
1. Install the engine mount.
2. Perform the following procedure prior to installing the engine mount bracket bolts.
^ Remove all traces of the original adhesive patch.
^ Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
^ Apply threadlocker GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the bolts.





Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolts holding the engine mount to the engine.
Tighten the engine mount bolts to 58 Nm (43 ft. lbs.).
4. Lower the engine.





5. Install the 3 bolts holding the engine mount to the engine mount frame bracket.
Tighten the engine mount to engine mount frame bracket bolts to 65 Nm (48 ft. lbs.).





6. Install the bolt for the transmission oil cooler line bracket.
Tighten the transmission oil cooler line bracket bolt to 9 Nm (80 inch lbs.).
7. Install the right front tire and wheel.
8. Install the front fender wheelhouse inner panel.
9. Lower the vehicle.
