Right Rear Cargo Door Harness Routing (Passenger/Cargo)

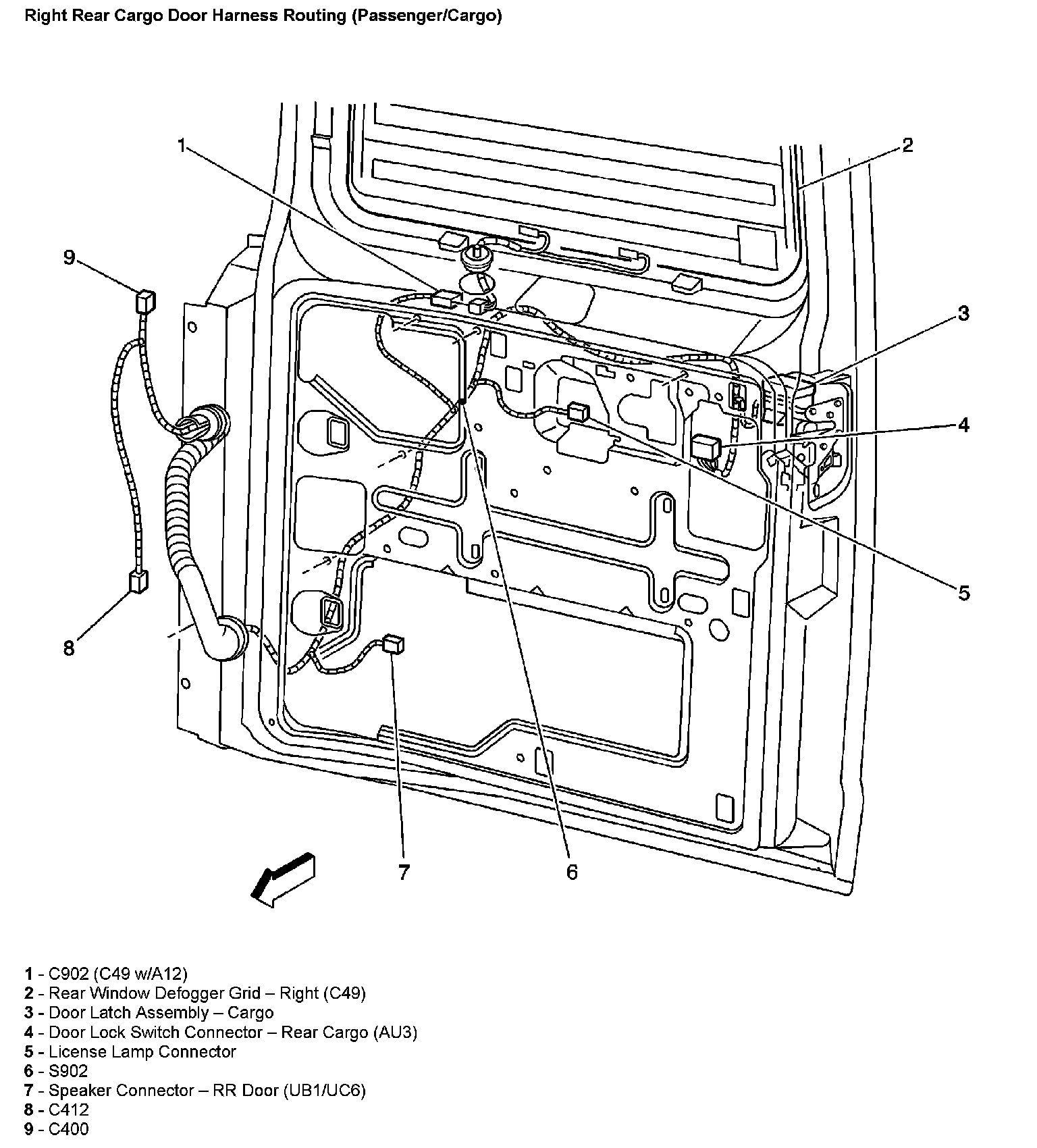

Right Rear Cargo Door Harness Routing (Passenger/Cargo):
