C107

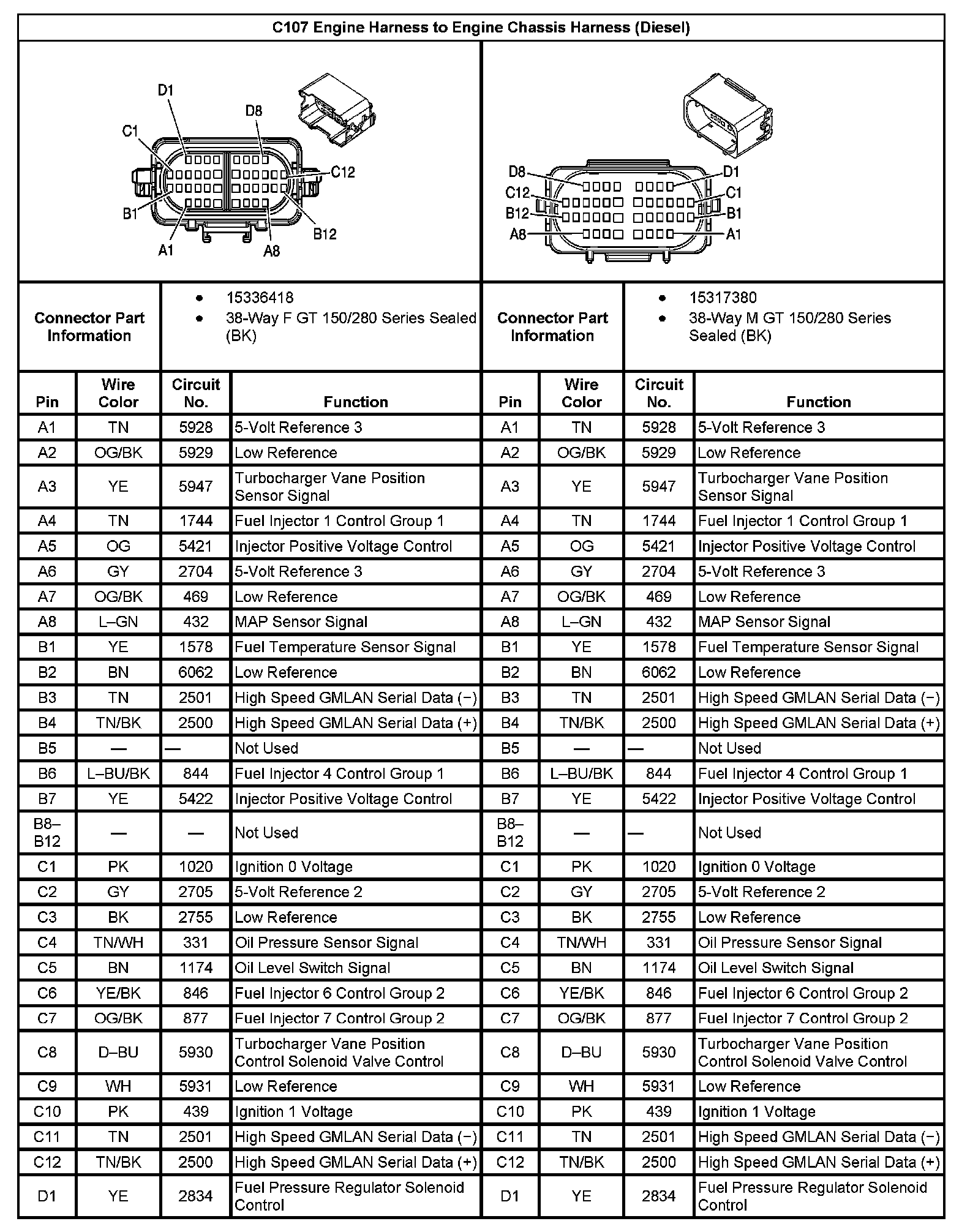

C107 Engine Harness to Engine Chassis Harness (Part 1):

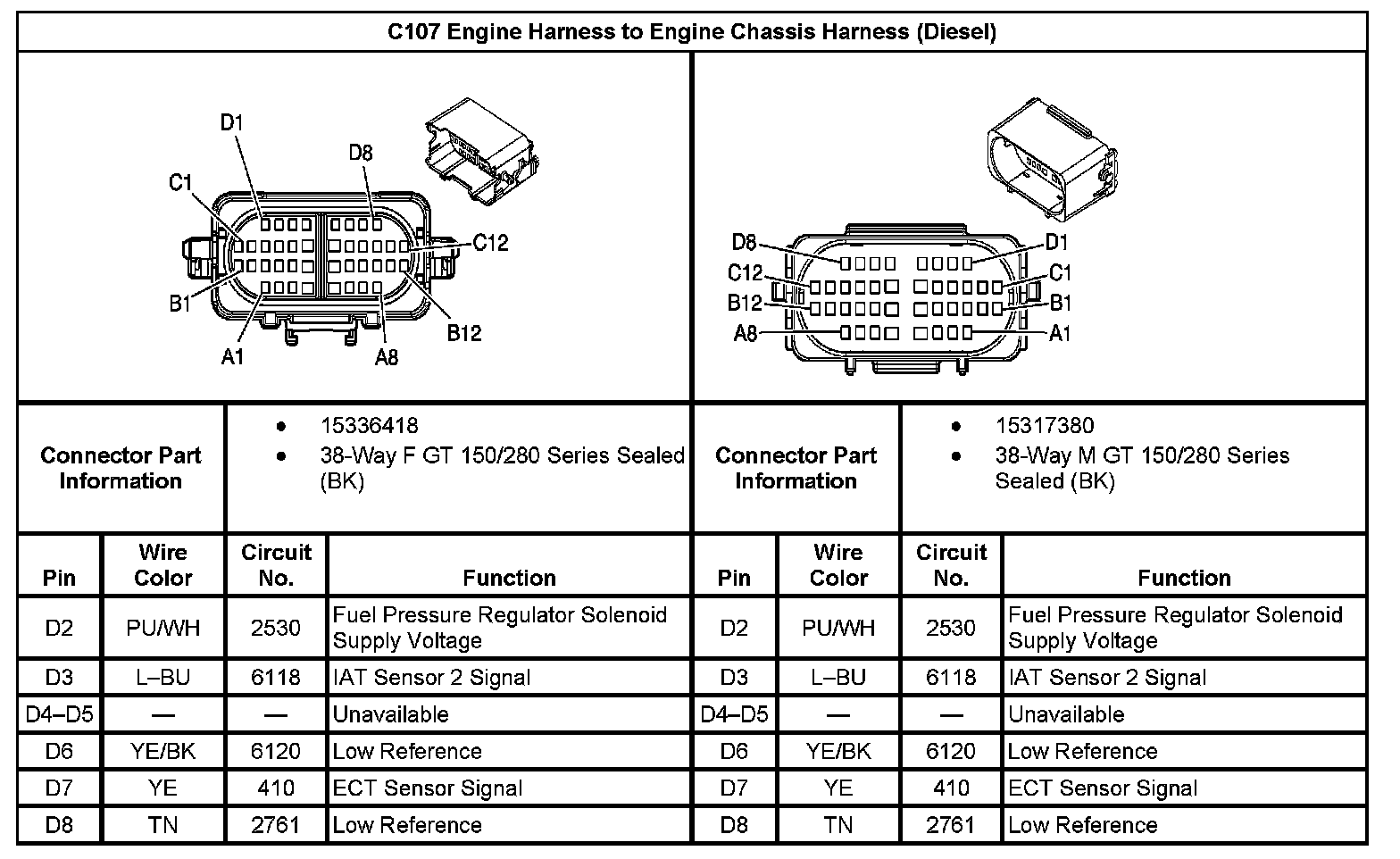

C107 Engine Harness to Engine Chassis Harness (Part 2):
