Heated Glass Element
Heated Glass Element

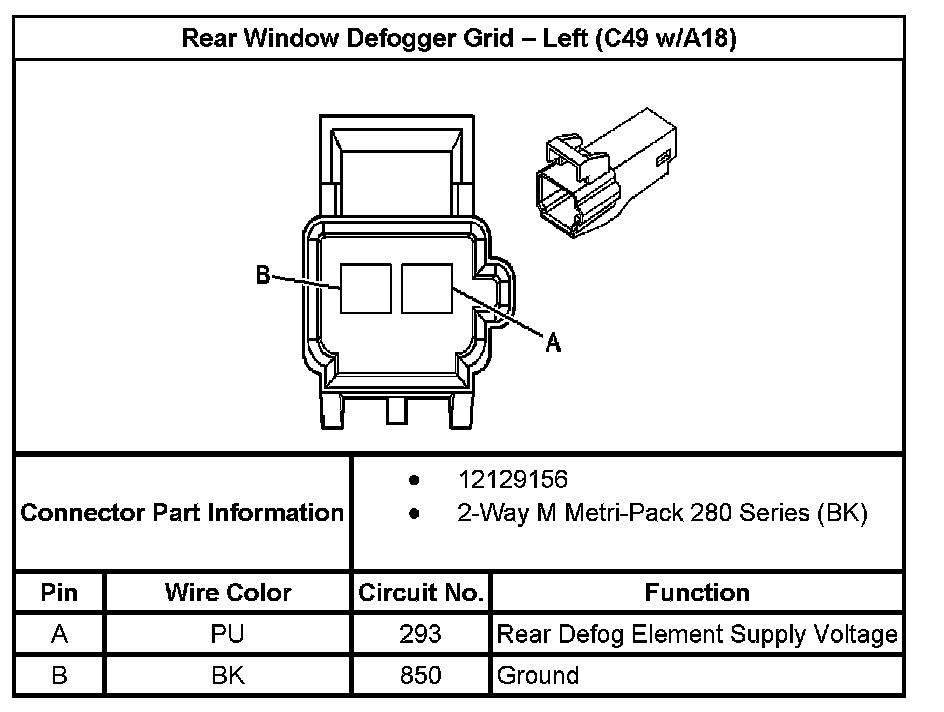

Rear Window Deogger Grid - Left (With RPO Code C49 And A18):

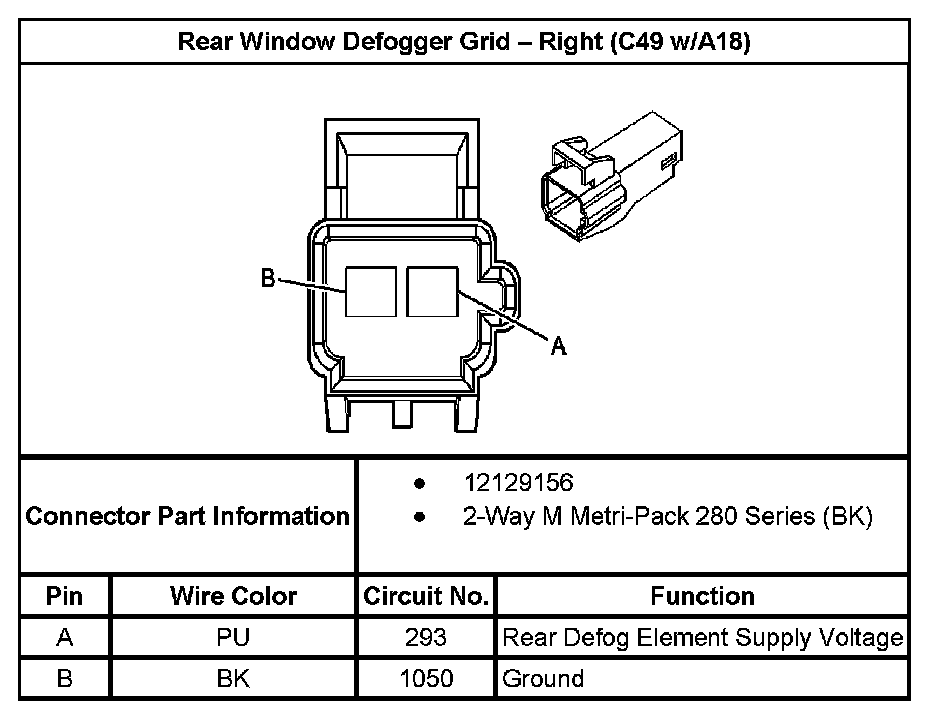

Rear Window Defogger Grid - Right (With RPO Code C49 and A18):
