Rear Auxiliary

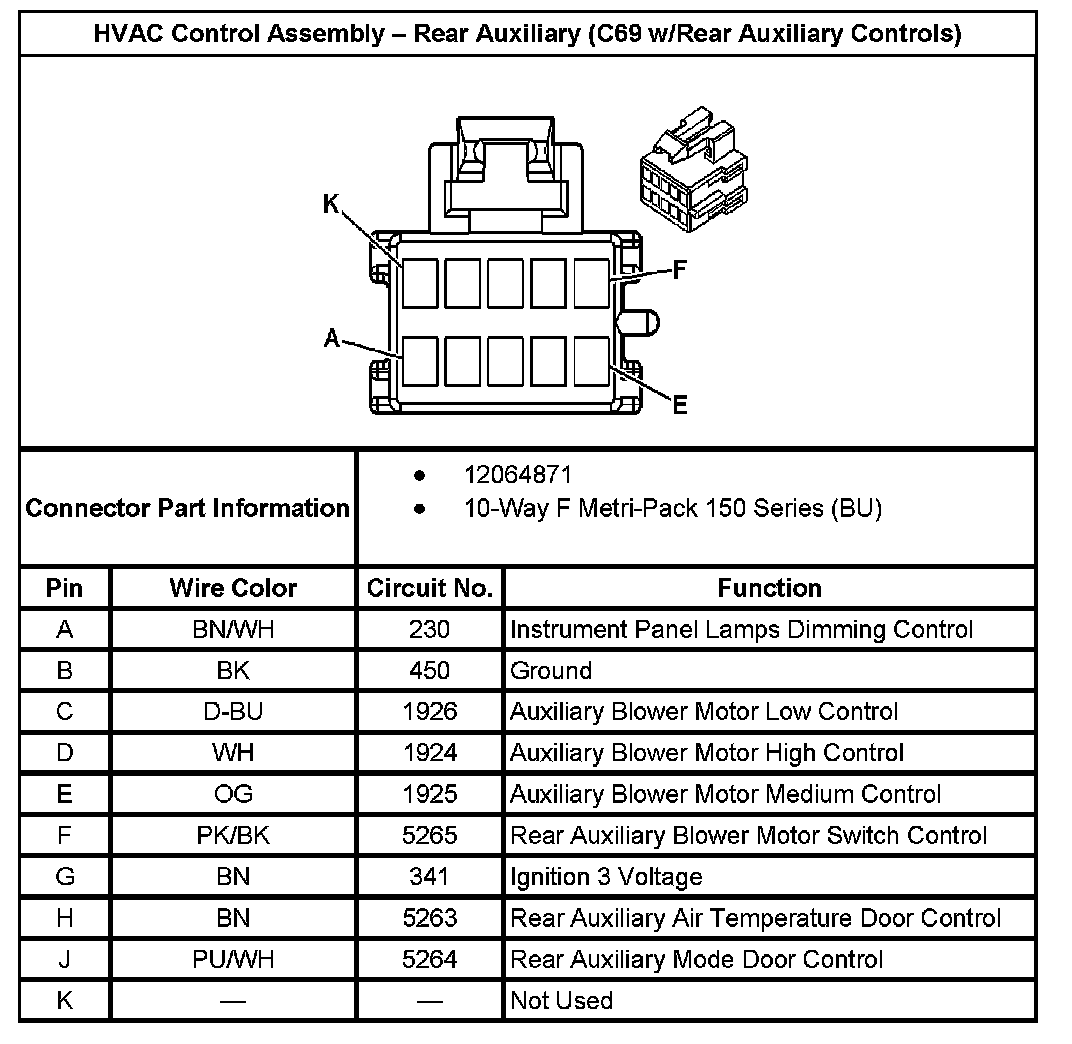

HVAC Control Assembly - Rear Auxiliary (With RPO Code C69 W/Rear Auxiliary Controls):
