HVAC Control Processor - Auxiliary
HVAC Control Processor - Auxiliary

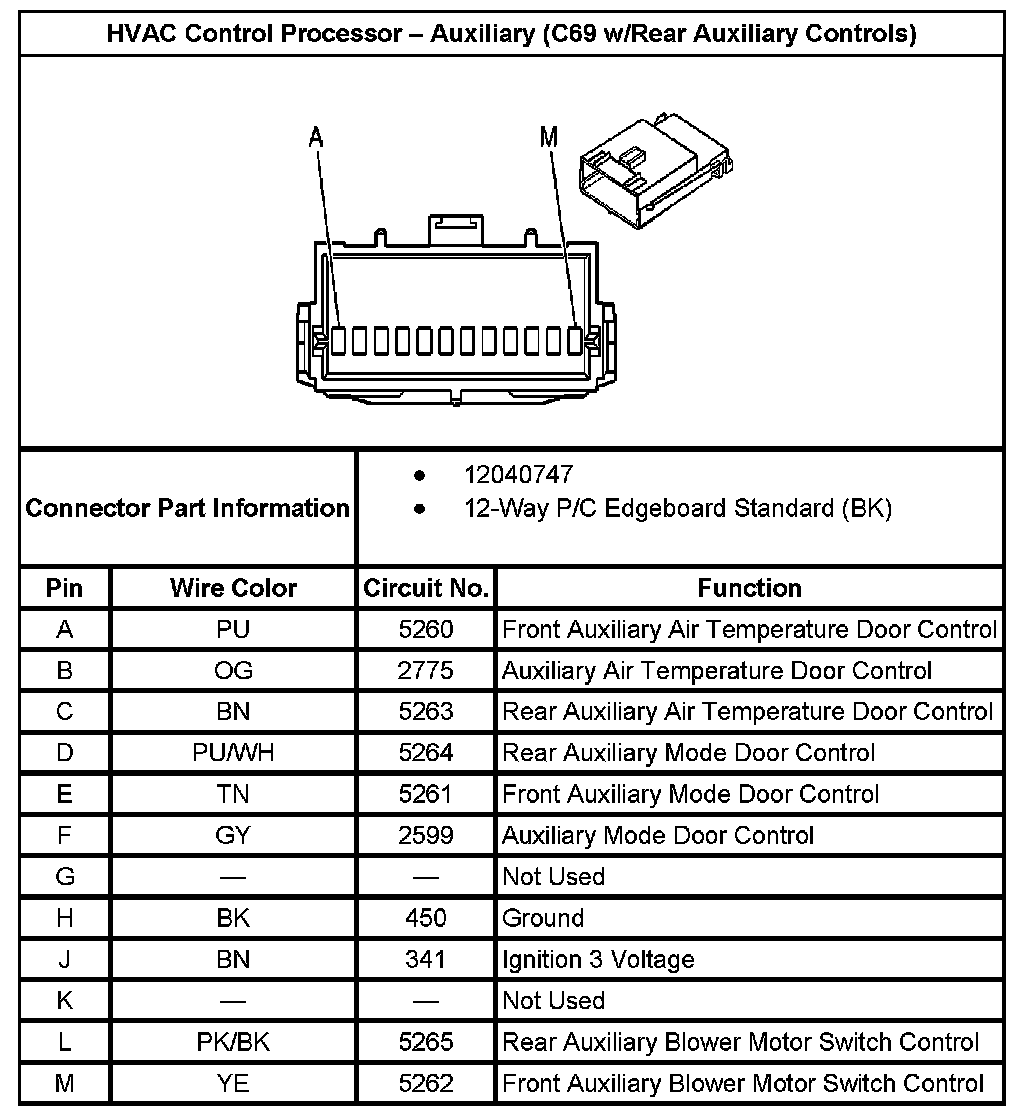

HVAC Control Processor - Auxiliary (With RPO Code C69 W/Rear Auxiliary Controls):
