C407
C407

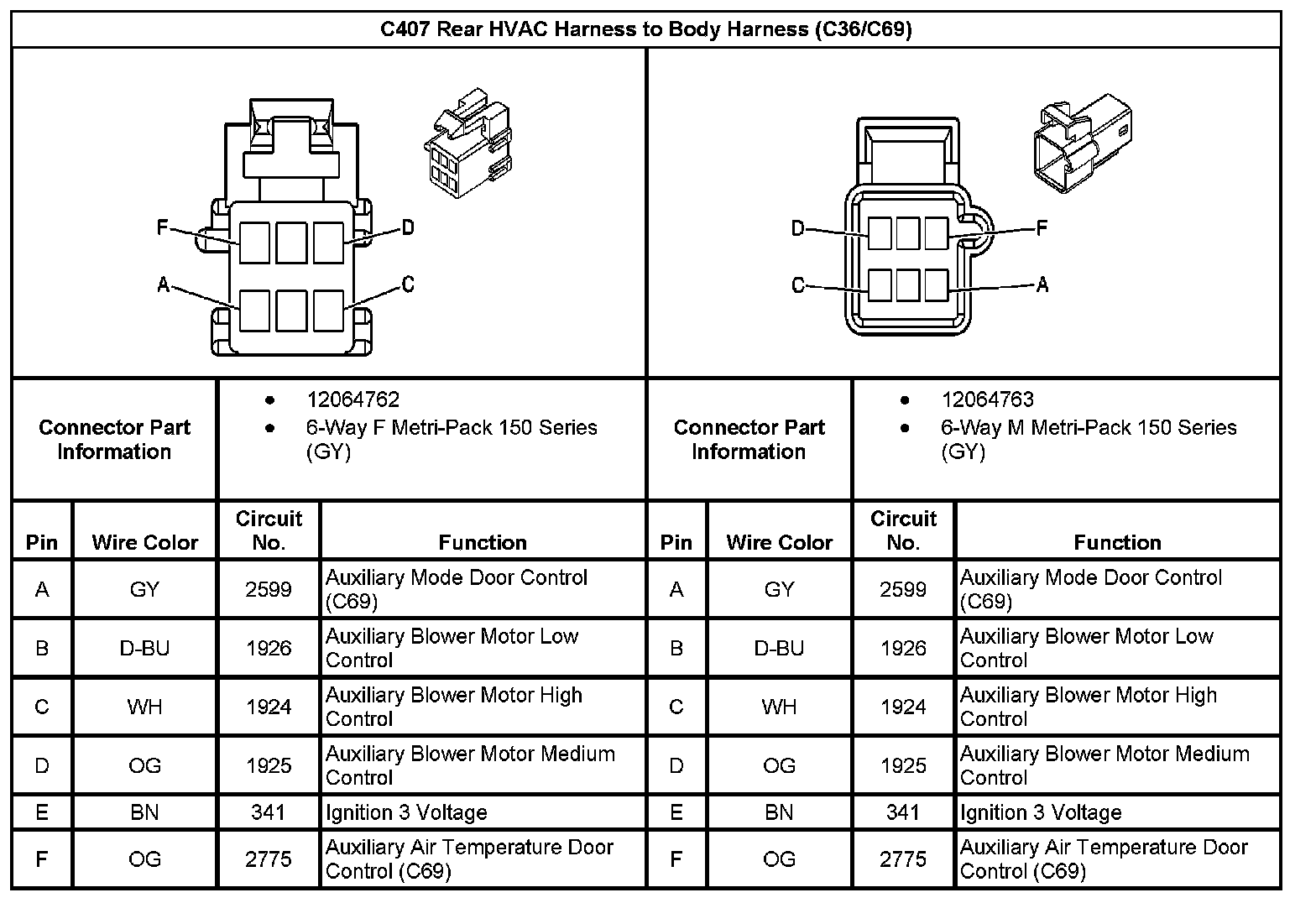

C407 Rear HVAC Harness to Body Harness (With RPo Code C36/C89):

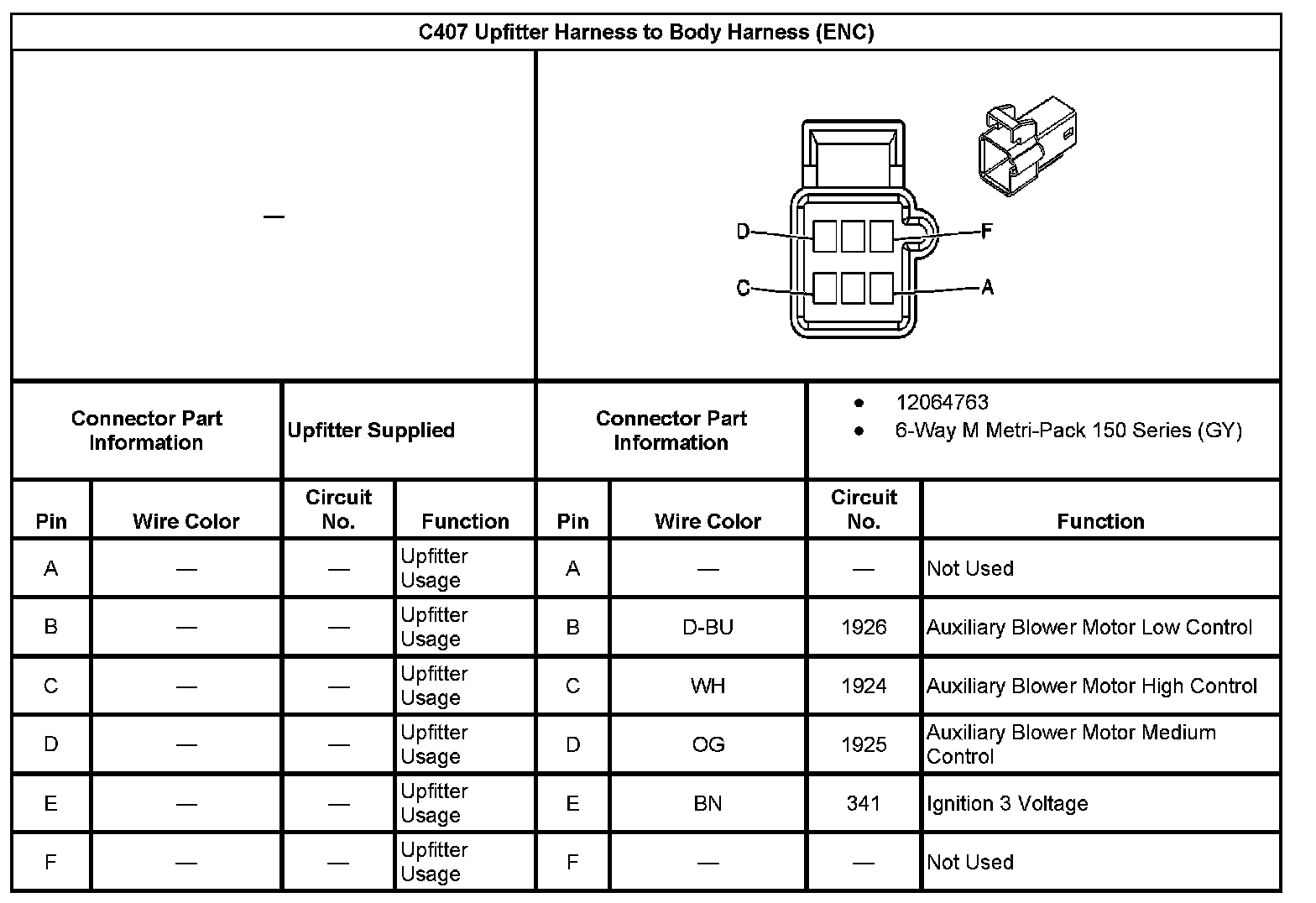

C407 Upfitter Harness To Body Harness (With RPO Code ENC):
