C174

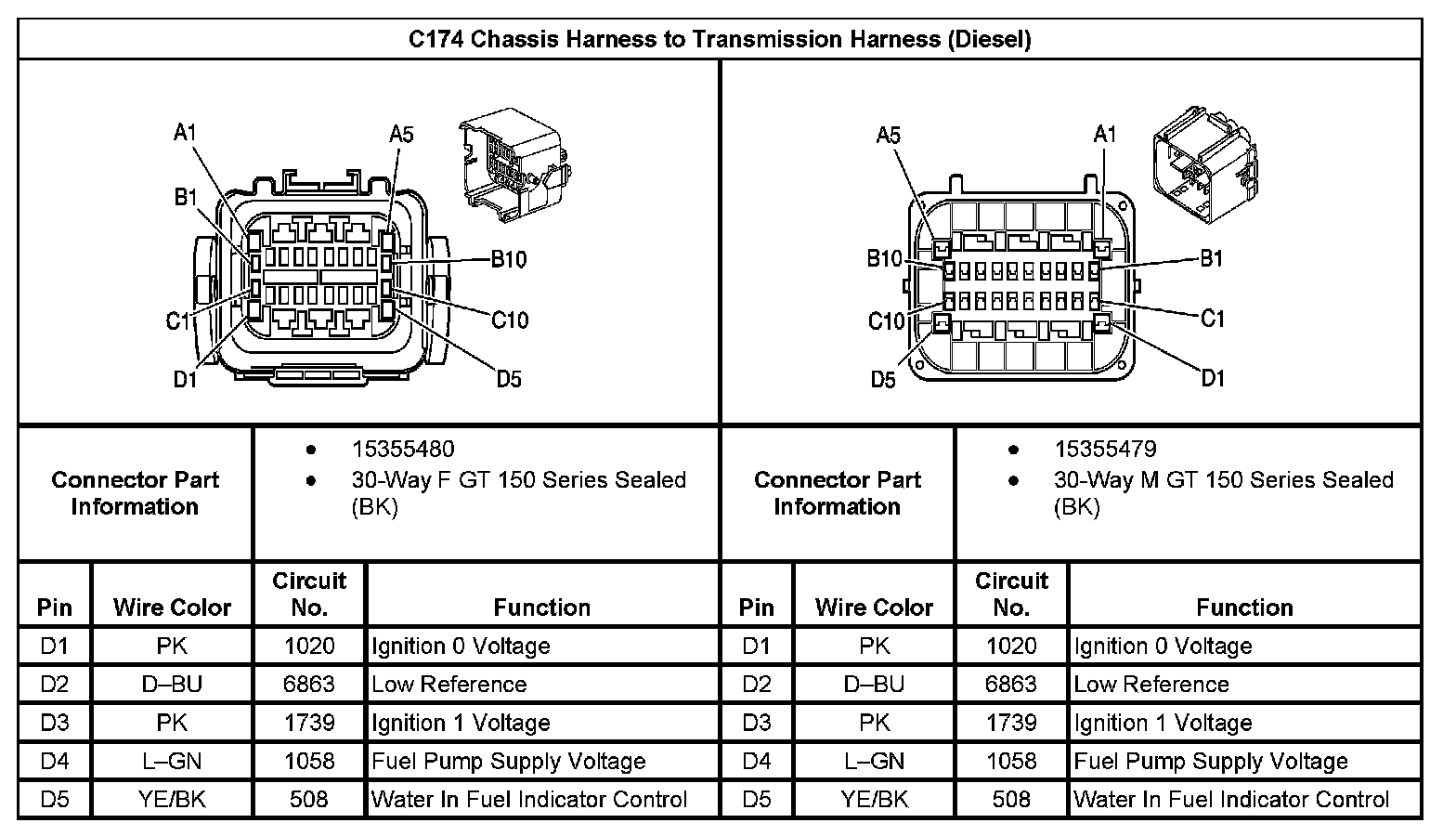

C174 Chassis Harness to Transmission Harness (Part 1):

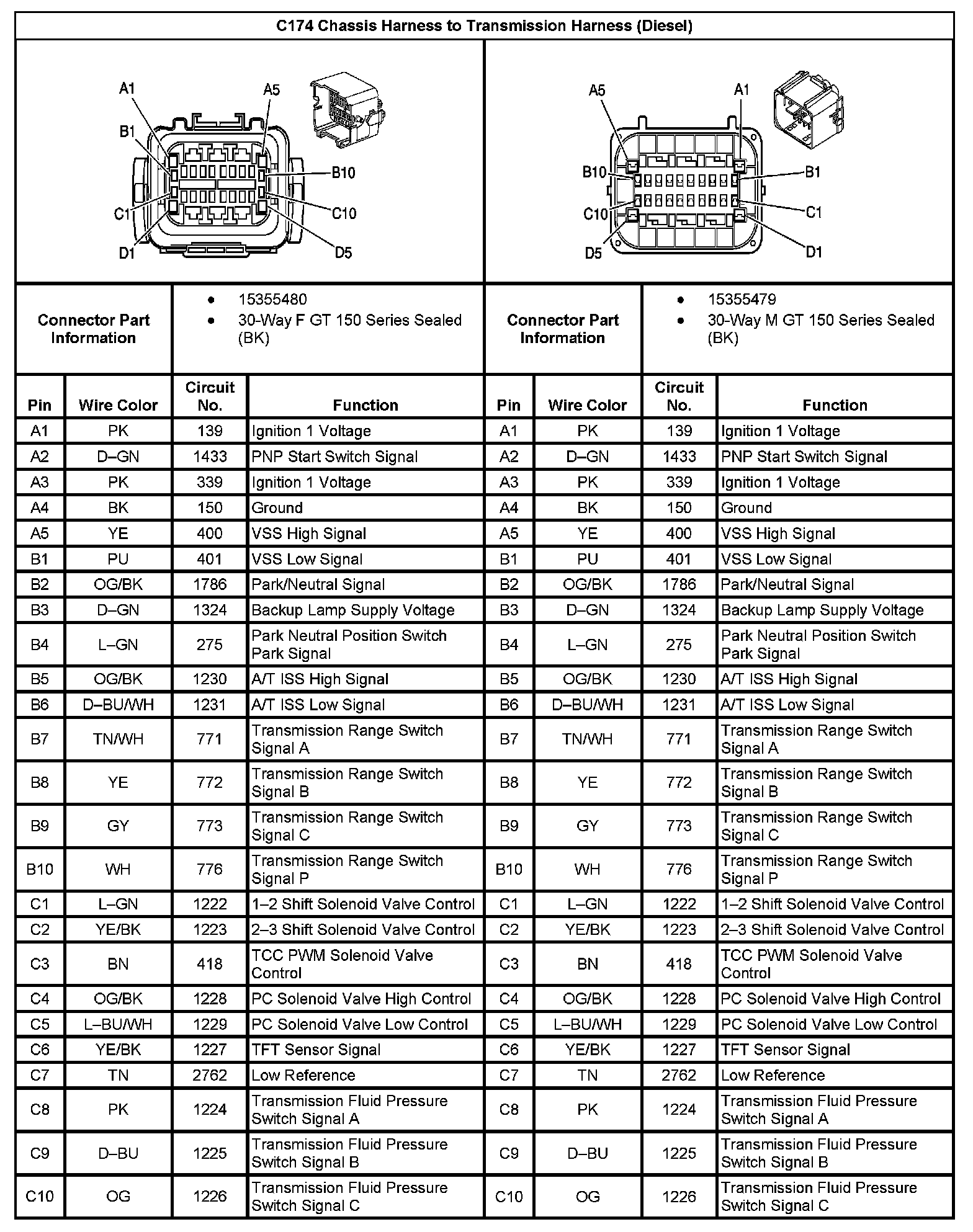

C174 Chassis Harness to Transmission Harness (Part 2):
