Home >> Chevy Truck >> 2006 >> Express 3500 V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C100 - C199 >> C100

C100

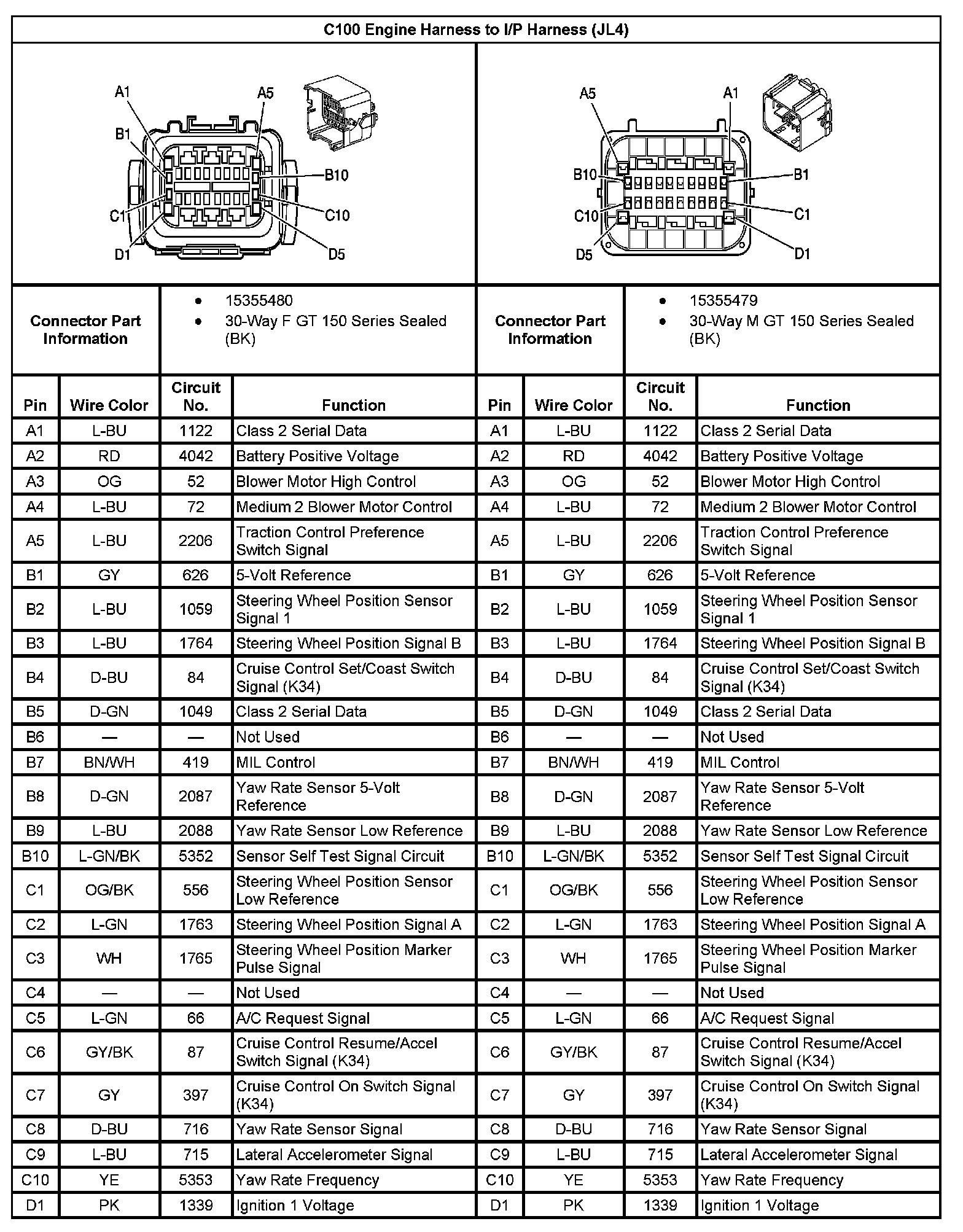

C100 I/P Harness to Engine Harness (With RPO Code JL4) (Part 1):



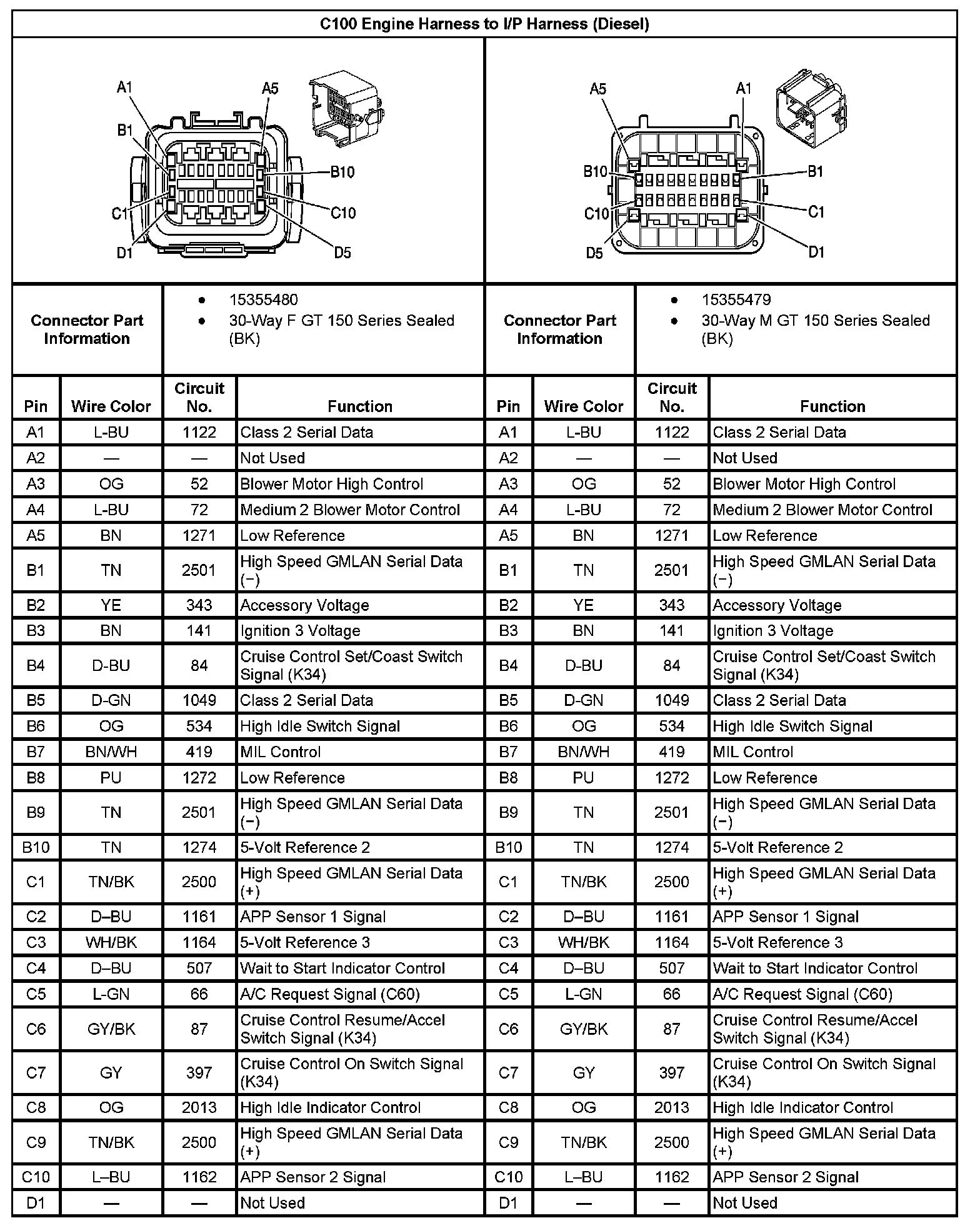

C100 I/P Harness To I/P Harness ( With RPO Code JL4) (Part 2):

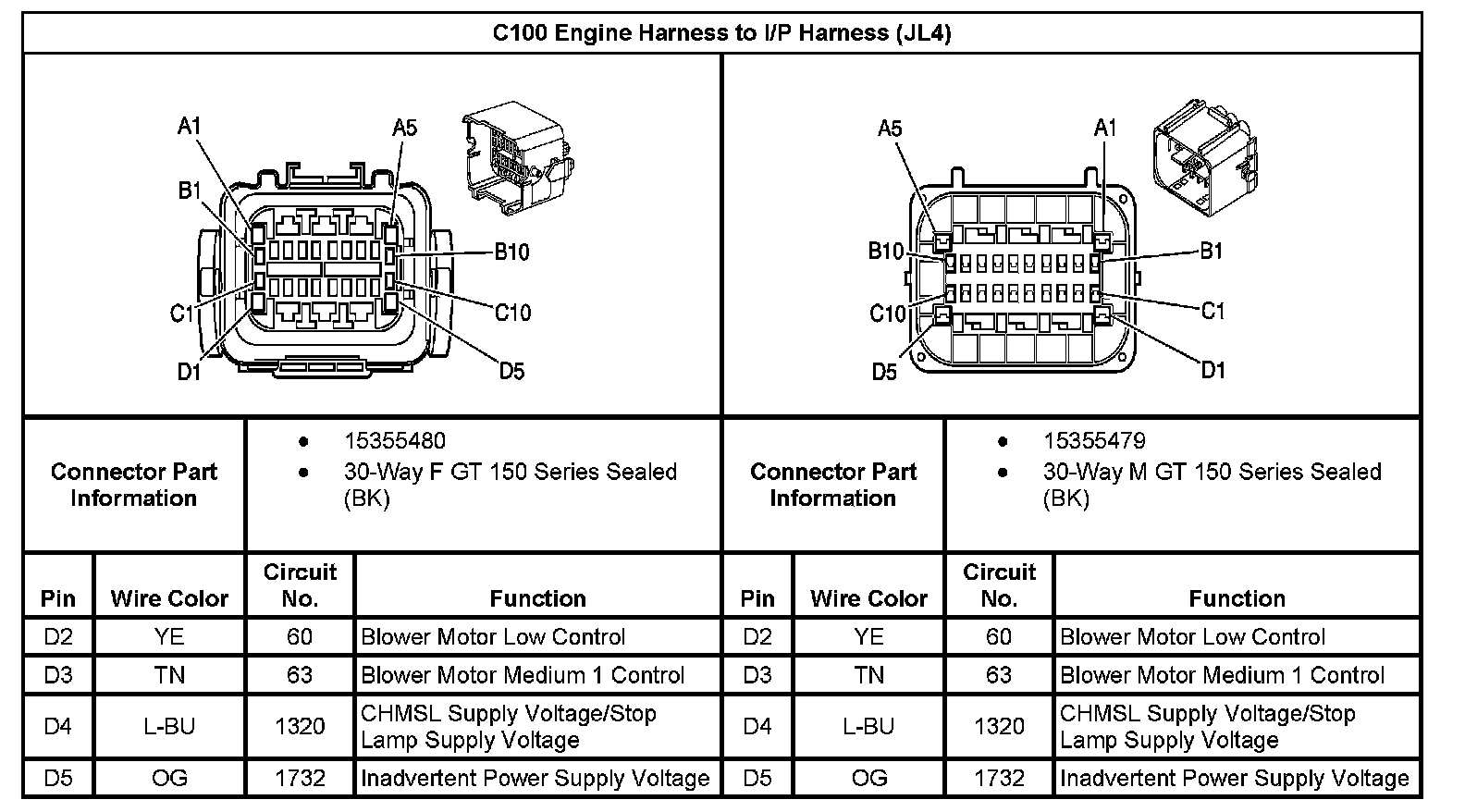

C100 I/P Harness to I/P Harness (Part 1):



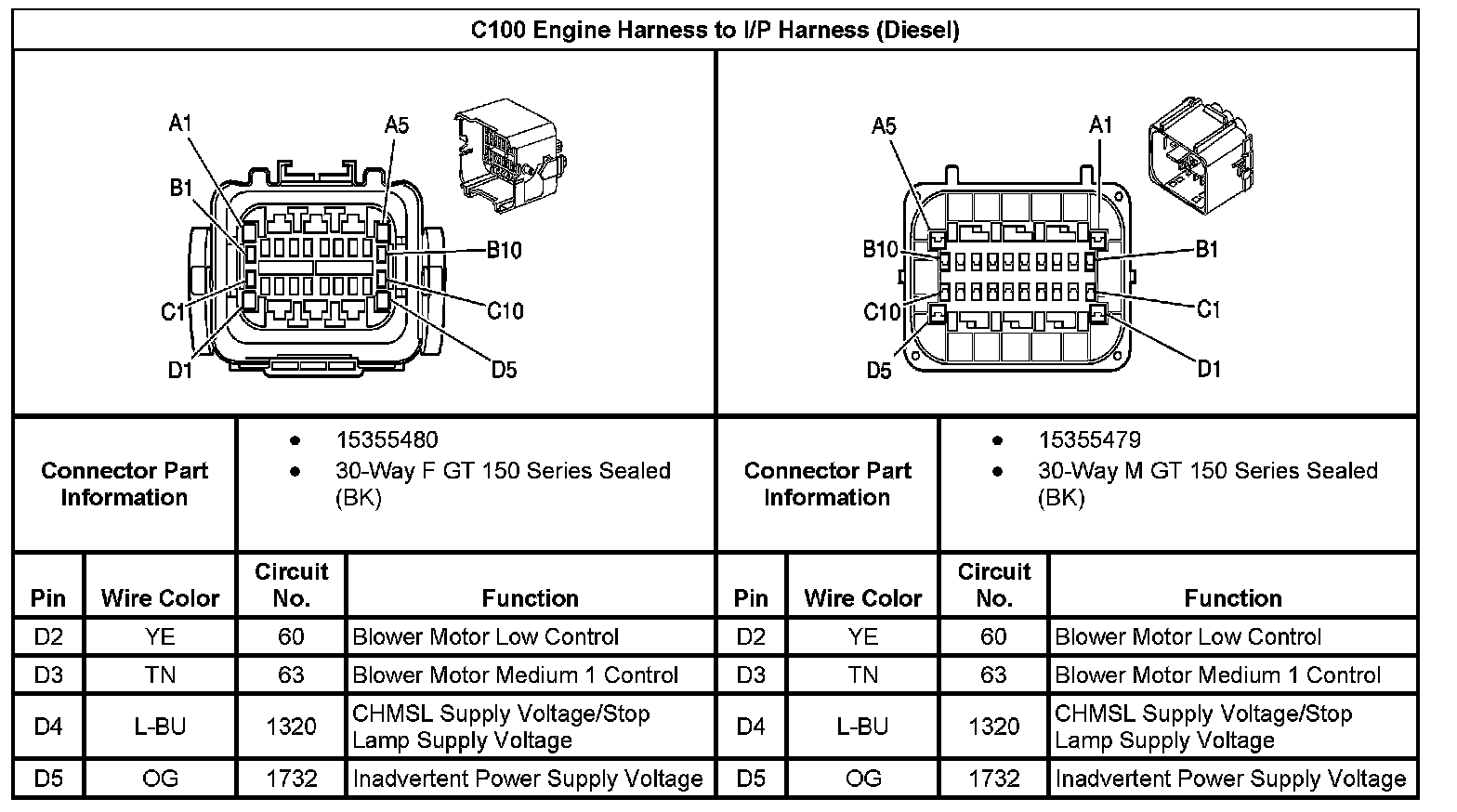

C100 I/P Harness to I/P Harness (Part 2):
