Home
>>
Chevy Truck
>>
2006
>>
Express 3500 V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor Relay
>>
Med Speed Blower Motor Relay - Auxiliary
Med Speed Blower Motor Relay - Auxiliary

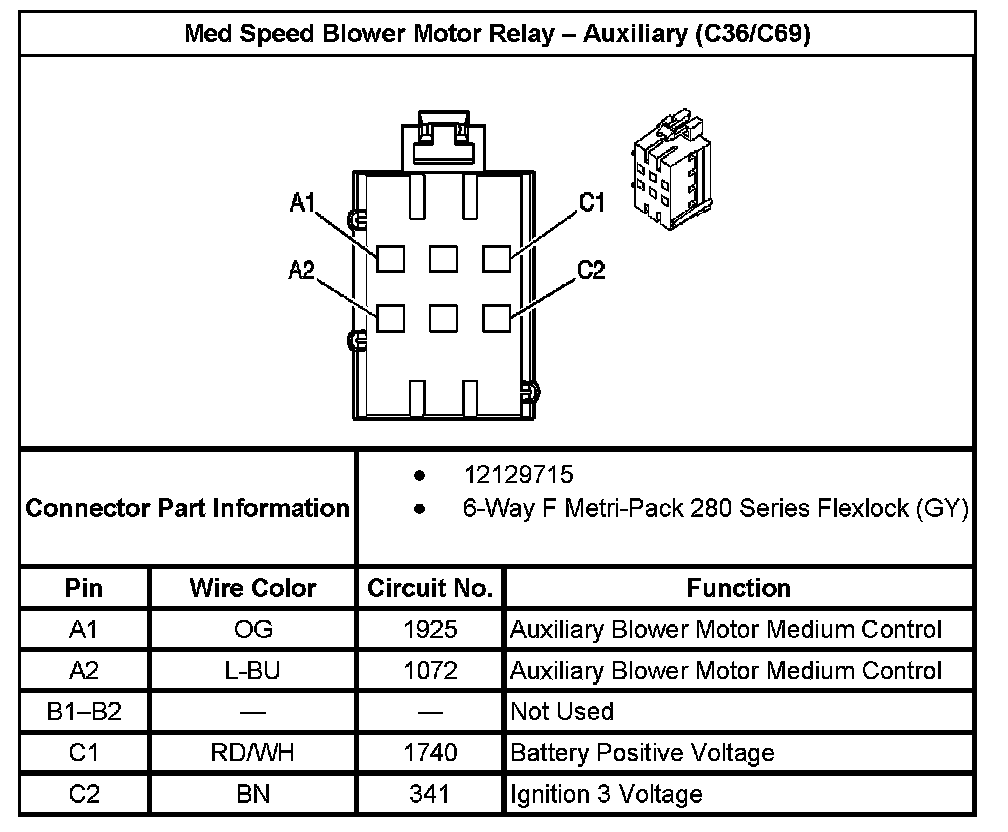

Med Speed Blower Motor Relay - Auxiliary (With RPO Code C36/C69):
