Blower Motor Relay
>>
High Speed Blower Motor Relay - Auxiliary
High Speed Blower Motor Relay - Auxiliary

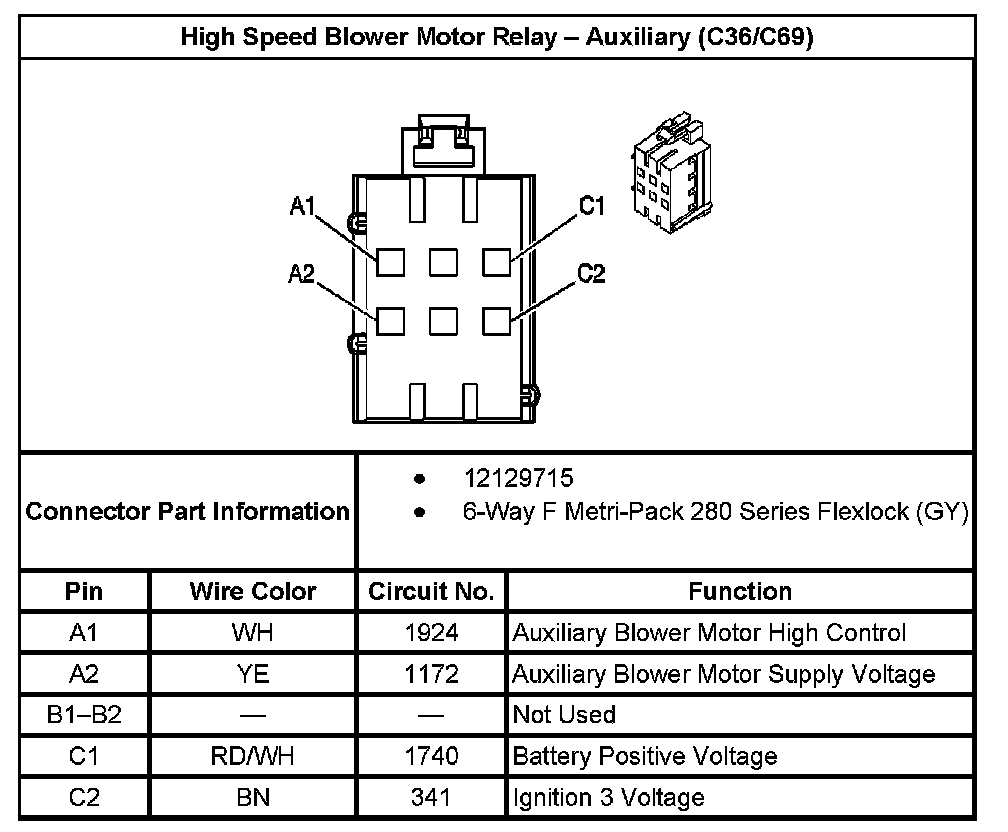

High Speed Blower Motor Relay - Auxiliary (With RPO Code C36/C69):
