2-3 Shift Solenoid (SS) Valve, Wiring Harness Side



Automatic Transmission Internal Connector End Views

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side

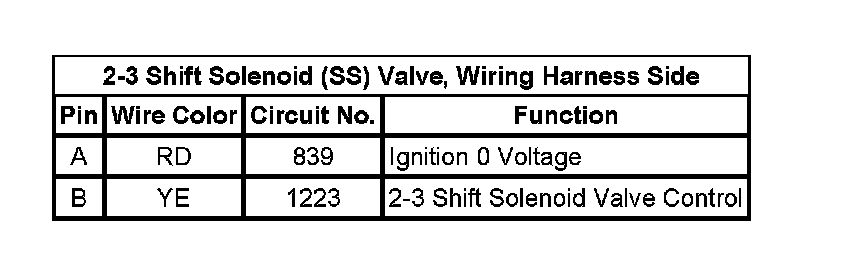

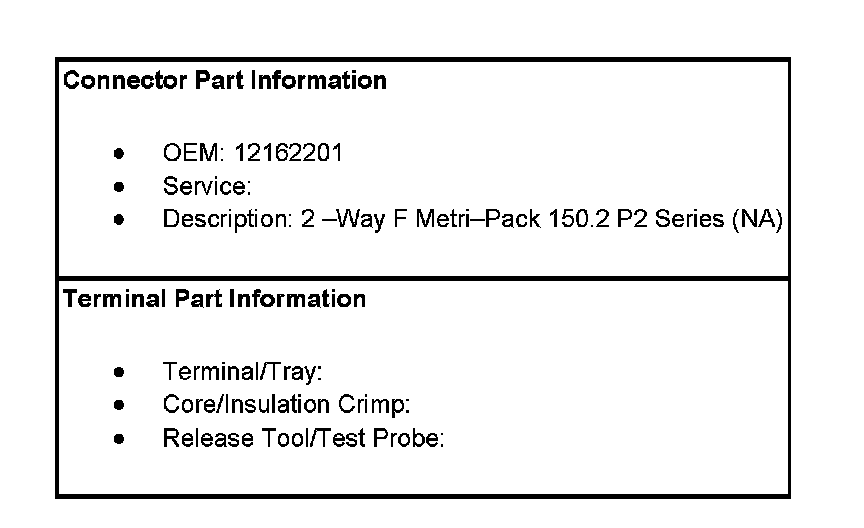

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side:
