1-2 Shift Solenoid (SS) Valve, Wiring Harness Side



Automatic Transmission Internal Connector End Views

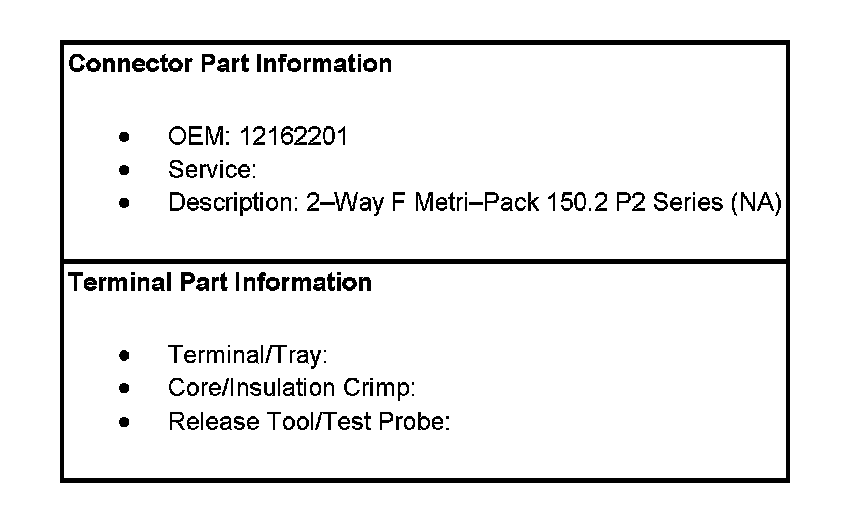

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side

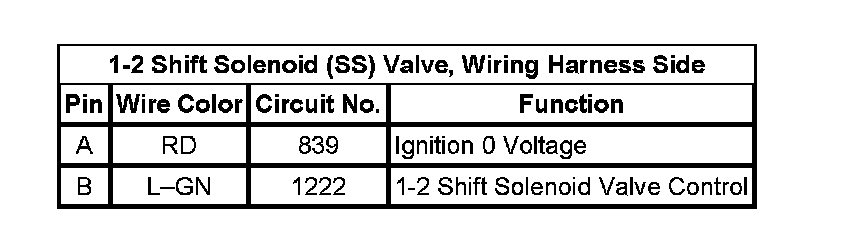

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side:
