Air Door Actuator / Motor, HVAC
>>
Mode Actuator - Auxiliary
Mode Actuator - Auxiliary

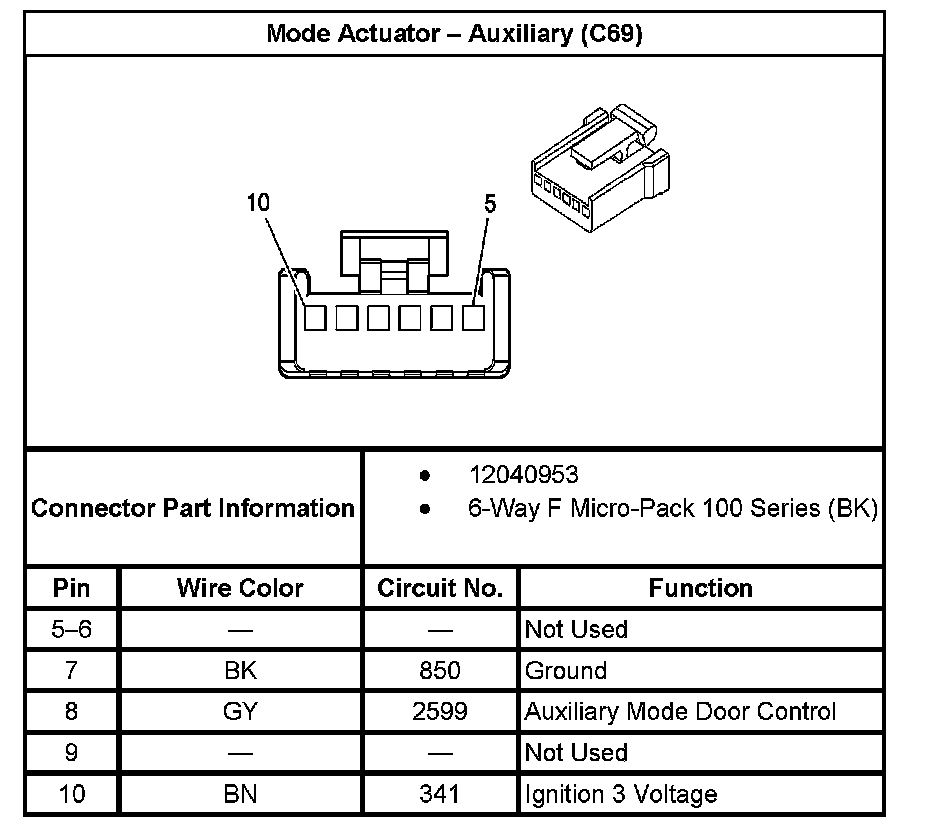

Motor Actuator - Auxiliary (With RPO Code C69):
