Inflatable Restraint Steering Wheel Module

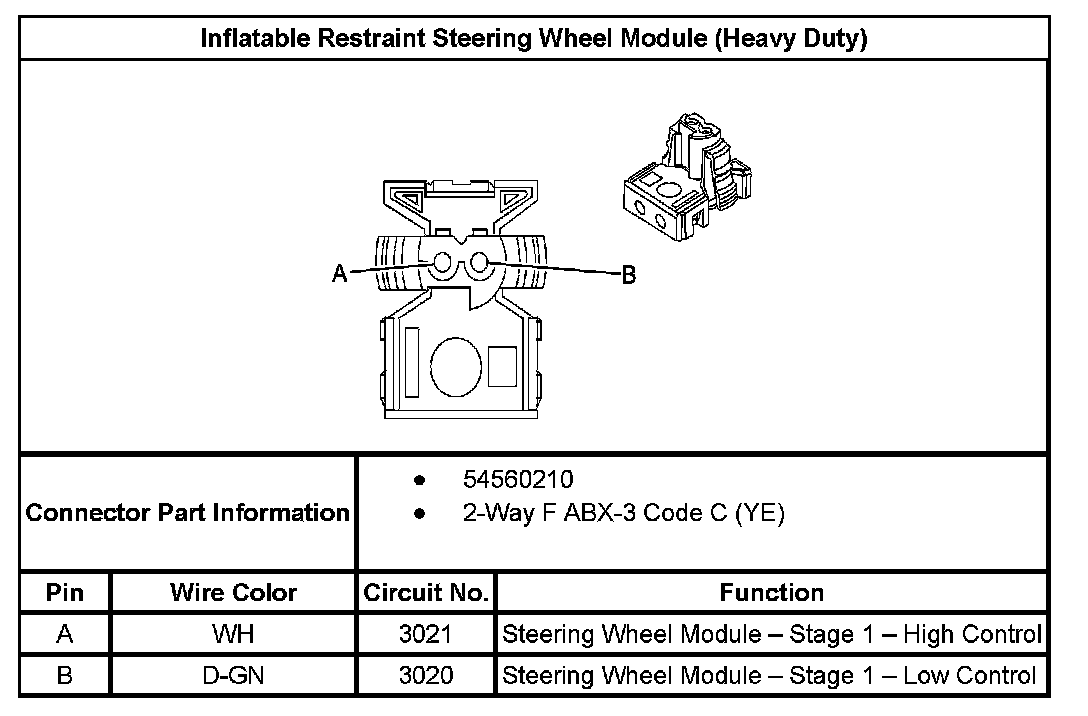

Inflatable Restraint Steering Wheel Module (Heavy Duty):

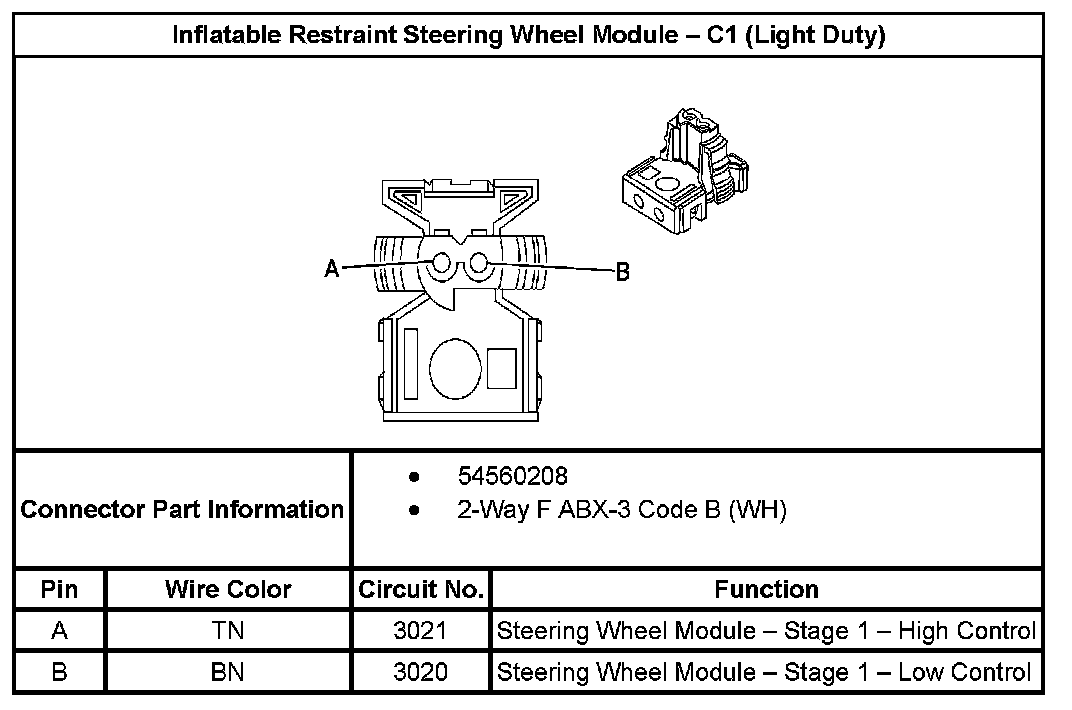

Inflatable Restraint Steering Wheel Module - C1 (Light Duty):



Inflatable Restraint Steering Wheel Module - C2 (Light Duty):
