Scan Tool Data List

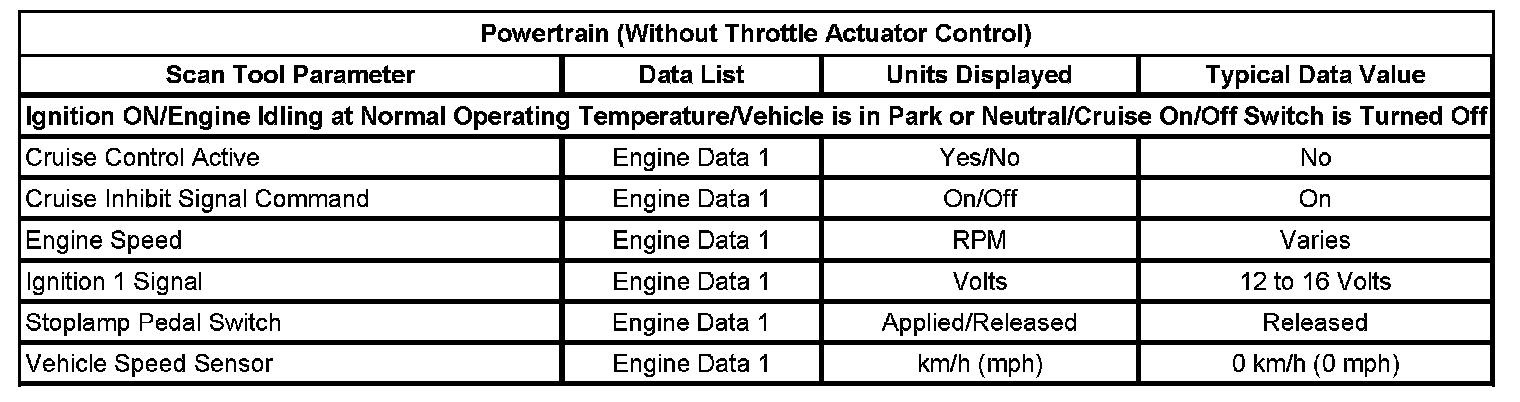

Powertrain (Without Throttle Actuator Control):

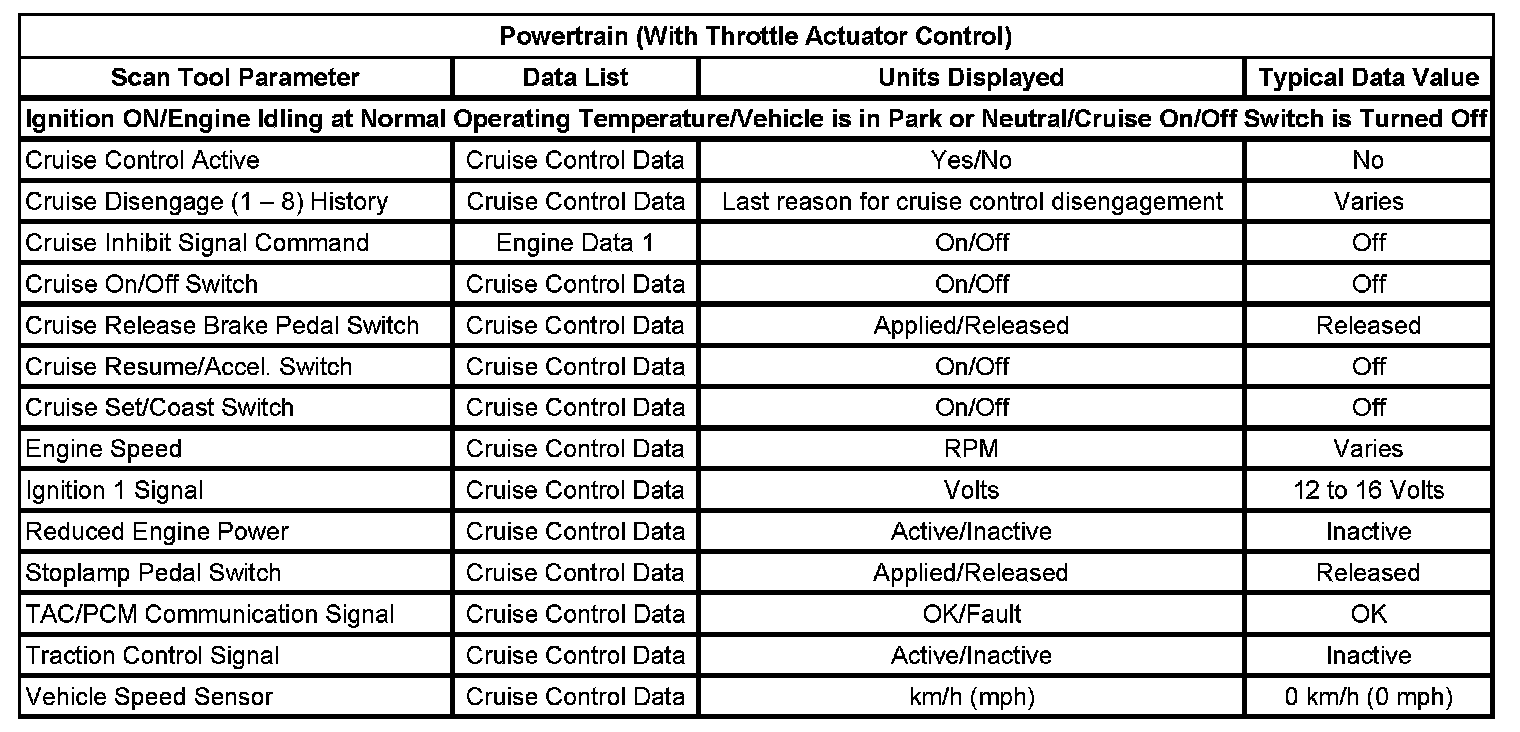

Powertrain (With Throttle Actuator Control):
