Power Brake Booster Outlet Hose Replacement

Power Brake Booster Outlet Hose Replacement
Removal Procedure





1. Notice: Refer to Power Steering Hose Disconnected Notice in Service Precautions.

Install a drain pan under the vehicle.
2. Siphon the power steering fluid from the reservoir to prevent excessive spillage.

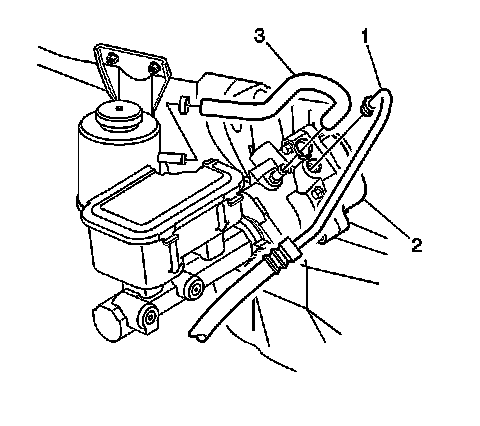

3. Remove the power brake booster outlet hose (1) from the power brake booster (2).





4. Remove the power brake booster outlet hose from the power steering gear (2).
5. Remove the power brake booster outlet hose from the vehicle.

Installation Procedure

1. Notice: Refer to Installing Hoses Without Twists or Bends Notice in Service Precautions.

Route the hose in the same position the hose occupied prior to removal.





2. Notice: Refer to Fastener Notice in Service Precautions.

Install the power brake booster outlet hose (1) to the power brake booster (2).
^ Tighten the hose fitting to 33 Nm (24 ft. lbs.).





3. Install the power brake booster outlet outlet hose to the power steering gear (2).
^ Tighten the hose fitting to 33 Nm (24 ft. lbs.).
4. Bleed the power steering system.
5. Remove the drain pan from under the vehicle.
