Disc Brake System Diagnosis

Disc Brake System Diagnosis

Test Description

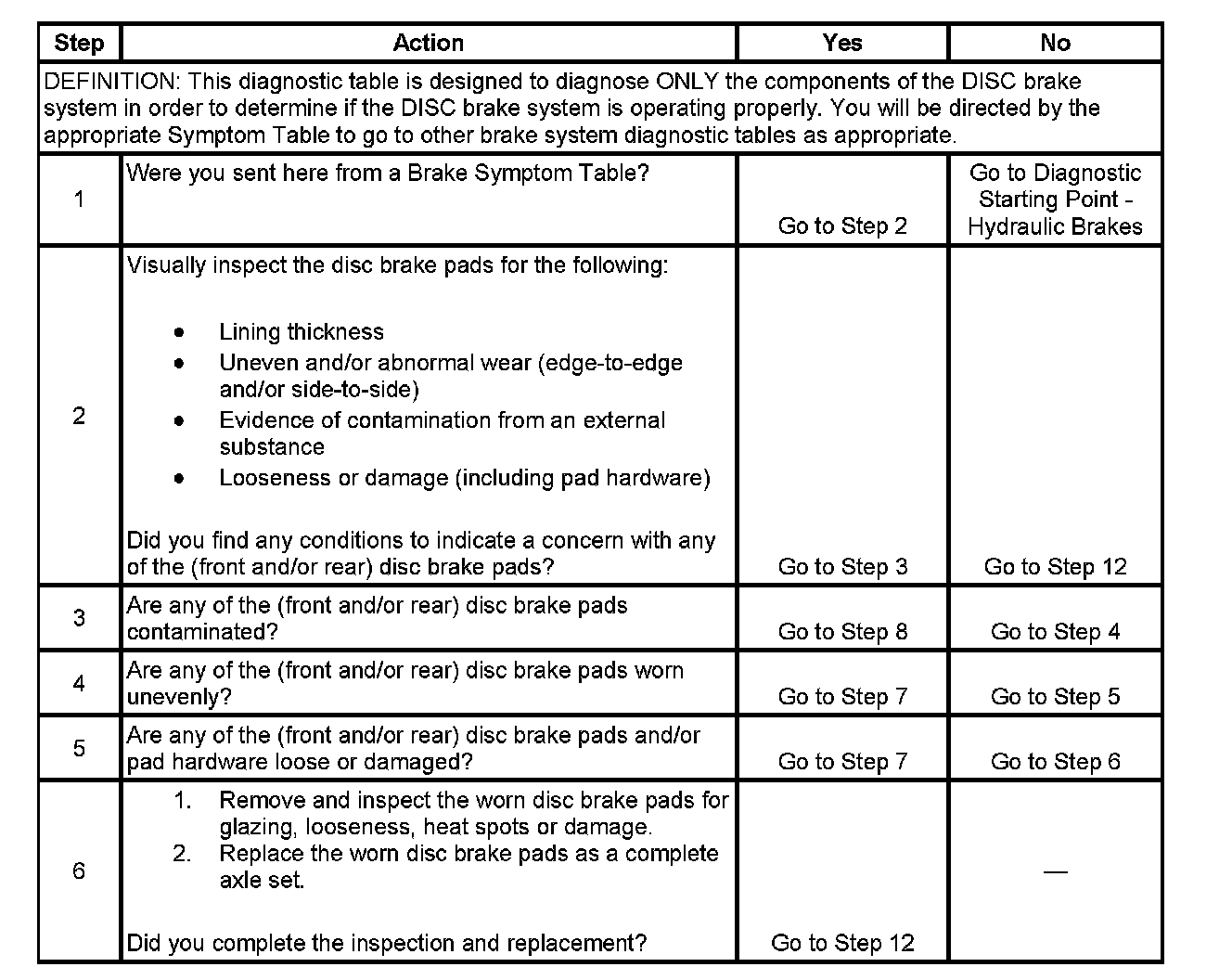

Steps 1-6:

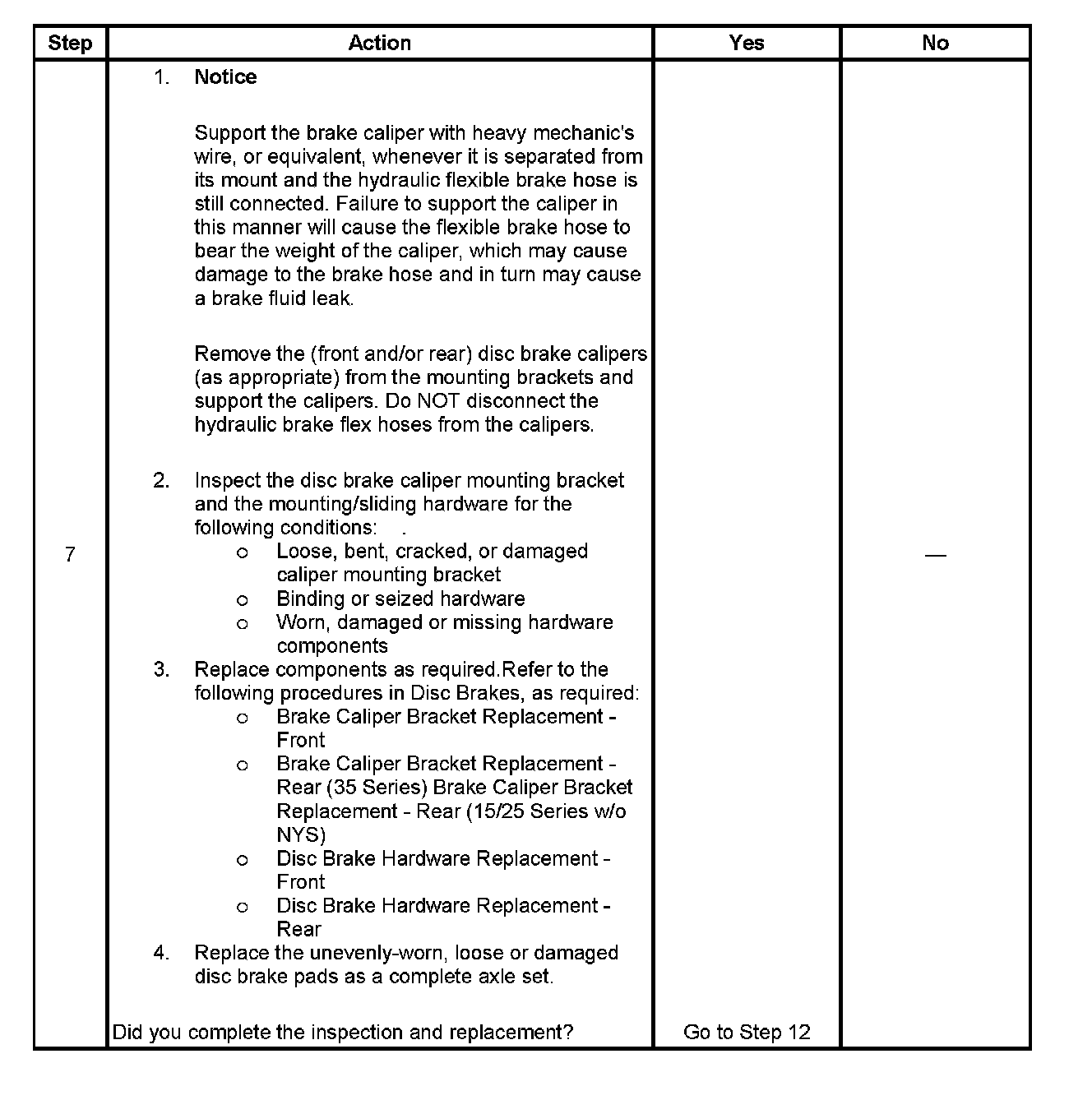

Step 7:

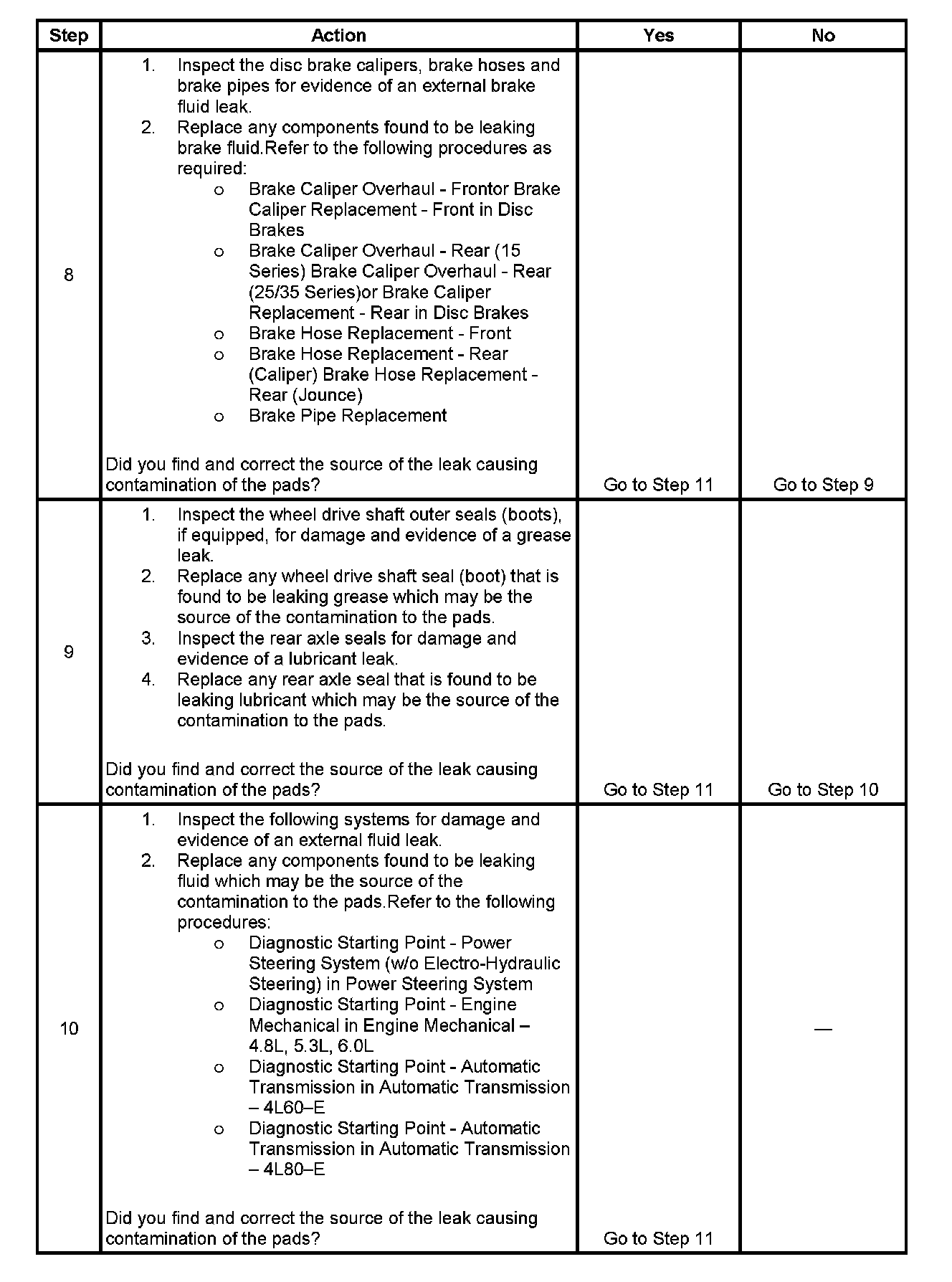

Steps 8-10:

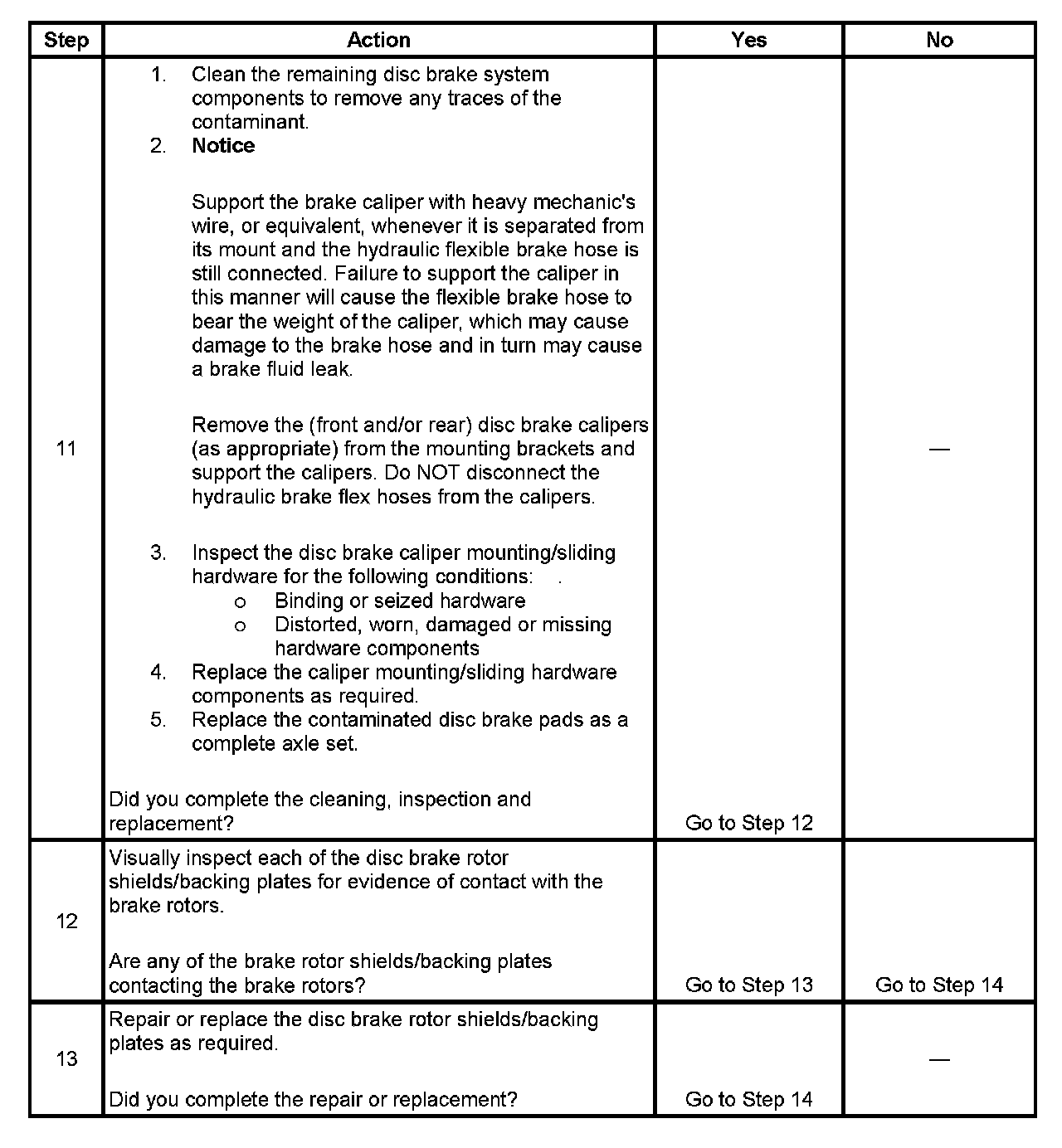

Steps 11-13:

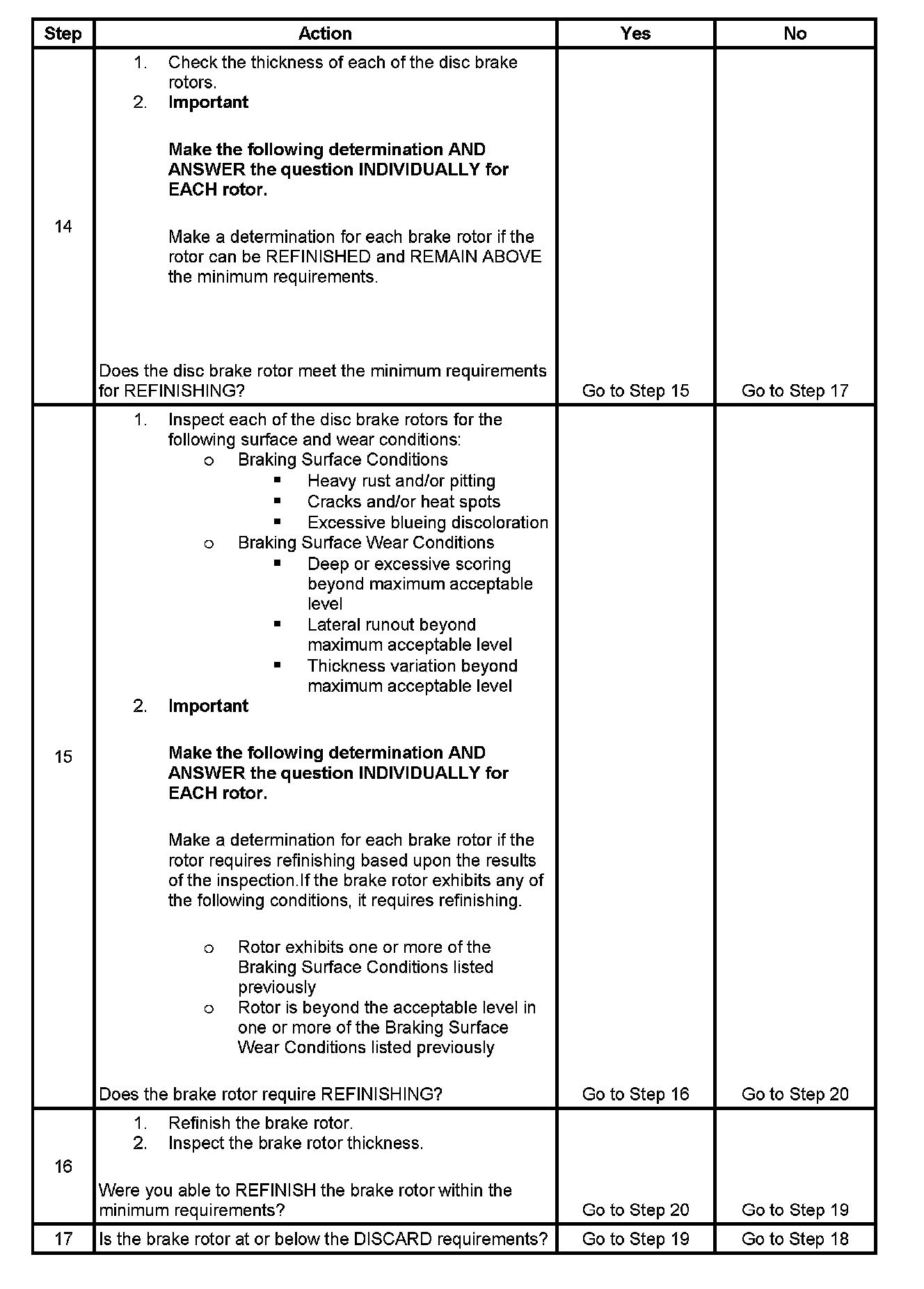

Steps 14-17:

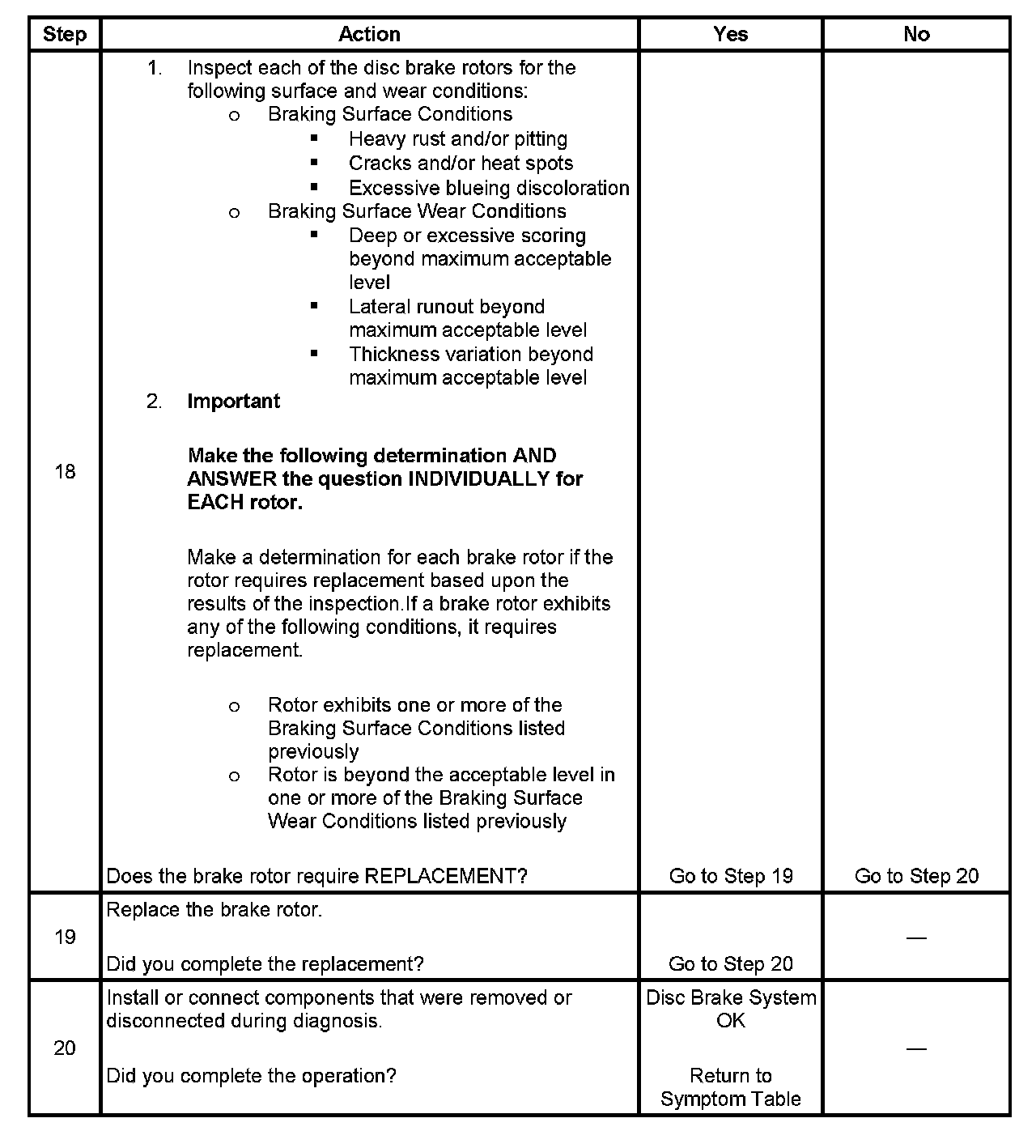

Steps 18-20:

The numbers below refer to the step numbers on the diagnostic table:
9. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
10. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
12. Disc brake rotor shields/backing plates that come in contact with disc brake rotors may cause brake system noise.
