Stability System Not Ready Indicator Inoperative
Stability System Not Ready Indicator Inoperative
Circuit Description
The instrument panel cluster (IPC) illuminates the stability system not ready indicator during the IPC bulb check or when the electronic brake control module (EBCM) sends a serial data message to the IPC commanding the indicator ON.
Diagnostic Aids
Replace the IPC if the stability system not ready indicator intermittently fails to illuminate during the bulb check.
Test Description

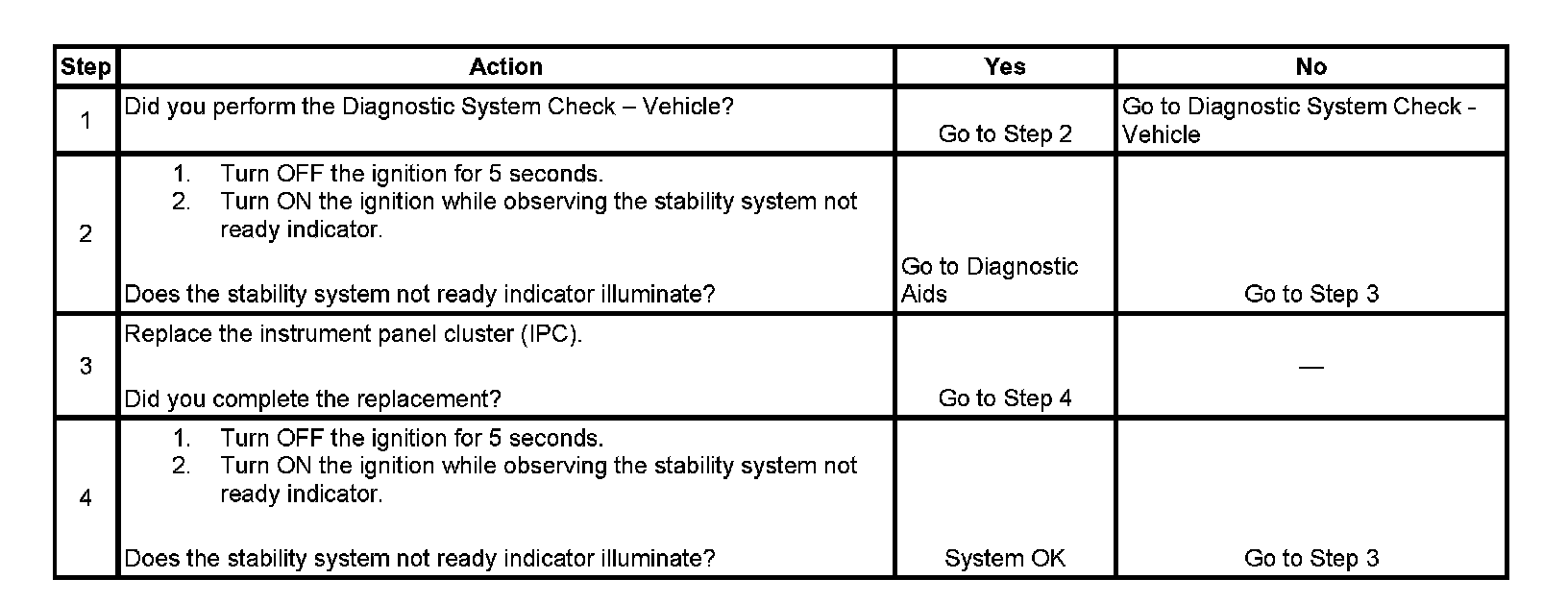

The number below refers to the step number on the diagnostic table.
2. This step tests if the IPC is able to illuminate the stability system not ready indicator during the bulb check.
