Headliner Replacement - Rear

Headliner Replacement - Rear

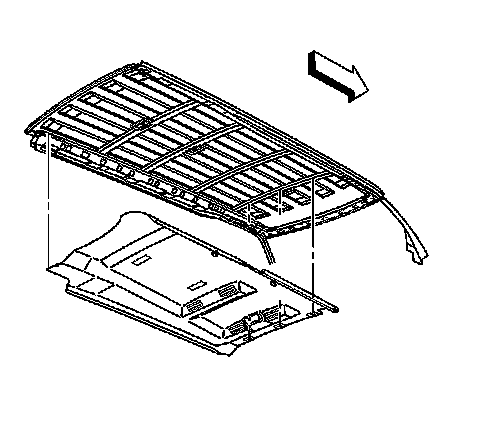

Removal Procedure

Caution: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.




1. Remove the rear passenger seats. Refer to Seat Replacement - Rear Bench (Seat Replacement - Rear Bench) in Seats.
2. Remove the front headliner. Refer to Headliner Replacement - Front (Service and Repair).
3. Remove the coat hooks. Refer to Coat Hook Replacement (Service and Repair).
4. Remove the left rear upper garnish molding. Refer to Garnish Molding Replacement - Left Body Side Upper (Removal and Replacement).
5. Remove the rear door garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper (Removal and Replacement).
6. Remove the rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner (Removal and Replacement).
7. Remove the upper seat belt anchor bolts.

* Refer to the following in Restraints:
* Seat Belt Retractor Replacement - No. 2 Left Rear
* Seat Belt Retractor Replacement - No. 2 Right Rear
* Seat Belt Retractor Replacement - No. 3 Left Rear
* Seat Belt Retractor Replacement - No. 3 Right Rear

8. Disconnect the electrical connectors.
9. Remove the headliner from the vehicle through the rear doors

Installation Procedure




1. Install the headliner to the vehicle.
2. Connect the electrical connectors.
3. Install the coat hooks. Refer to Coat Hook Replacement (Service and Repair).
4. Install the left rear upper garnish molding. Refer to Garnish Molding Replacement - Left Body Side Upper (Removal and Replacement).
5. Install the rear door garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper (Removal and Replacement).
6. Install the rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner (Removal and Replacement).
7. Install the upper seat belt anchor bolts.

* Refer to the following in Restraints:
* Seat Belt Retractor Replacement - No. 2 Left Rear
* Seat Belt Retractor Replacement - No. 2 Right Rear
* Seat Belt Retractor Replacement - No. 3 Left Rear
* Seat Belt Retractor Replacement - No. 3 Right Rear

8. Install the front headliner. Refer to Headliner Replacement - Front (Service and Repair).
9. Install the rear passenger seats. Refer to Seat Replacement - Rear Bench (Seat Replacement - Rear Bench) in Seats.
