Lock Striker Replacement - Upper

Lock Striker Replacement - Upper

Removal Procedure




1. Remove the rear door opening frame garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper (Removal and Replacement) in Interior Trim.

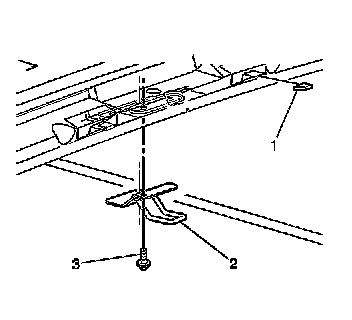

2. Remove the bolts (3) that retain the rear door upper striker (2) to the door opening.
3. Remove the rear door upper striker (2) from the door opening.

Installation Procedure




1. Install the rear door upper striker (2) to the door opening.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts (3) in order to retain the rear door upper striker (3) to the door opening.

Tighten
Tighten the rear door upper striker retaining bolts to 10 Nm (89 lb in).

3. Install the rear door opening frame garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper (Removal and Replacement) in Interior Trim.
