Powertrain Management: Locations

Harness Connector, Joint and Ground Locations

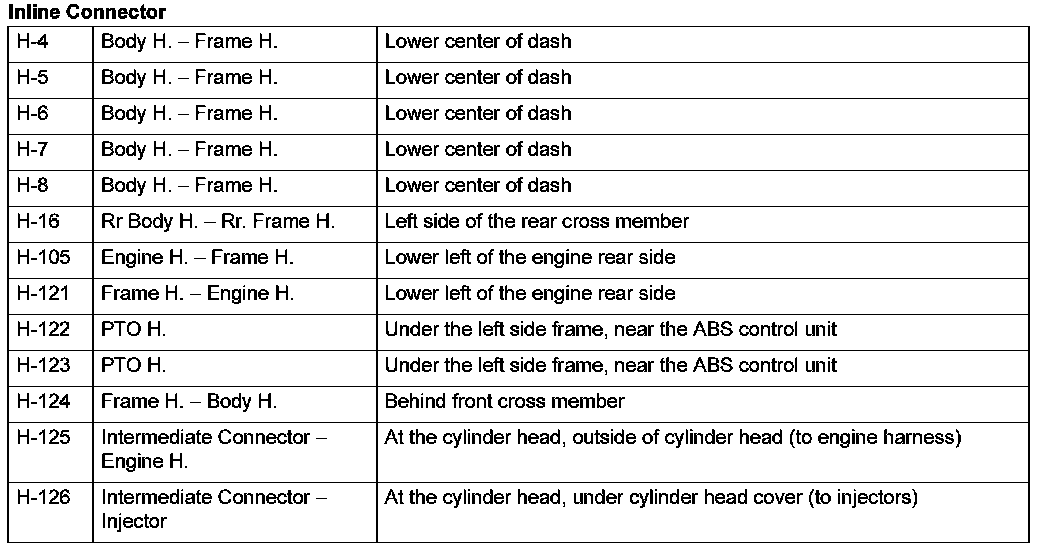

Inline Connectors:

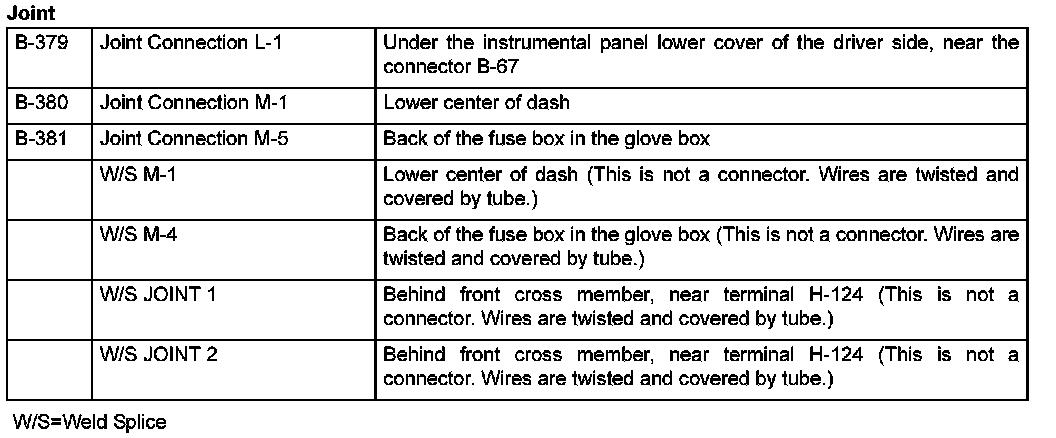

Joint Connectors:

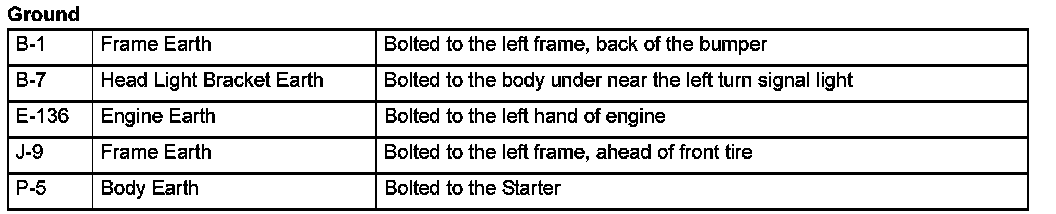

Grounds:

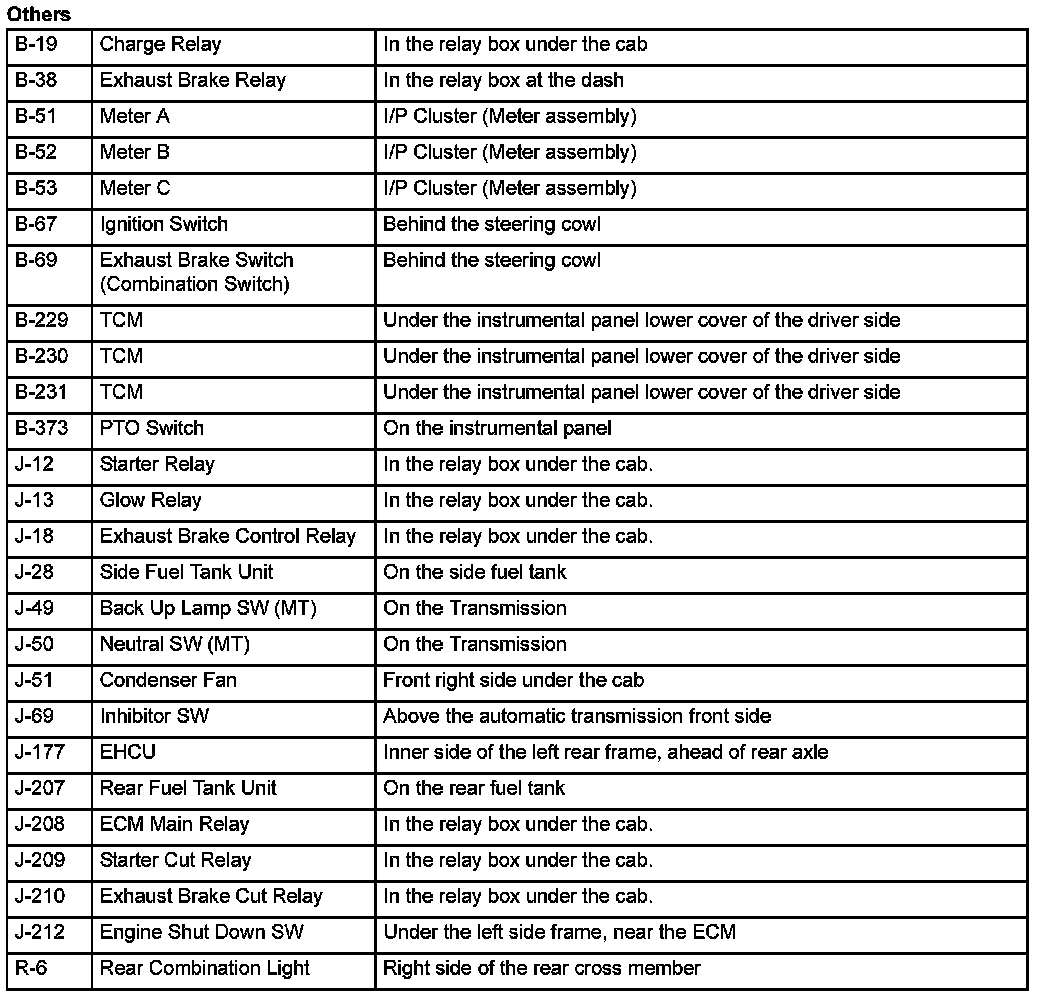

Others:

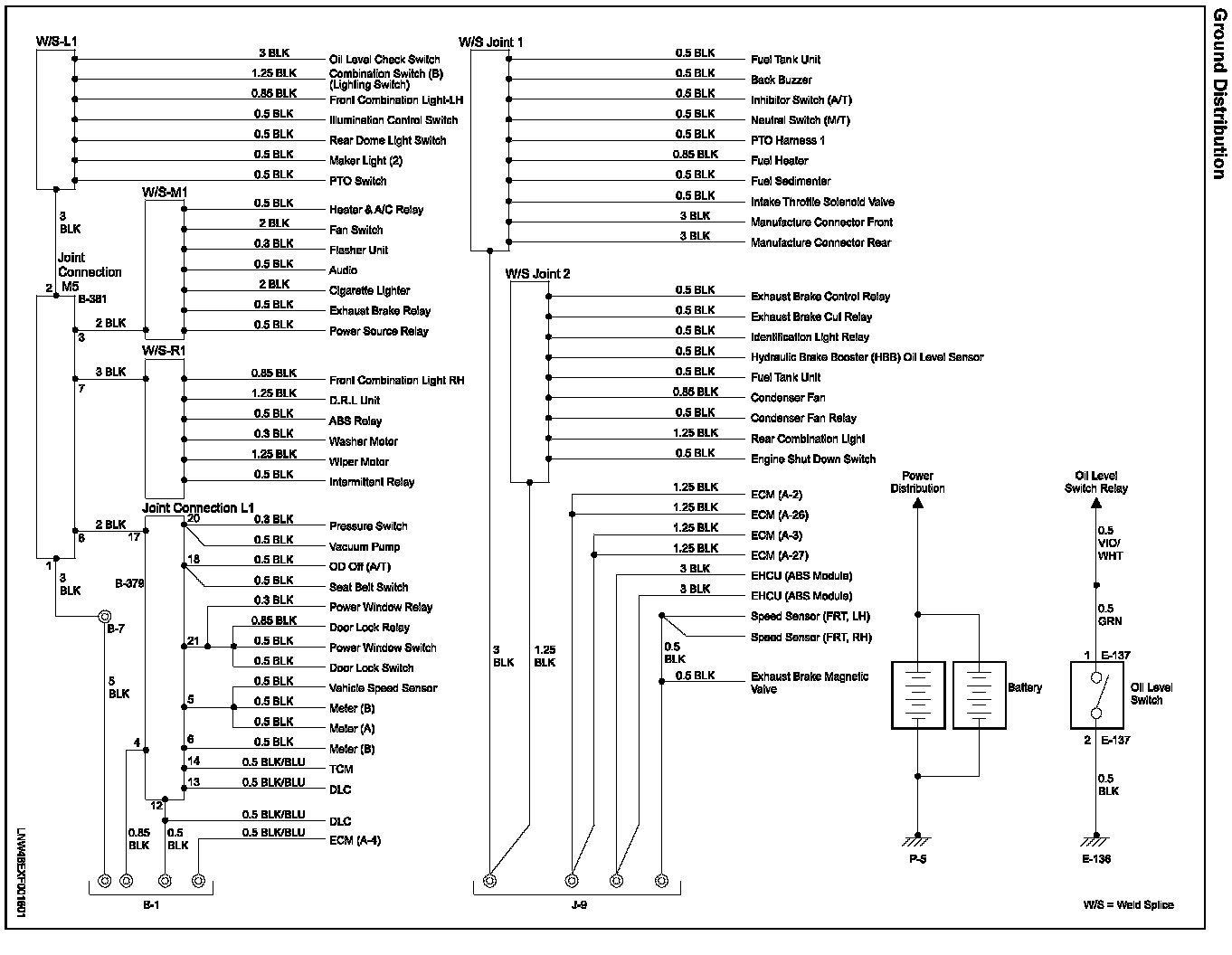

Ground Distribution:

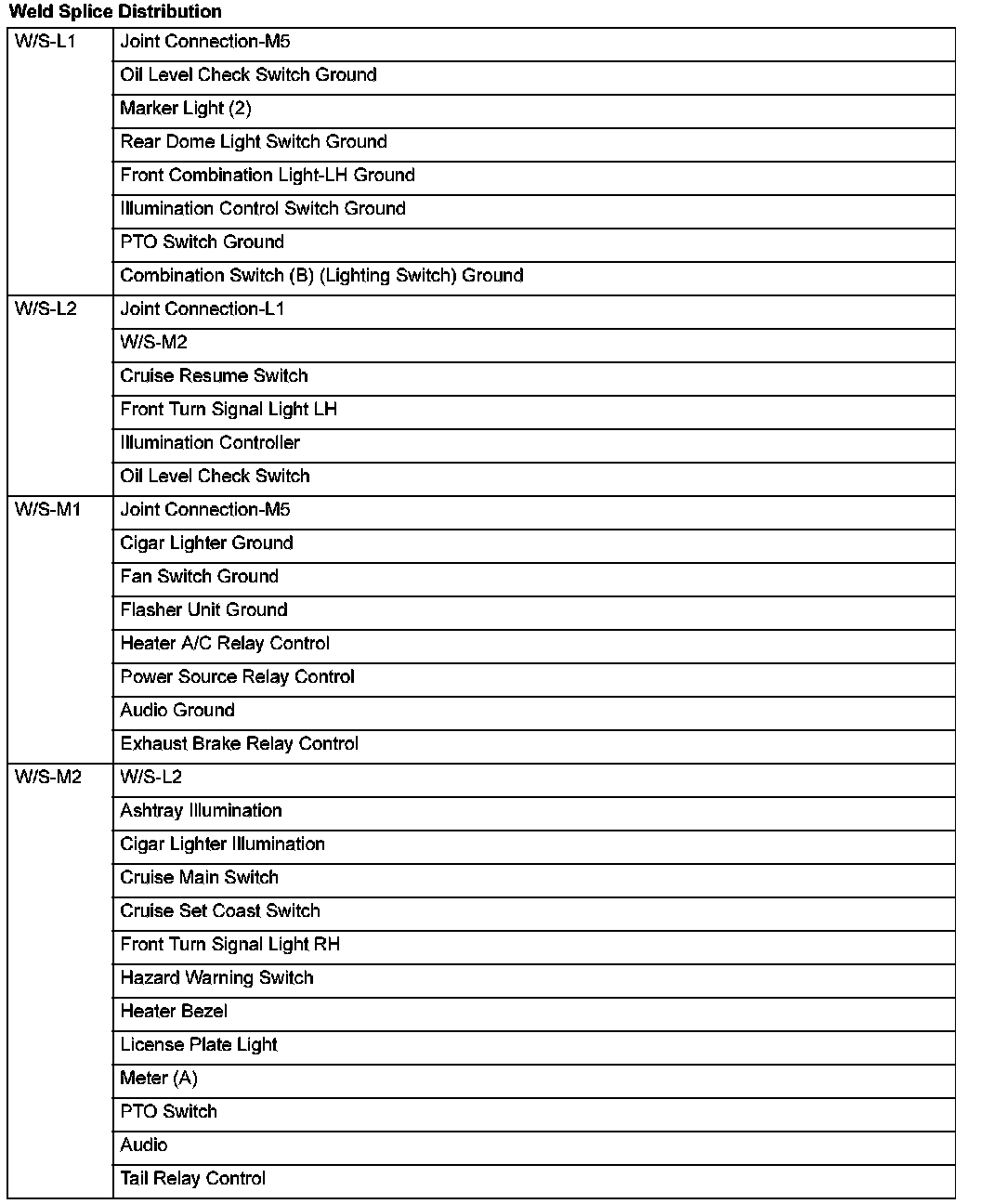

Weld Splice Distribution:

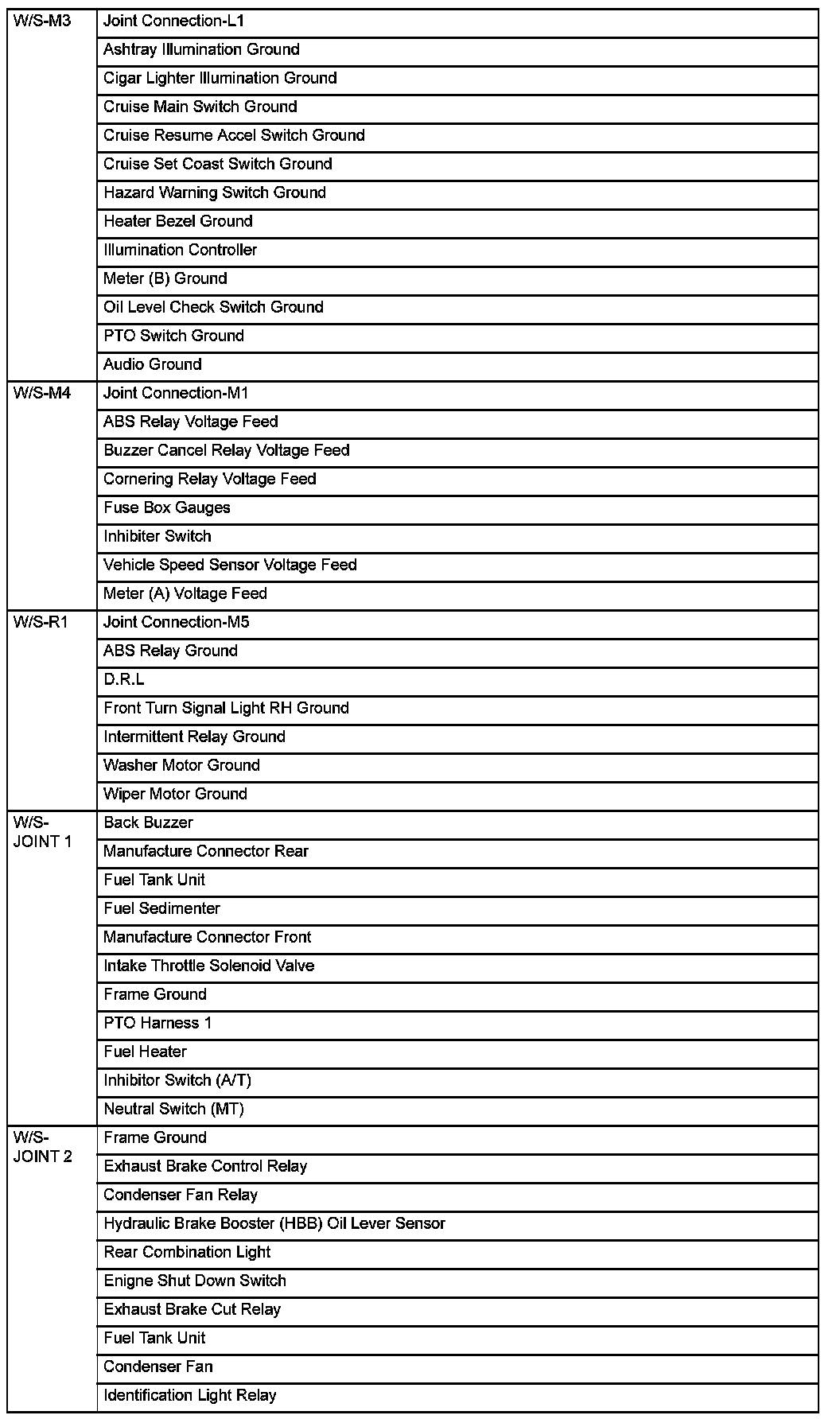

Weld Splice Distribution Con't:

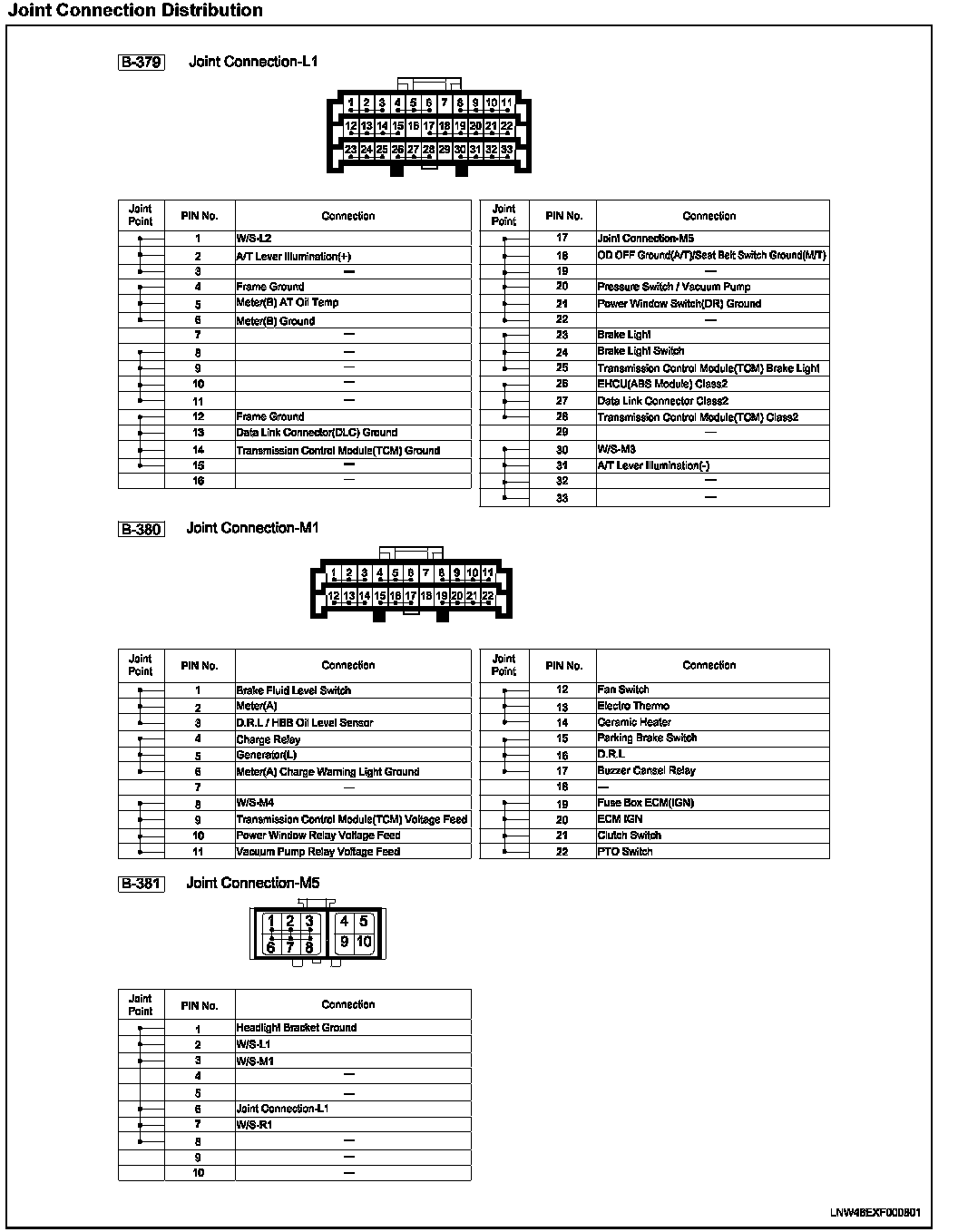

Joint Connection Distribution:
