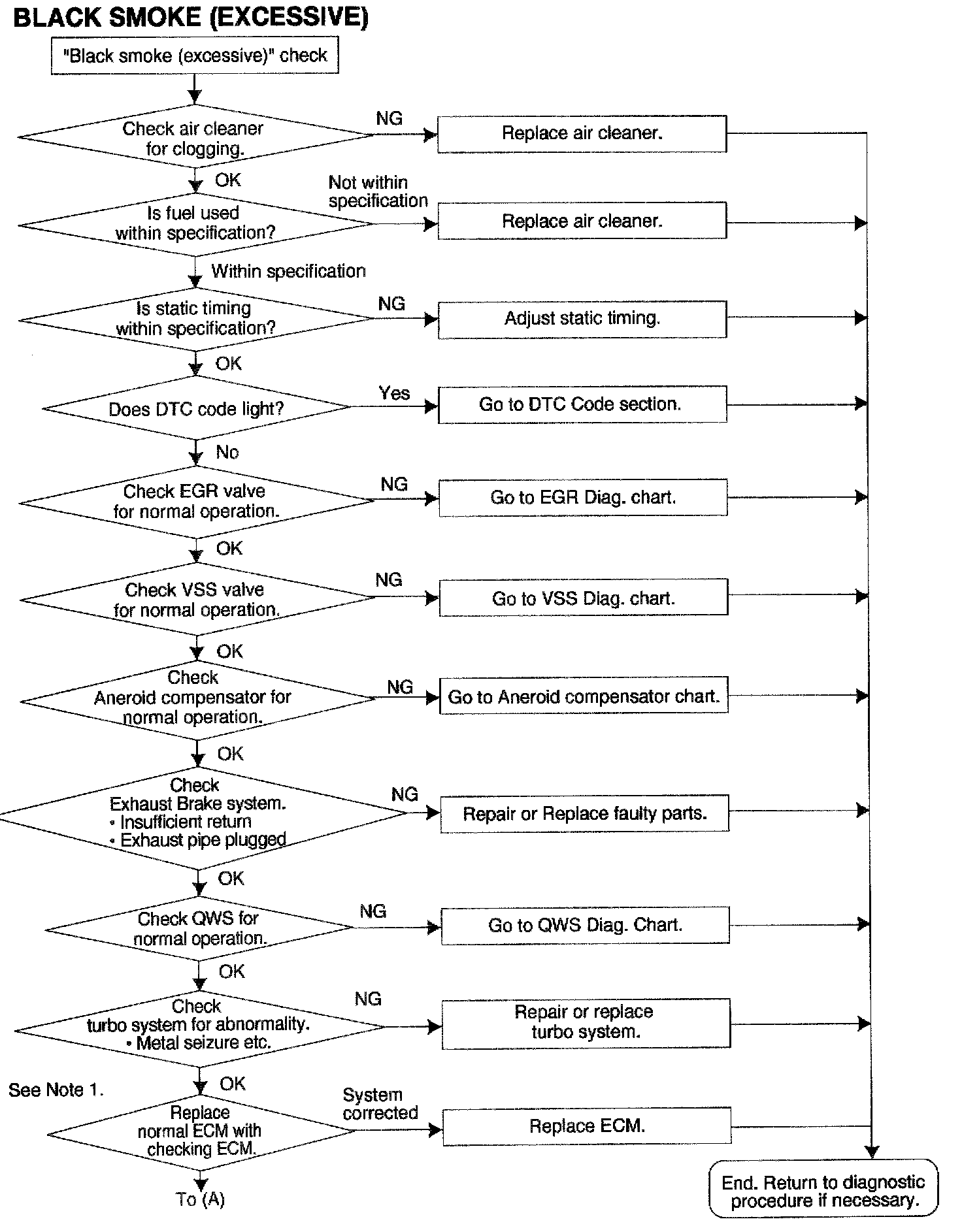

Black Smoke (Excessive)

Black Smoke (Excessive)

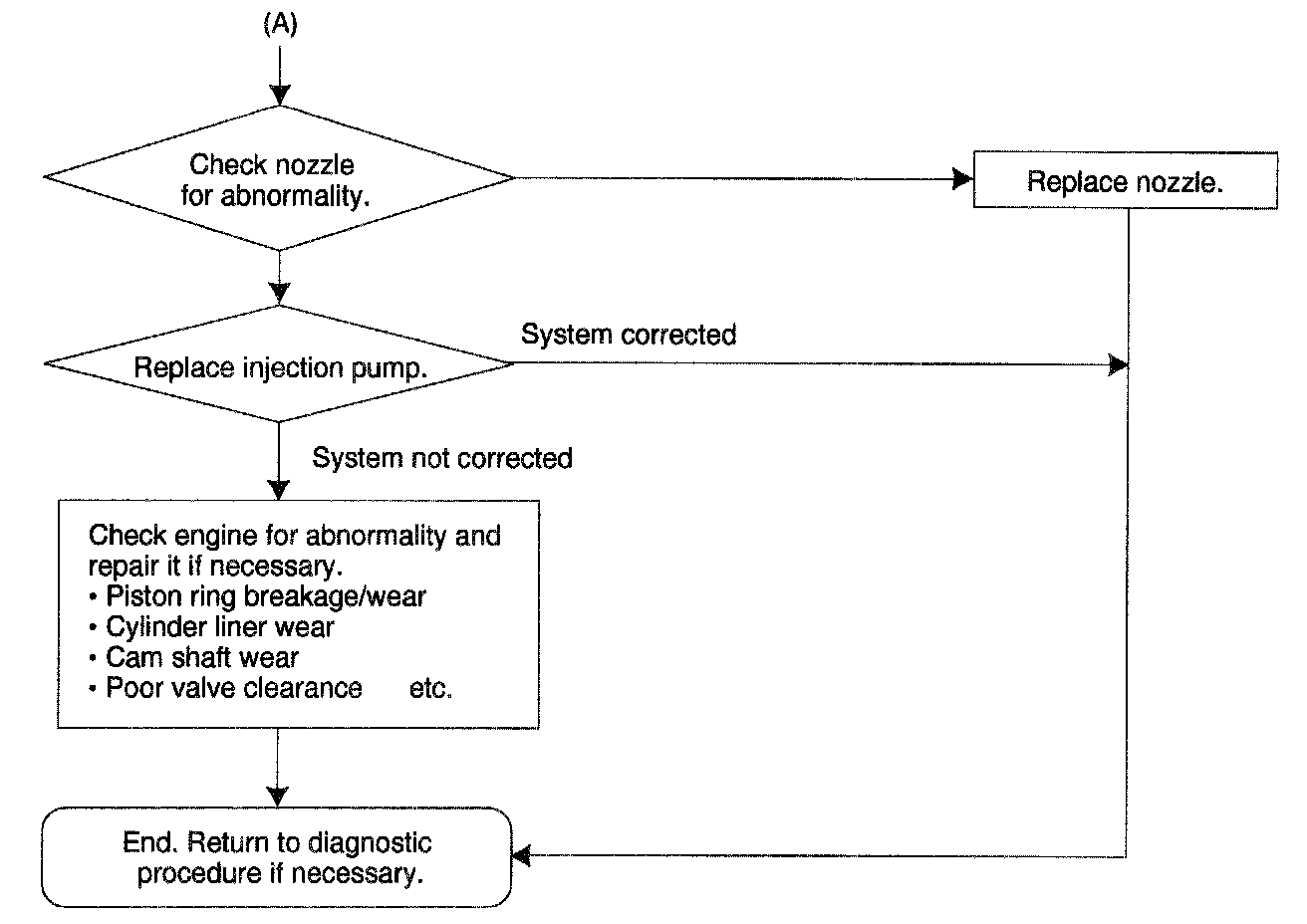

NOTE 1: The condition of the system in which the malfunction has occurred should be checked by making comparisons between the vehicle ECM and the checking EGM.

NOTE 2: Refer to a trouble code for a supplier's check, if available.
