Reassembly

Exhaust Brake

Reassembly

1. Mount the power chamber.

Tightening torque : 14 N.m (10 lb ft)

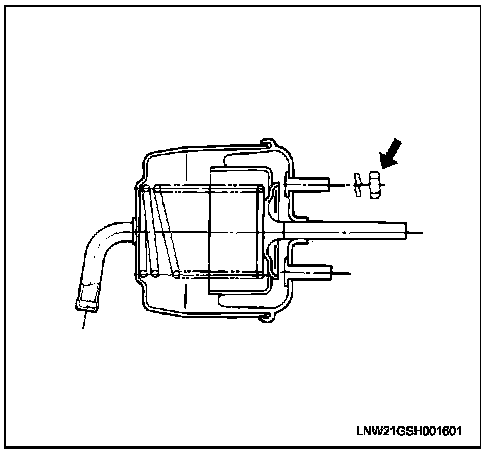

2. Mount the lock nuts.

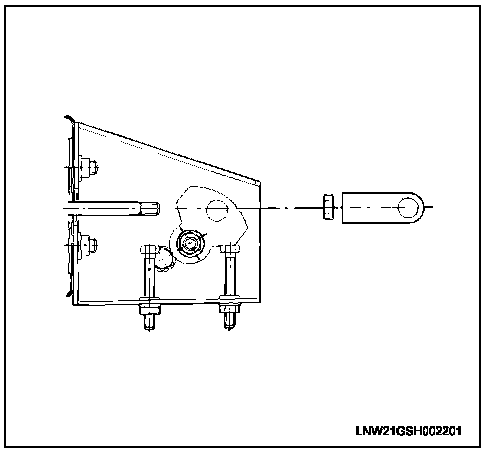

3. After mounting the clevis joint, tighten the lock nuts to the specified torque.

Tightening torque: 13 N.m (9 lb ft)







4. Mount the split pin.
