Installation
Exhaust BrakeInstallation

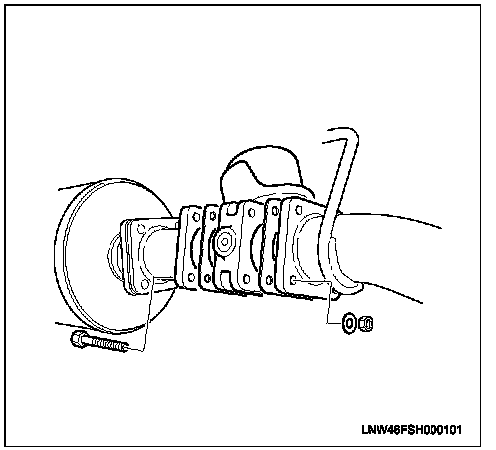

1. Mount the exhaust brake assembly.
Tightening torque: 17 N.m (12 lb ft)

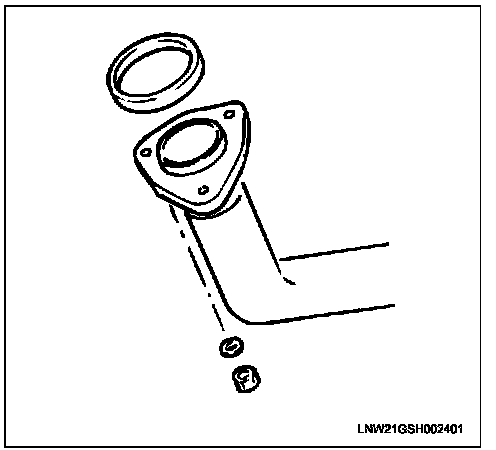

2. Mount the exhaust pipe.
3. Mount the nuts.
Tightening torque : 67 N.m (49 lb ft)
4. Mount the vacuum hose and the clips.
Installation
1. Mount the exhaust brake assembly.
Tightening torque: 17 N.m (12 lb ft)
2. Mount the exhaust pipe.
3. Mount the nuts.
Tightening torque : 67 N.m (49 lb ft)
4. Mount the vacuum hose and the clips.
