System Specifications





Engine Front Cover Bolt 10 Nm (89 inch lbs.)

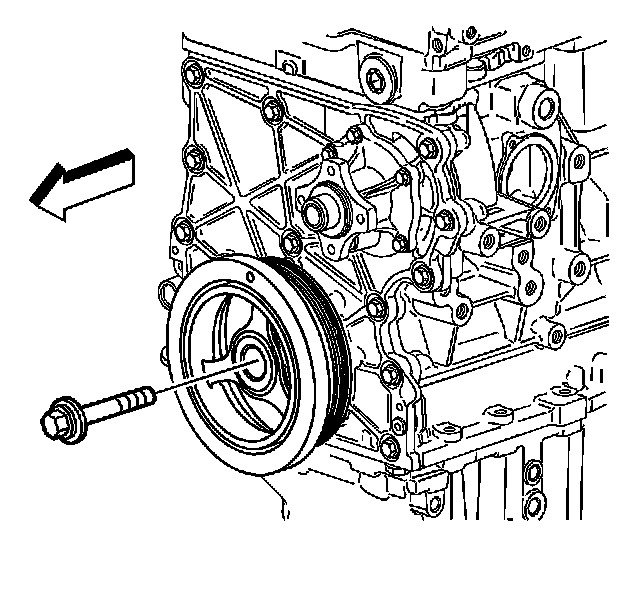

Crankshaft Balancer Bolt
^ First Pass 150 Nm (110.6 ft. lbs.)
^ Final Pass 180 degrees
