Chevy Truck
>>
2005
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Specifications
>>
Capacity Specifications
>>
Differential Assembly
>>
System Specifications
System Specifications

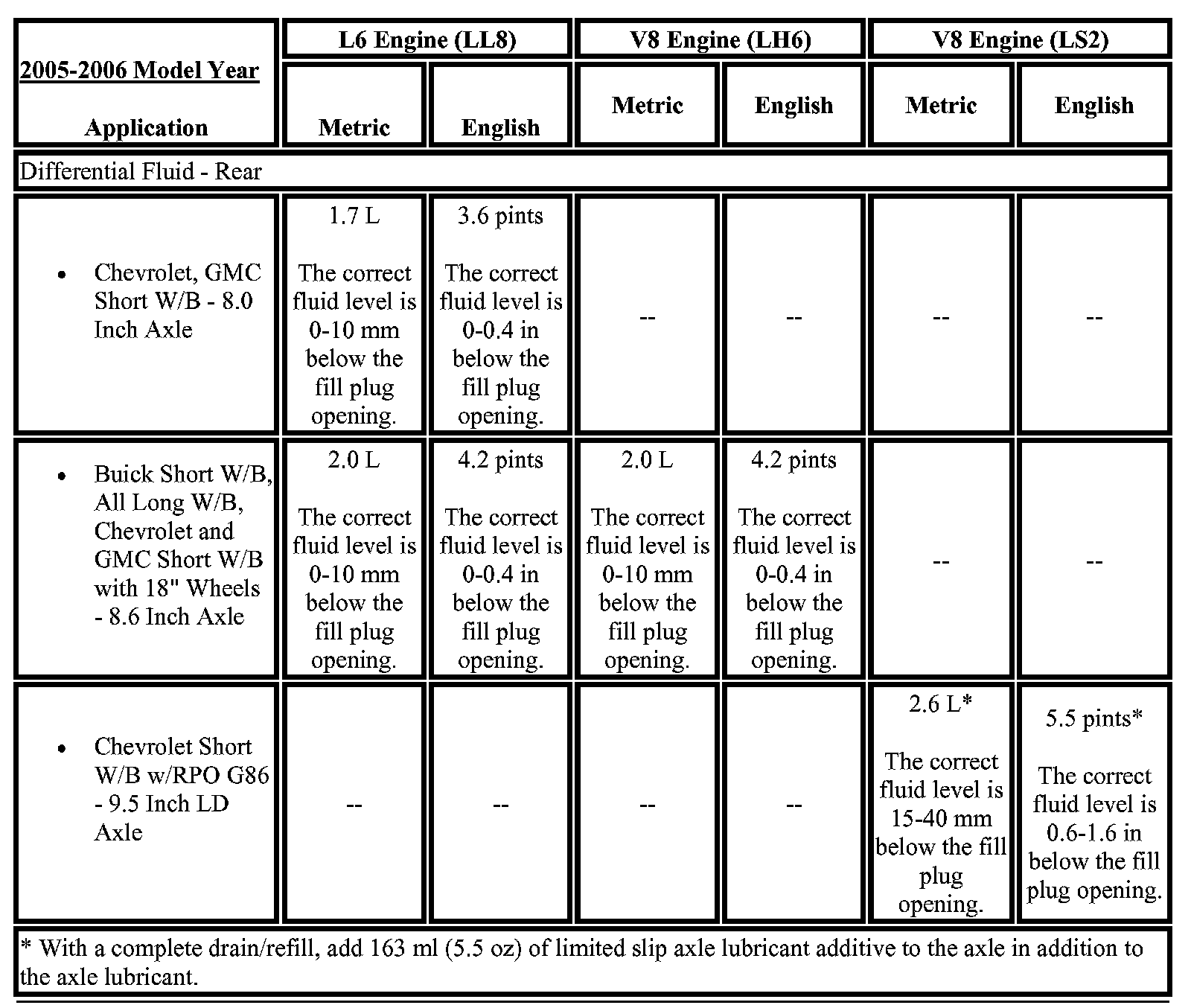

Rear Differential Fluid Capacity:
This article has been updated by TSB Manual Update #06-04-20-003 dated 10/10/2006.
