Vehicle Speed Sensor: Locations
VEHICLE SPEED SENSOR
With 2WD

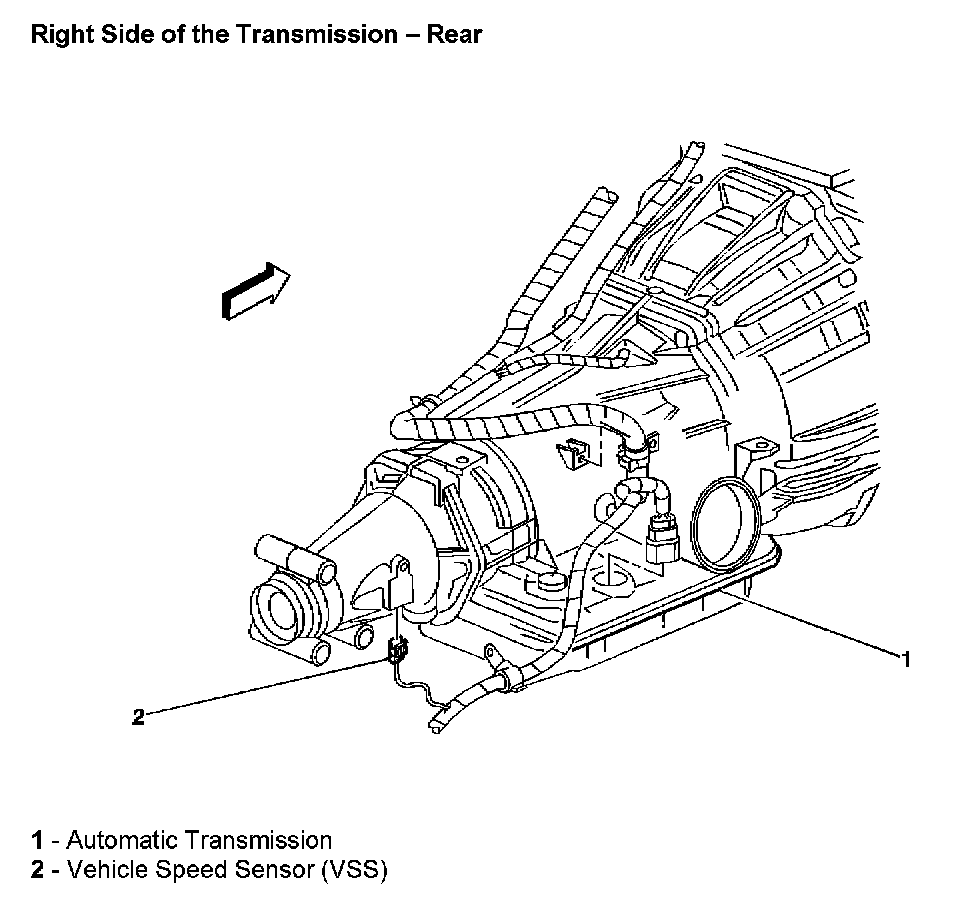

Right Side Of The Transmission - Rear:
With 4WD
Left Side Of The Transfer Case - Rear:
