Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 4WD V8-5.3L VIN Z Flex Fuel >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Switch >> Diagrams >> Liftglass Ajar Switch

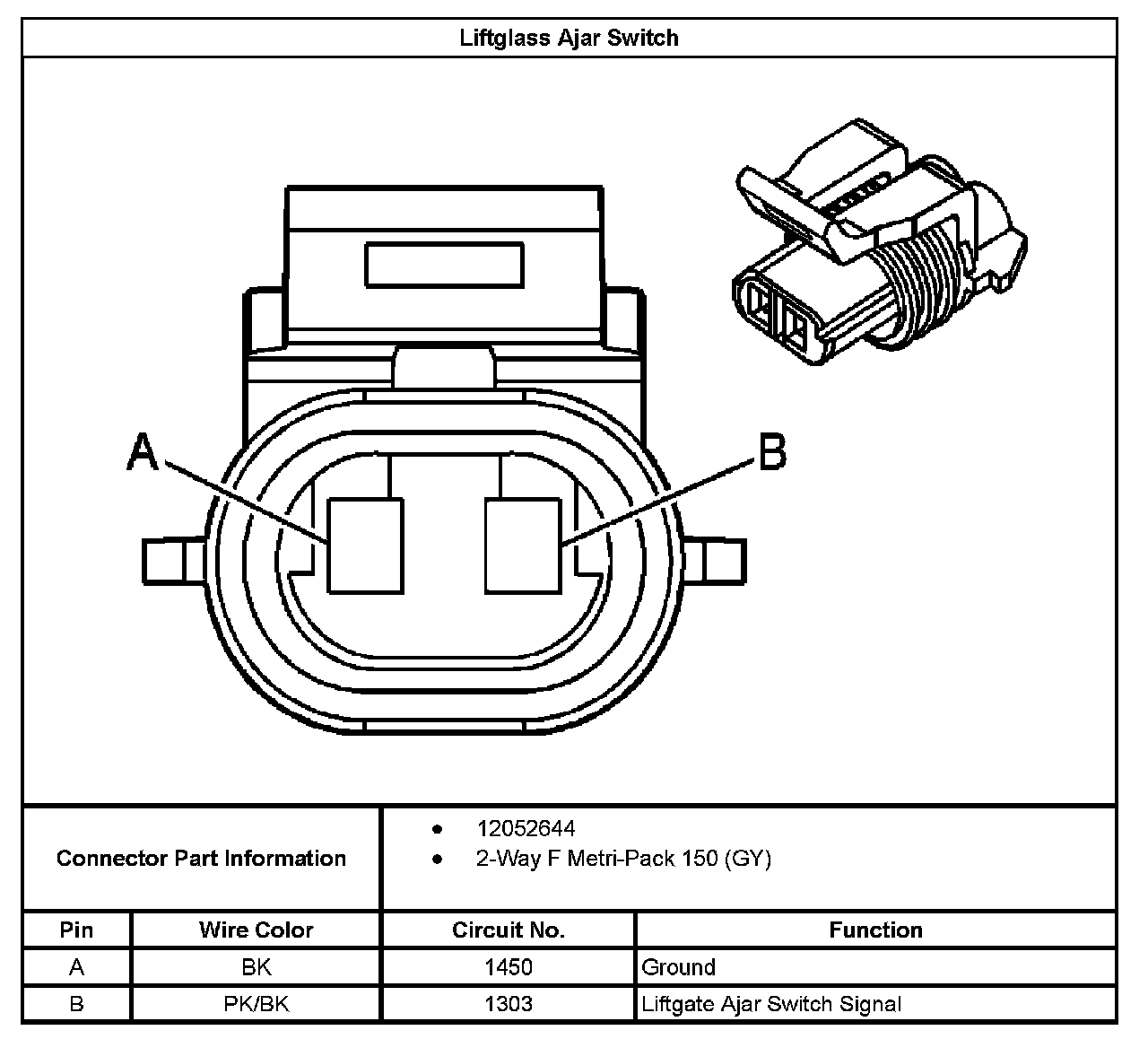

Liftglass Ajar Switch

Liftglass Ajar Switch:
