Transfer Case Output Shaft Seal Replacement - Front

Transfer Case Output Shaft Seal Replacement - Front

^ Tools Required
- J 8092 Driver Handle
- J 43484 Output Shaft Seal Installer

Removal Procedure





1. Remove the transfer case shield, if equipped.
2. Remove the front propeller shaft.

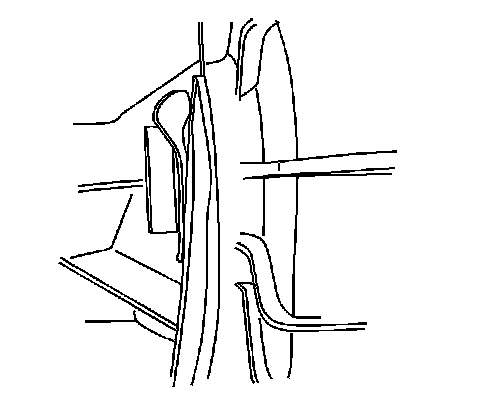

3. Insert a flat-tipped screwdriver into the inner race.
4. Pry the inner race back.

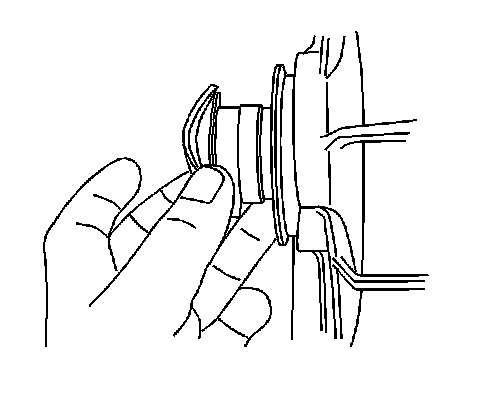

5. Insert a small pry bar into the inner race.





6. Remove the inner race from the seal.

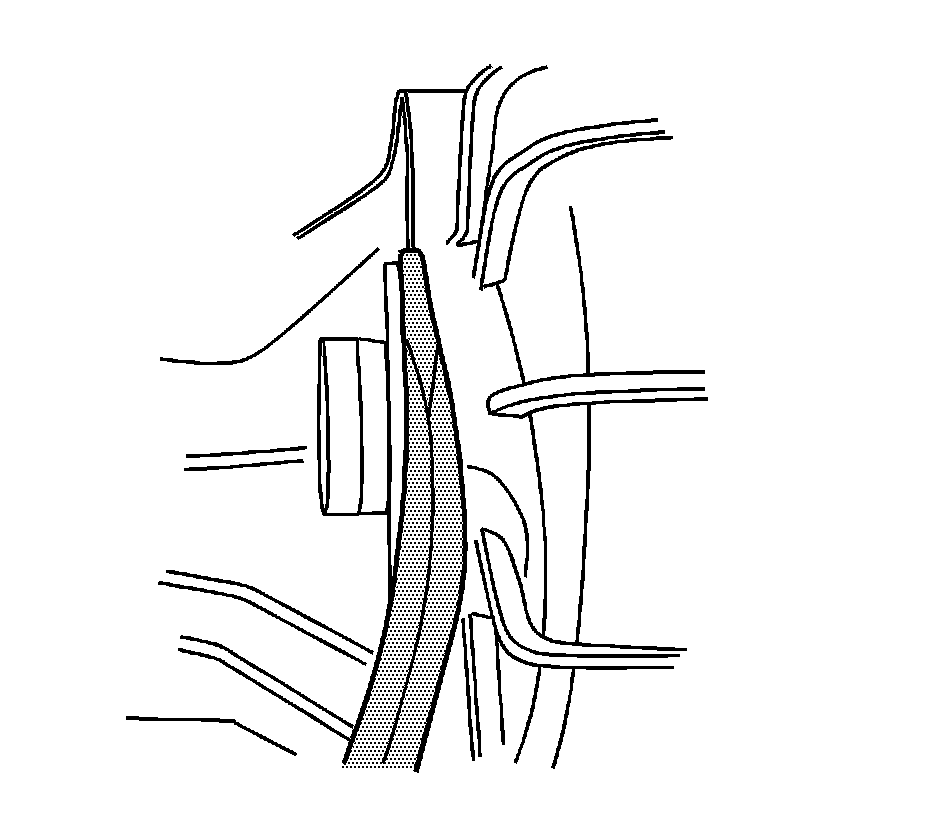

7. Insert a flat-tipped screwdriver or a small pry bar in the space between the outer race of the seal and transfer case.

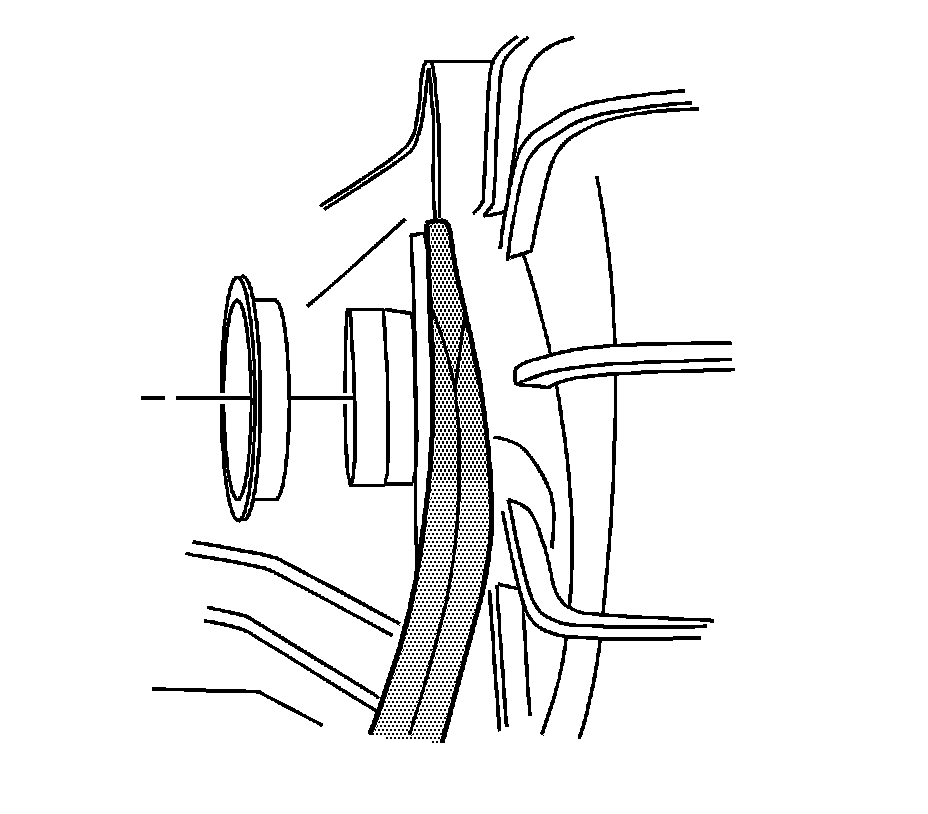

8. Remove the outer part of the seal.

Installation Procedure





1. Install the J 43484 (2) to the J 8092 (1).
2. Install the seal onto the J 43484 .
3. Using the J 43484 (2) and the J 8092 (1), install the seal.
4. Install the front propeller shaft.
5. Check the fluid level. Add fluid if necessary.
6. Install the transfer case shield, if equipped.
