Transfer Case Input Shaft Seal Replacement

Transfer Case Input Shaft Seal Replacement

^ Tools Required
- J 36825 Output Shaft Seal Remover
- J 23907 Slide Hammer with Bearing Adapter
- J 42738 Front Output Shaft Seal Installer

Removal Procedure





1. Remove the transfer case.

Important: It may be necessary to use a sharp punch in order to poke a hole into the seal prior to inserting J 36825 .

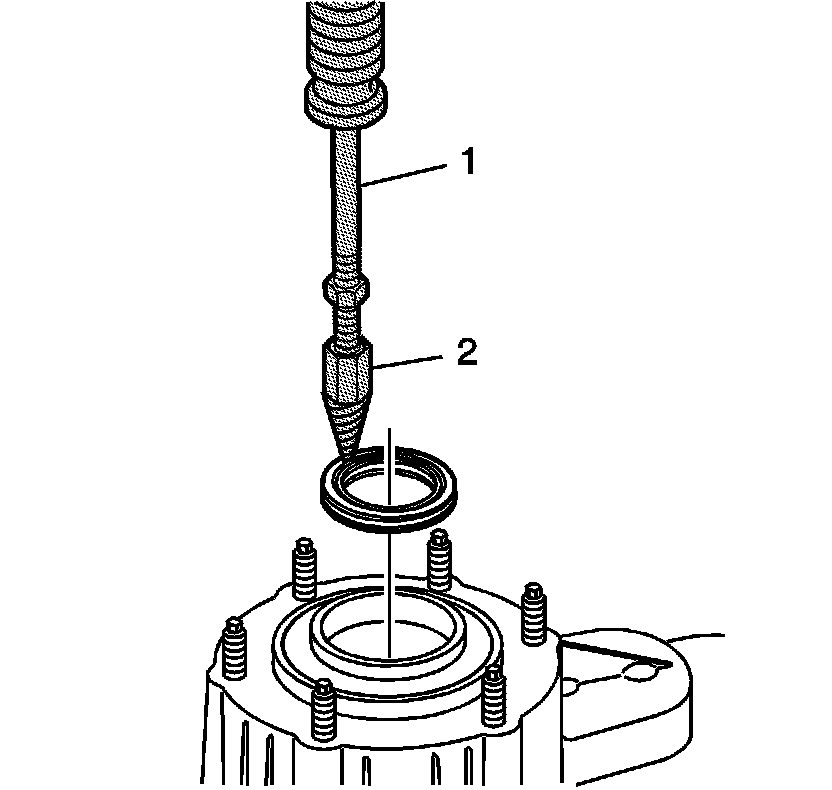

2. Using J 23907 (1), and J 36825 (2), remove the input seal.

Installation Procedure





1. Using J 42738 , install the input shaft seal.
2. Install the transfer case.
